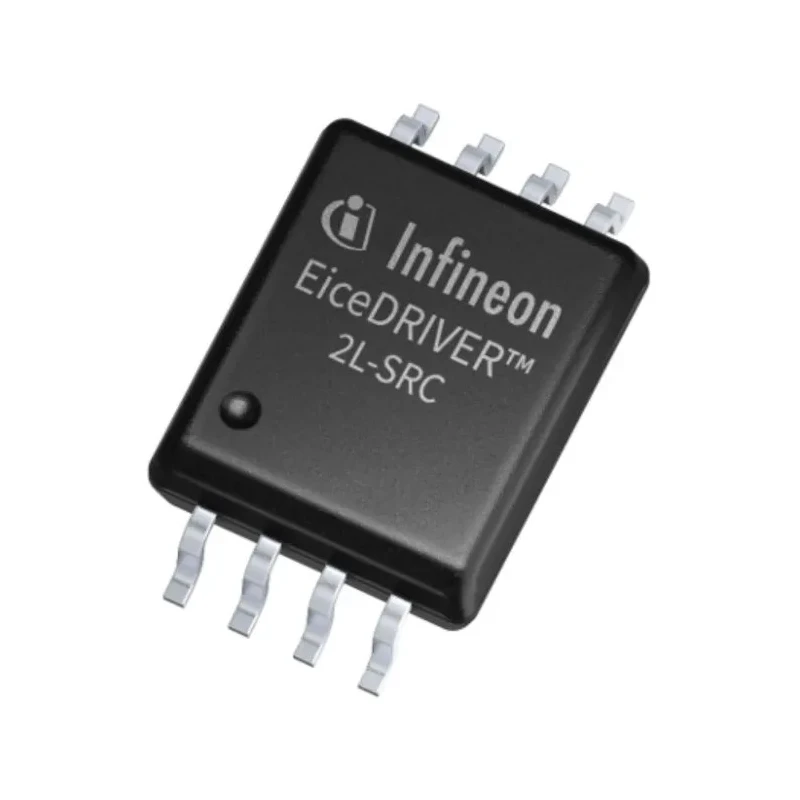

Infineon MOSFET Gate Driver 10 A, 8-Pin PG-DSO Package, 5-15V Supply, 1ED3250MC12HXUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 2.65mm |
| Length | 7.5mm |
| Model | 1ED3250MC12HXUMA1 |
| Width | 6.4mm |
| Mount Type | Surface |
| Series | 1ED3250MC12H |
| Output Current | 10A |
| Maximum Operating Temperature | 125°C |
| Package Type | PG-DSO |
| Minimum Operating Temperature | -40°C |
| Rise Time | 30ns |
| Pin Count | 8 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| Fall Time | 30ns |
| Driver Type | MOSFET |
Key Features
- Supports single channel isolated gate driving.
- Compatible with 3.3 V and 5 V input supply voltages.
- Features two level slew-rate control for EMI reduction.
- Thermal resistance of 104 K/W ensures effective heat dissipation.
- Compact 8-pin PG-DSO surface mount package.
- Wide operating temperature range from -40°C to 125°C.
- Fixed rise and fall times of 30 ns for fast switching.
- Suitable for power management IC and industrial applications.
Product Description
Infineon 1ED3250MC12HXUMA1 is a high-performance MOSFET gate driver IC designed to provide isolated driving for power MOSFET devices in electronic systems. It features a robust 10 A output current capability enclosed in an 8-pin PG-DSO surface-mount package, making it suitable for compact industrial applications.
The device operates within a supply voltage range of 5 V minimum to 15 V maximum and supports input signals at both 3.3 V and 5 V levels, allowing flexible integration in logic-level control circuits. It supports tight control over switching transitions with its two-level slew-rate control, reducing electromagnetic interference and enhancing system efficiency.
With a fall time and rise time of 30 ns, the gate driver ensures quick switching suitable for various power management applications. The component is engineered for harsh operating environments, with a temperature range from -40°C to 125°C and thermal resistance rating of 104 K/W, making it reliable in demanding industrial and electronic setups.
The compact physical size of this component - 7.5 mm length, 6.4 mm width, and 2.65 mm height - enables its usage in space-constrained printed circuit boards (PCBs), improving design flexibility.
This driver is not rated for automotive use but excels in industrial, manufacturing, power supply, and electronic equipment applications where precise MOSFET gate control is required.
Supports single channel isolated gate driving. Works with 3.3 V and 5 V input supply voltages. Two-level slew rate control for EMI and switching efficiency. Thermal resistance of 104 K/W for heat management. Compact surface mount PG-DSO 8-pin package.
Operating temperature range from -40°C to 125°C for industrial use. Rise and fall times optimized at 30 ns. Ideal for power management IC applications. Part of the 1ED3250MC12H series MOSFET Gate Drivers. Explore our extensive collection of advanced power management solutions and Infineon semiconductor devices at EnvMart for reliable industrial and electronics design.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This MOSFET gate driver has an output current capability of 10 A, making it suitable for driving power MOSFET devices in electronic systems.
It operates within a supply voltage range of 5 V to 15 V, allowing for flexible integration into various logic-level control circuits.
The rise time and fall time for this gate driver are both optimized at 30 ns, ensuring quick switching suitable for power management applications.
The dimensions of the PG-DSO package are 7.5 mm in length, 6.4 mm in width, and 2.65 mm in height, allowing for compact installation on PCBs.
The two-level slew-rate control reduces electromagnetic interference (EMI) and enhances switching efficiency by controlling the rate of voltage change during the switching transitions.
This model uses surface mounting, which is ideal for compact electronic designs and space-constrained applications.
No, this driver is not rated for automotive use; it is designed for industrial, manufacturing, power supply, and electronic equipment applications.
The thermal resistance rating is 104 K/W, which ensures effective heat dissipation during operation.
It supports input signals at both 3.3 V and 5 V levels, providing flexibility for integration in various control circuits.
It is suitable for power management IC applications and various industrial applications requiring precise MOSFET gate control.
