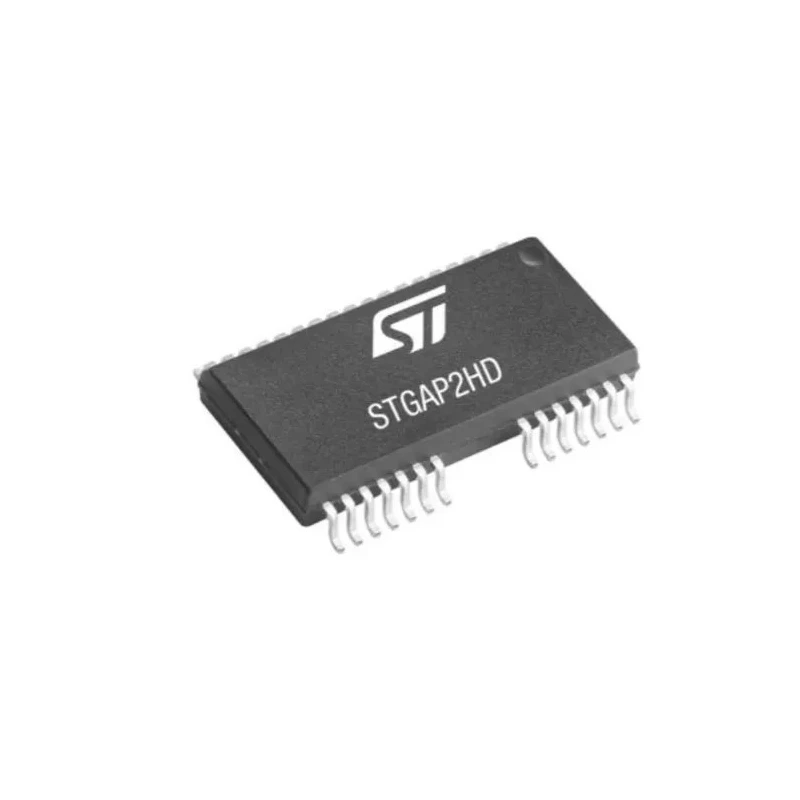

STMicroelectronics MOSFET Gate Driver 36-Pin SO-36W 4 A Output Current 3.1-5.5 V Supply Voltage STGAP2HDMTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | STGAP2HDMTR |
| Series | STGAP |
| Output Current | 4A |
| Maximum Operating Temperature | 125°C |
| Package Type | SO-36W |
| Minimum Operating Temperature | -40°C |
| Pin Count | 36 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3.1V |
| Fall Time | 30ns |
| Driver Type | MOSFET |
Key Features
- Dual channel MOSFET gate driver with galvanic isolation for safe operation.
- Supports rail-to-rail outputs for enhanced power efficiency.
- Independent turn-on and turn-off optimization with separated output pins.
- Includes Miller CLAMP to prevent gate spikes in half-bridge circuits.
- Integrates protection features such as undervoltage lockout and thermal shutdown.
- Configurable interlocking function for shoot-through prevention.
- Dedicated shutdown (SD) and brake pins improve system reliability.
- Standby mode reduces idle power consumption.
Product Description
STMicroelectronics STGAP2HDMTR MOSFET Gate Driver in 36-pin SO-36W package is designed for industrial mid to high power applications such as power conversion and motor driver inverters. It provides a galvanically isolated dual gate driver channel, capable of delivering 4 A output drive current with rail-to-rail outputs to ensure efficient switching performance.
The device enables independent optimization of turn-on and turn-off by separating output pins and utilizing dedicated gate resistors. The Miller CLAMP feature effectively suppresses gate voltage spikes during fast switching in half-bridge topologies, enhancing device robustness.
For system protection, the integrated undervoltage lockout (UVLO) and thermal shutdown functions simplify design and improve reliability. The configurable interlocking function prevents simultaneous high outputs, avoiding shoot-through conditions. This can be disabled to allow independent operation of channels when needed.
The inclusion of dedicated shutdown (SD) and brake inputs provide extra control flexibility. With a wide operating temperature span from -40°C to 125°C, the STGAP2HDMTR is suitable for harsh industrial environments. The device supports supply voltages ranging from 3.1 V to 5.5 V and accepts 3.3 V / 5 V TTL/CMOS inputs with built-in hysteresis for noise immunity.
Galvanic isolation ensures safe gate driving. 4 A drive current supports mid/high power applications. Miller CLAMP prevents switching-induced spikes. UVLO and thermal protection enhance system durability. Interlocking function prevents shoot-through faults.
SD and brake pins for additional control options. Standby mode reduces idle current consumption. Wide operating temperature range suitable for industrial use. 36-pin wide body SO package for ease of use in designs.
This MOSFET gate driver is ideal for industrial, manufacturing, and power management applications, including motor driver inverters and power conversion circuits. Its advanced protection and driving features meet the needs of demanding environments and robust control systems.
Explore more power management IC solutions and electronics components on EnvMart to find components tailored to your design needs.
Explore more products in our Gate Drivers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STGAP2HDMTR can deliver an output current of 4 A.
It supports a supply voltage range from 3.1 V to 5.5 V.
The maximum operating temperature is 125°C.
This model is packaged in a 36-pin SO-36W format.
Yes, it includes undervoltage lockout (UVLO) and thermal shutdown functions for system protection.
The minimum operating temperature is -40°C.
The Miller CLAMP feature helps suppress gate voltage spikes during fast switching in half-bridge topologies, enhancing robustness.
It accepts 3.3 V / 5 V TTL/CMOS inputs with built-in hysteresis for noise immunity.
The fall time is specified as 30 ns.
It includes dedicated shutdown (SD) and brake pins for enhanced control flexibility.
This gate driver is suitable for industrial mid to high power applications, including power conversion and motor driver inverters.
The configurable interlocking function prevents simultaneous high outputs, avoiding shoot-through conditions in circuits.
