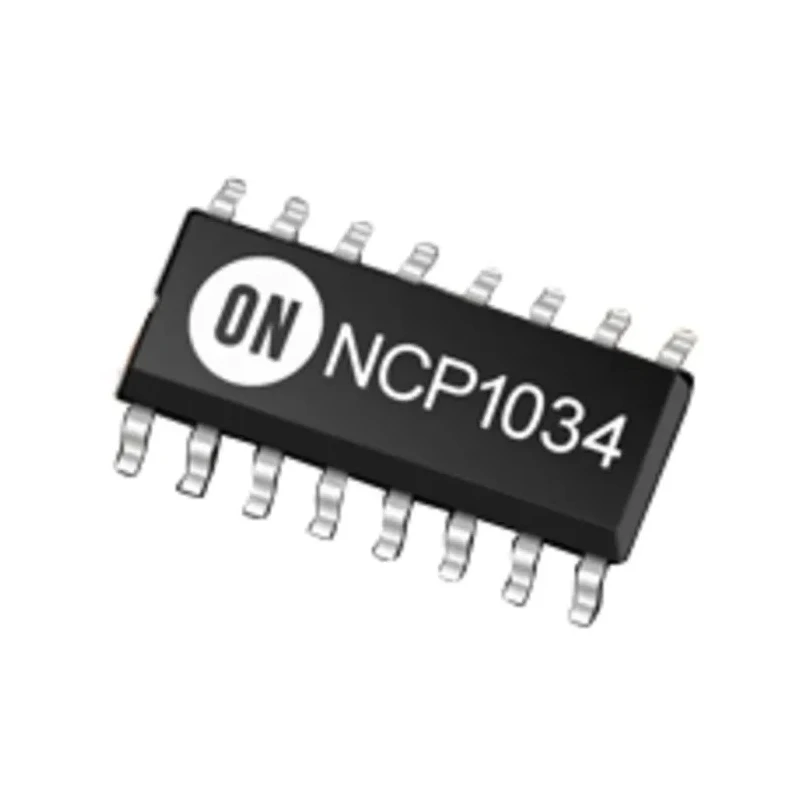

onsemi High Voltage PWM Controller Surface Mount 16-Pin 10V to 18V NCP1034DR2G
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Controllers onsemi NCP1034DR2G 16-Pin 10 V 18V RS Stock No |
| Brand | onsemi |
| Height | 1.75mm |
| Length | 10mm |
| Model | NCP1034DR2G |
| Mount Type | Surface |
| Series | NCP1034 |
| Maximum Operating Temperature | 125°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 10V |
Key Features
- Features a surface mount 16-pin package for compact PCB design.
- Designed to drive external N-MOSFETs with a programmable switching frequency up to 500 kHz.
- Supports input voltages up to 100V with synchronization capability.
- Delivers excellent system-level accuracy and efficiency across temperature variations.
- Optimized for efficiency, size, and system level filter simplification.
- Complies with RoHS environmental standards ensuring reduced hazardous substances.
- Operates reliably up to a maximum temperature of 125°C.
- Suitable for power management in electronic, industrial, automotive, and communication applications.
Product Description
onsemi NCP1034DR2G is a high voltage PWM controller provided in a surface mount 16-pin package, designed for high-performance synchronous Buck dc-dc converter applications. It supports a wide input voltage range from 10 V minimum supply to 18 V maximum supply, making it adaptable for various power supply designs.
This controller efficiently drives pairs of external N-MOSFETs by offering a programmable switching frequency up to 500 kHz. It also includes an external frequency synchronization feature that simplifies system-level filter design and enhances overall system performance. Its wide input voltage capability allows use with +48 V or +60 V inputs, providing flexibility for different power management needs.
The NCP1034DR2G ensures excellent system-level accuracy across temperature ranges and supports the use of larger size FETs for increased efficiency. With a maximum operating temperature of 125°C, it is suitable for demanding operating conditions in industrial, automotive, and consumer electronics.
Key highlights include RoHS compliance, advanced power management efficiency, and external sync pulse output for system tuning. These features make it an ideal choice for a variety of applications such as power management in communication devices, computing systems, and industrial automation.
Features a surface mount 16-pin package for compact PCB design. Programmable switching frequency up to 500 kHz allows system-level optimization. Wide input voltage acceptance up to 100 V for versatile applications. Supports external synchronization for filter design simplification.
Excellent efficiency with the ability to use larger MOSFETs. RoHS compliant to meet environmental standards. Reliable operation up to 125°C maximum temperature. Applicable across industrial, automotive, and communication power management systems.
This onsemi PWM controller is a powerful solution for engineers designing efficient, compact power systems. Explore more power management products and advance your projects with EnvMart.
Explore more products in our Voltage Controller category.
