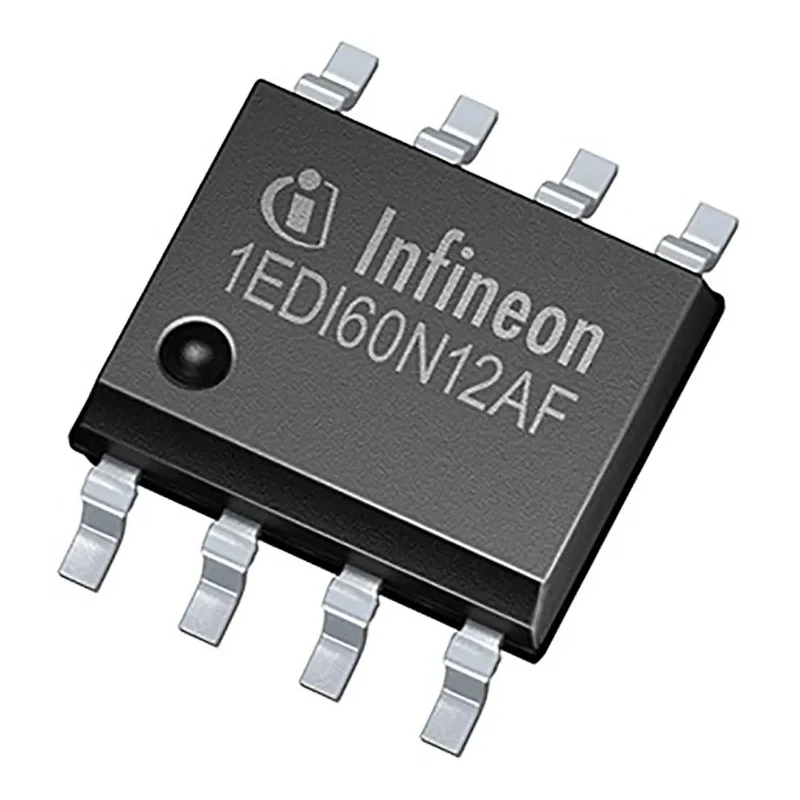

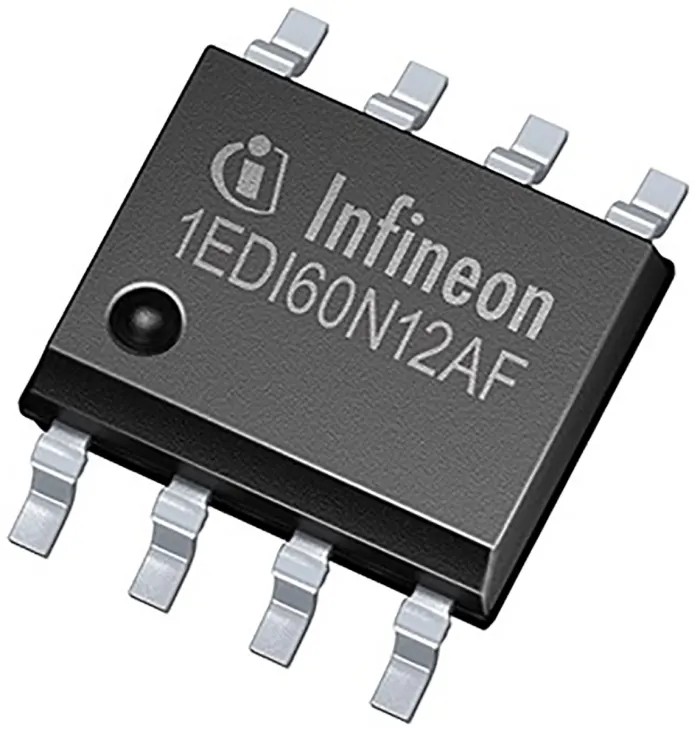

Infineon MOSFET Gate Driver Dual Output 10 A 17 V 8-Pin Surface Mount DSO Package 1EDI60N12AFXUMA1
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Infineon |
| Height | 1.65mm |
| Length | 5mm |
| Model | 1EDI60N12AFXUMA1 |
| Width | 4mm |
| Mount Type | Surface |
| Series | 1EDI60N12AF |
| Output Current | 10A |
| Maximum Operating Temperature | 125°C |
| Package Type | DSO |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Rise Time | 20ns |
| Pin Count | 8 |
| Minimum Supply Voltage | 17V |
| Number of Drivers | 2 |
| Fall Time | 19ns |
| Driver Type | MOSFET |
Key Features
- Supports two MOSFET drivers for efficient switching control.
- Delivers a maximum output current of 10 amperes.
- Fast switching speeds with 20 ns rise time and 19 ns fall time.
- Wide operating temperature range from -40°C to 125°C.
- Compact surface mount 8-pin DSO package measuring 5x4x1.65 mm.
- Ideal for AC motor and brushless DC motor drive applications.
- Input to output isolation and separate source and sink outputs.
- Operates at a supply voltage of 17 volts for versatile power systems.
Product Description
Infineon 1EDI60N12AFXUMA1 MOSFET Gate Driver is a dual driver device designed for efficient gate drive control of MOSFETs and IGBTs in power management applications. This device supports two outputs capable of delivering up to 10 amperes output current each, operating at a supply voltage of 17 V. Its compact 8-pin DSO surface mount package allows integration into compact industrial electronic boards.
The gate driver features fast switching times with a rise time of 20 ns and fall time of 19 ns, making it ideal for switching power supplies, motor control drives, and other applications requiring precise timing and power efficiency. It supports broad operating temperatures ranging from -40°C to 125°C, ensuring device durability in harsh environments.
This MOSFET and IGBT gate driver offers input to output isolation and separate source and sink outputs, enhancing operational safety and control flexibility. The device is commonly used in AC motor drives and brushless DC motor drives, providing robust switching control essential for industrial automation and manufacturing processes.
The product is specifically not certified to automotive standards and is manufactured in Indonesia, upholding strict quality criteria for reliable industrial usage. Its compact footprint with dimensions 5 mm (length) x 4 mm (width) x 1.65 mm (height) facilitates design in space-restricted electronics.
Dual MOSFET driver outputs capable of 10 A current drive. Fast switching with 20 ns rise time and 19 ns fall time. Wide operating temperature range from -40°C to 125°C. Input to output isolation and separate source and sink outputs for improved control.
Compact surface mount 8-pin DSO package measuring 5x4x1.65 mm. Designed for AC motor and brushless DC motor drive applications. Operates at 17 V supply voltage suitable for various industrial systems. Manufactured in Indonesia ensuring quality and reliability.
Not compliant with automotive standards.
This MOSFET gate driver from Infineon is a critical component in power management IC applications including industrial electronics, HVAC systems, manufacturing automation, and energy systems. For further selection of power management ICs and Gate Drivers, please explore EnvMart's comprehensive catalog to find matching components that fit your design and industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum output current of 10 amperes for each of its two outputs.
It operates at a supply voltage of 17 volts, making it suitable for various industrial power systems.
The rise time is 20 nanoseconds and the fall time is 19 nanoseconds, allowing for fast switching speeds.
The dimensions of this model are 5 mm in length, 4 mm in width, and 1.65 mm in height.
This device features two outputs, allowing for dual MOSFET driving capabilities.
It comes in a compact 8-pin DSO surface mount package, facilitating integration into space-restricted designs.
No, this MOSFET gate driver is specifically not certified to automotive standards.
It is commonly used in AC motor drives and brushless DC motor drives, providing essential switching control for industrial automation.
It features input to output isolation and separate source and sink outputs for improved control and safety.
This model is manufactured in Indonesia, adhering to strict quality criteria for reliable industrial usage.
This device is classified as a MOSFET driver, designed specifically for efficient gate drive control.
