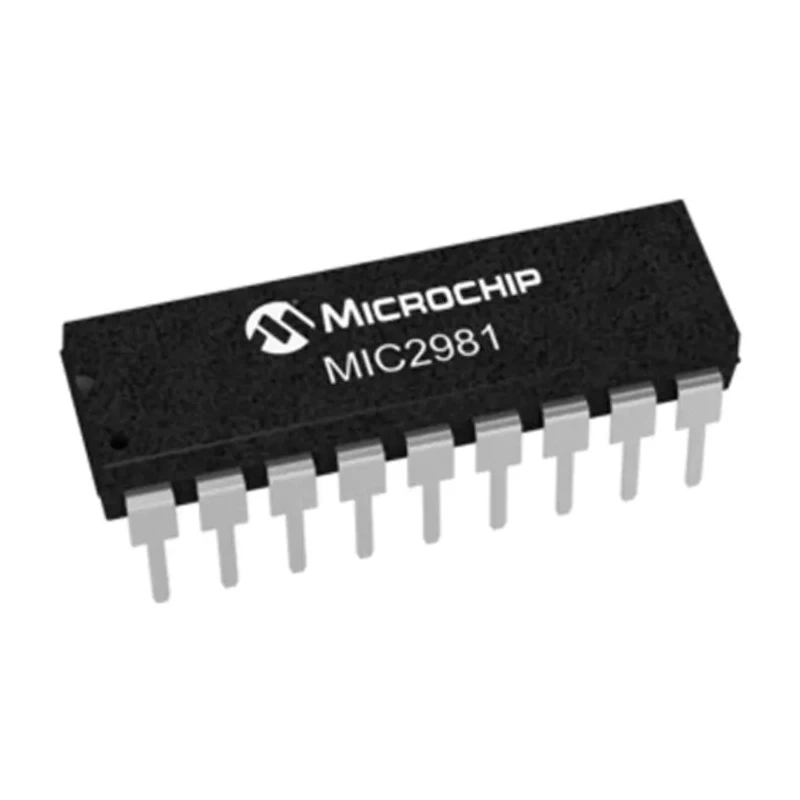

Microchip General Purpose Gate Driver 350 mA 18-Pin PDIP 5 to 50V MIC2981/82YN
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 3.43mm |
| Length | 23.37mm |
| Model | MIC2981/82YN |
| Width | 6.43mm |
| Mount Type | Through Hole |
| Series | MIC2981 |
| Output Current | 350mA |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 8 |
| Pin Count | 18 |
| Maximum Supply Voltage | 50V |
| Minimum Supply Voltage | 5V |
| Driver Type | General Purpose |
| Microchip MIC2981/82YN, General Purpose, 350 mA, 5 to 50V 18-Pin, PDIPBrand | Microchip |
Key Features
- This gate driver integrates 8 outputs for efficient high-power transistor control.
- Equipped with low power CMOS latches to reduce power consumption.
- Provides output transient protection diodes for enhanced reliability.
- Through-hole mount PDIP package ensures easy PCB installation.
- Operates reliably in temperature range from -40°C to 85°C.
- Ideal for switching and driving high-power loads in industrial electronics.
- Suitable for applications requiring power latched driver functionality and hot swap controllers.
- Compact design with dimensions 23.37 mm length, 6.43 mm width, and 3.43 mm height.
Product Description
Microchip MIC2981/82YN General Purpose Gate Driver is designed to provide high-voltage, high-current source driver functionality. Supporting an output current of 350 mA with 8 outputs, this IC is particularly suitable for driving multiple transistors in power management applications.
Housed in an 18-pin Plastic Dual In-line Package (PDIP), this device offers through-hole mounting for straightforward PCB implementation. The input voltage range from 5V to 50V provides flexibility for diverse electronic systems. Its built-in low power CMOS latches reduce the overall system power consumption, making it efficient for continuous operations.
The driver includes output transient protection diodes to safeguard connected components against voltage spikes, increasing the device's robustness in demanding industrial environments.
Operating across a temperature range from -40°C to 85°C, the MIC2981/82YN maintains consistent performance suitable for industrial, HVAC, manufacturing, and power control systems.
Key features include high-voltage transistor driving capability, low power consumption, and reliable output protection. It is ideal for hot swap and power controller applications, enhancing durability and safety in electronic designs.
This gate driver integrates 8 outputs for efficient high-power transistor control. Equipped with low power CMOS latches to reduce power consumption. Provides output transient protection diodes for enhanced reliability. Through-hole mount PDIP package ensures easy PCB installation.
Operates reliably in temperature range from -40°C to 85°C. Ideal for switching and driving high-power loads in industrial electronics. Suitable for applications requiring power latched driver functionality and hot swap controllers.
Compact design with dimensions 23.37 mm length, 6.43 mm width, and 3.43 mm height. Manufactured in Thailand ensuring quality control standards. Explore the extensive catalog of power management ICs and Gate Drivers on EnvMart for industrial grade electronics components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output current of this gate driver is 350 mA, making it suitable for driving multiple transistors in power management applications.
The MIC2981/82YN operates within a voltage range of 5V to 50V, providing flexibility for various electronic systems.
This gate driver features 8 outputs, allowing efficient control of high-power transistors.
It operates reliably in a temperature range from -40°C to 85°C, suitable for industrial environments.
The MIC2981/82YN is housed in an 18-pin Plastic Dual In-line Package (PDIP), designed for through-hole mounting.
Yes, it includes output transient protection diodes to safeguard connected components against voltage spikes, enhancing reliability.
The dimensions of the MIC2981/82YN are 23.37 mm in length, 6.43 mm in width, and 3.43 mm in height.
This model is classified as a general-purpose gate driver, suitable for various applications requiring high-voltage, high-current control.
It is ideal for switching and driving high-power loads in industrial electronics, as well as for hot swap and power controller applications.
This gate driver is manufactured in Thailand, ensuring adherence to quality control standards.
The low power CMOS latches reduce overall system power consumption, enhancing efficiency during continuous operations.
The maximum supply voltage for the MIC2981/82YN is 50V, allowing it to handle high-voltage applications effectively.
