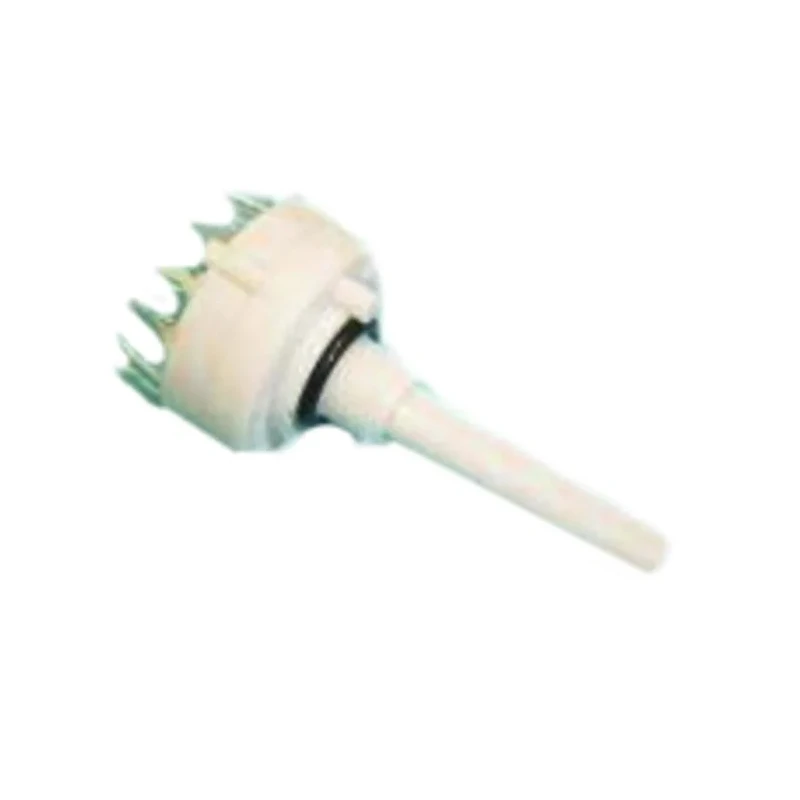

Lorlin IP67 Sealed Rotary Switch PCB Terminal 90° Angle of Throw Black Actuator CKS1060
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 27.5mm |
| Brand | Lorlin |
| Model | CKS1060 |
| Depth | 27.5mm |
| IP Rating | IP67 |
| Width | 26.2mm |
| Mount Type | PCB |
| Housing Material | Polyamide |
| Series | CK |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | 30°C |
| Terminal type | PCB Terminal |
| Maximum dc Voltage | 250V dc |
| Standards/Approvals | RoHS |
| Actuator Colour | Black |
| Mechanical Life | 10000Cycles |
| Maximum AC Voltage | 250V ac |
| Angle of Throw | 90 ° |
Key Features
- The switch features a 90° angle of throw for precise position control.
- Body constructed from durable polyamide housing ensures longevity.
- Supports up to 4 poles per switch with a maximum of 12 positions.
- Mounted via PCB terminals suitable for easy integration into PCBs.
- Mechanical life rated for 10,000 cycles ensuring operational durability.
- Black actuator color with dampened indexing and reduced shaft play for smooth operation.
- Operates reliably between -30°C and 85°C temperature range.
- Front panel sealed to IP66 and IP67 standards for protection from water jets and temporary immersion.
Product Description
Lorlin CKS1060 Rotary Switch with PCB Terminal is a reliable electrical component designed for signal and control applications. It features a polyamide housing measuring 27.5mm diameter and 26.2mm width with depth of 27.5mm.
This rotary switch supports a maximum AC voltage of 250V and maximum DC voltage of 250V, suitable for various industrial and electronic circuits. The black actuator provides an optimal 90° angle of throw with dampened indexing and reduced axial play, delivering smooth and precise switching action.
The switch is suitable for mounting directly on printed circuit boards (PCB) using solder or PCB terminals, facilitating easy integration. The product boasts a mechanical life of 10,000 operational cycles, making it durable for repetitive switching operations.
Lorlin’s CKS series switch is front panel sealed to IP66 and IP67 standards, providing protection from powerful water jets and temporary immersion up to 1 meter depth when ancillaries are fitted, making it ideal for harsh environmental conditions in automation, electrical, and industrial applications.
The operating temperature range from -30°C to 85°C ensures functionality in a wide variety of environments. This product is manufactured in the United Kingdom under RoHS compliance, confirming adherence to environmental and safety standards.
The switch's polyamide housing material contributes to its robust electrical insulation and durability. The black actuator color and 90° throw angle allow for clear tactile feedback and precise control. IP67 rating ensures front panel sealing against dust ingress and water immersion, suitable for industrial and outdoor use.
Dampened indexing improves user experience by reducing mechanical noise and wear. The range of up to 4 poles and 12 positions provides flexible configuration options for complex circuits.
This Lorlin Rotary Switch is widely applicable in electrical and automation systems, providing a cost-effective and high-quality solution for multi-pole switching needs. Its PCB mounting and sealed design make it suitable for laboratory equipment, manufacturing machinery, HVAC systems, and other industrial applications.
Explore more from the Electronics & Electricals category for compatible switches and components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum AC voltage of 250V and a maximum DC voltage of 250V, making it suitable for various industrial and electronic circuits.
It features a 90° angle of throw, providing precise position control for switching applications.
The switch operates reliably within a temperature range of -30°C to 85°C, suitable for diverse environments.
The housing is constructed from durable polyamide, which contributes to its electrical insulation and robustness.
This rotary switch supports up to 4 poles and a maximum of 12 positions, allowing for flexible configuration in circuits.
It has a mechanical life rated for 10,000 cycles, ensuring operational durability for repetitive switching operations.
It is designed for mounting via PCB terminals, facilitating easy integration into printed circuit boards.
The switch has a diameter of 27.5mm, a width of 26.2mm, and a depth of 27.5mm.
The CKS1060 is front panel sealed to IP66 and IP67 standards, providing protection from water jets and temporary immersion.
Yes, it is RoHS compliant, confirming adherence to environmental and safety standards.
The actuator is black, providing clear tactile feedback and precise control during operation.
This rotary switch is manufactured in the United Kingdom.
