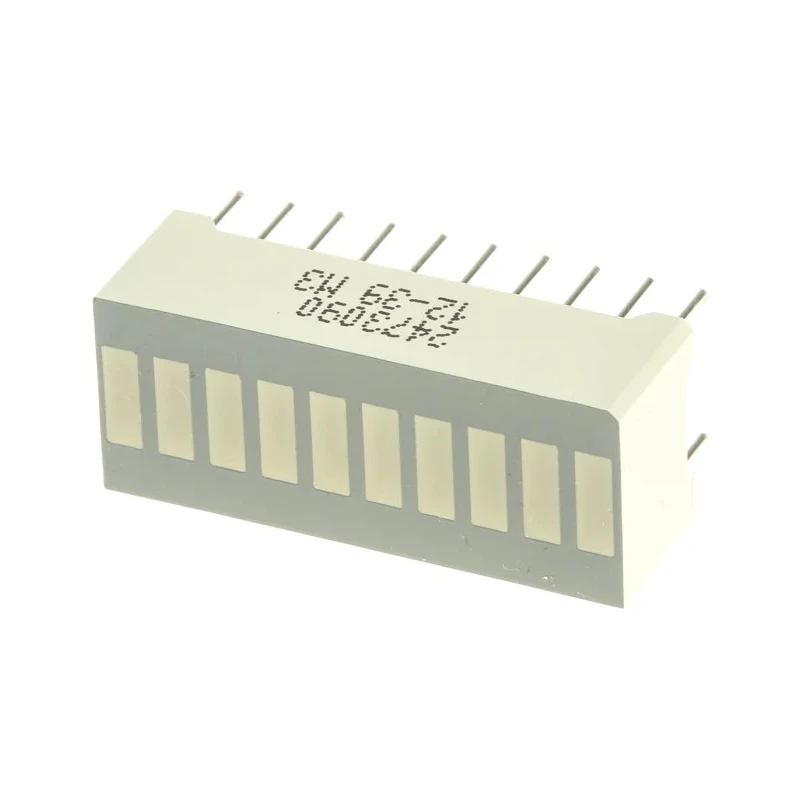

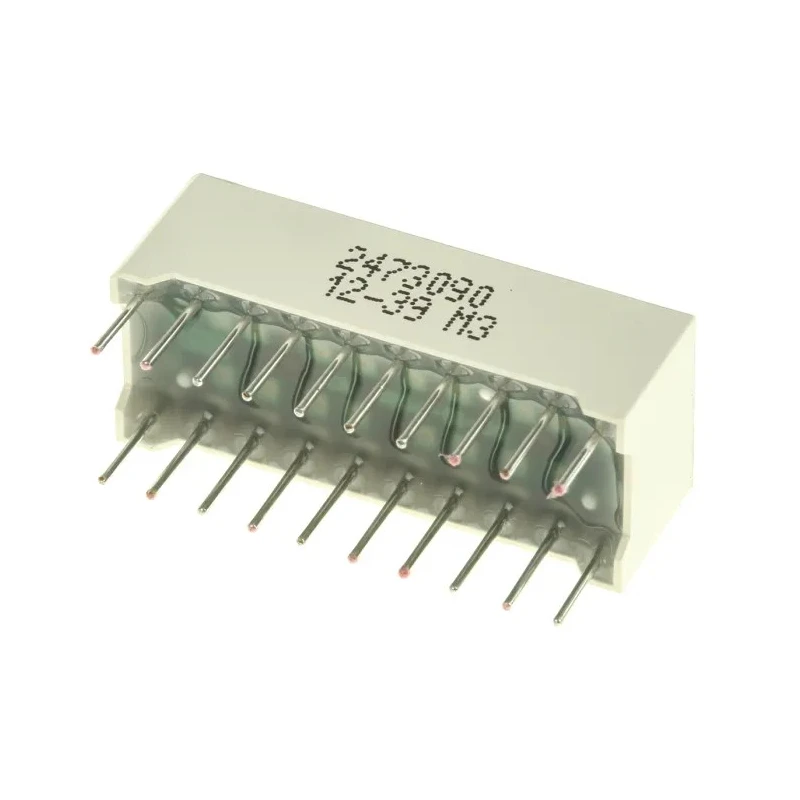

Kingbright 10 Segment Green Light Bar LED Display 5.08 mm Character Height DC-10SGWA

Kingbright DC-10SGWA is a 10 segment green light bar LED display designed for electronic applications requiring precise and visible level indicators. With a character height of 5.08 mm, the display provides clear visual feedback and is ideal for use in industrial, laboratory, and electronic equipment.

The display bar graph array features a grey face with white segments, enhancing on/off contrast for better readability in various lighting conditions. It is built for through-hole mounting, ensuring reliable mechanical and electrical connections on printed circuit boards.

Operating parameters include a forward voltage of 2 V and a forward current of 25 mA, with a power dissipation of 75 mW. The display emits green light with a dominant wavelength of 565 nm and a luminous intensity of 21 mcd, making it suitable for indicator uses where visual prominence is needed.

Designed with ruggedness in mind, this LED display is end stackable, allowing for easy expansion in bar graph assembly configurations. It operates reliably across a wide temperature range from -40°C to 85°C, suitable for various industrial and commercial environments.

The 10 segment bar graph array suits numerous applications such as audio level meters, battery indicators, and process controls. Its RoHS compliance confirms adherence to environmental standards, ensuring safety and regulatory conformity.

The compact external dimensions (25.4 x 10.2 x 8 mm) allow flexible integration into tight electronic assemblies. Through hole mount type facilitates soldered, secure installation on PCBs. Its mechanical durability enhances long-term reliability in industrial settings.
