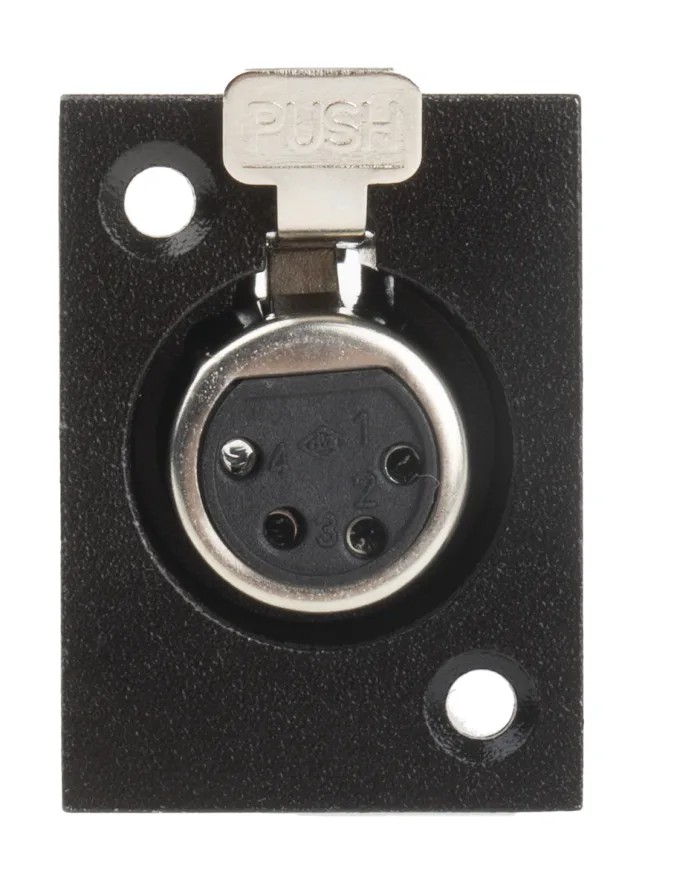

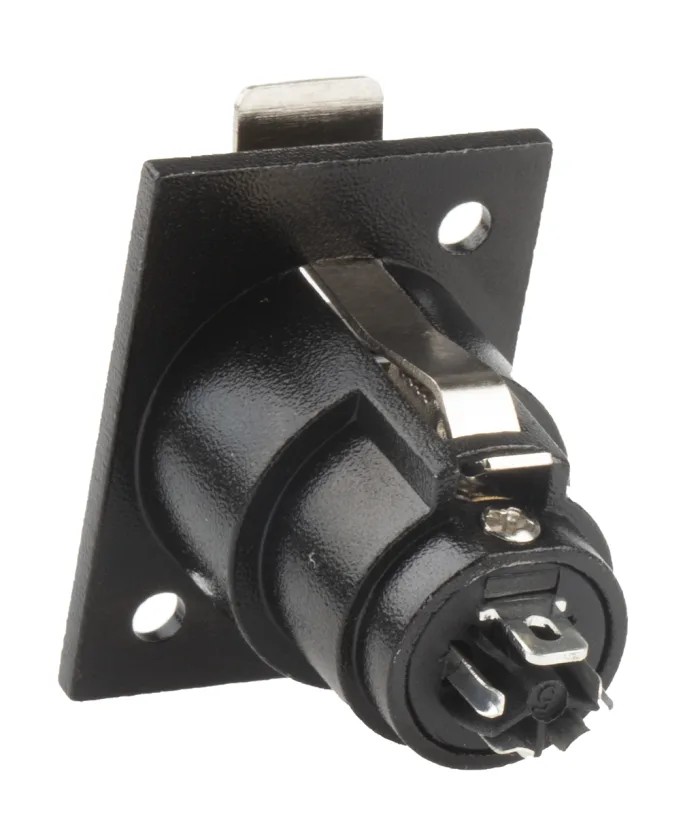

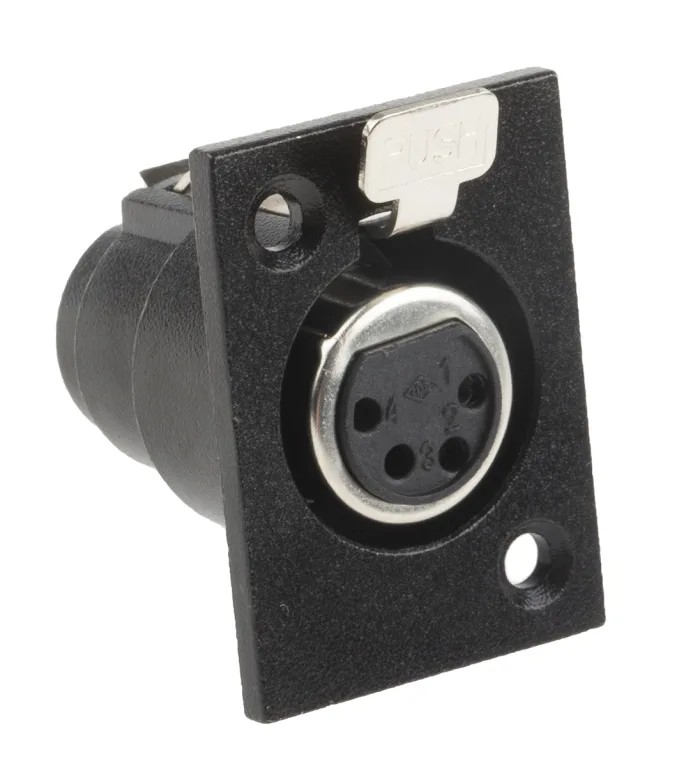

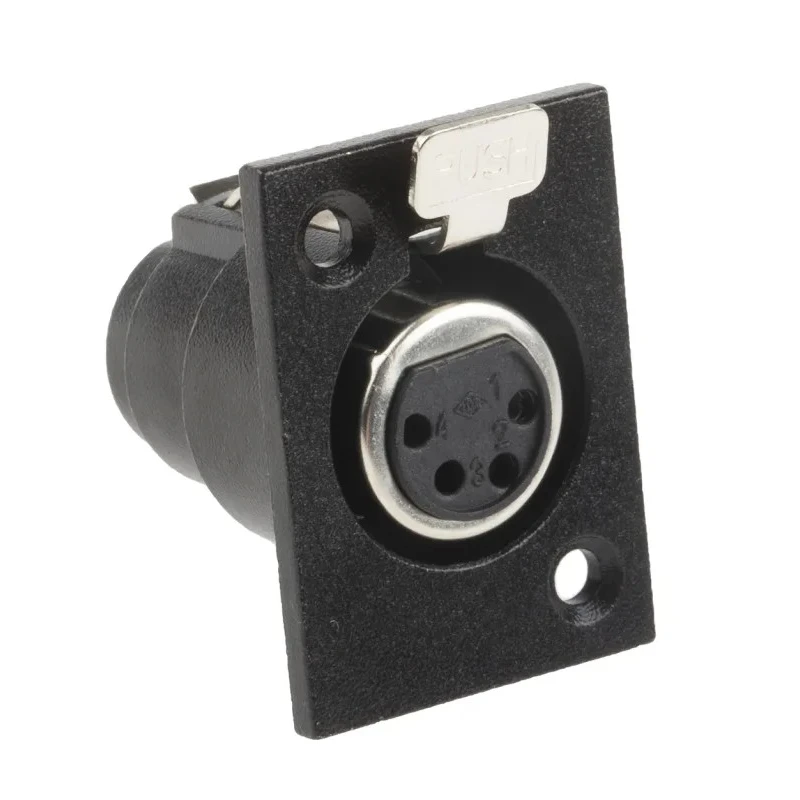

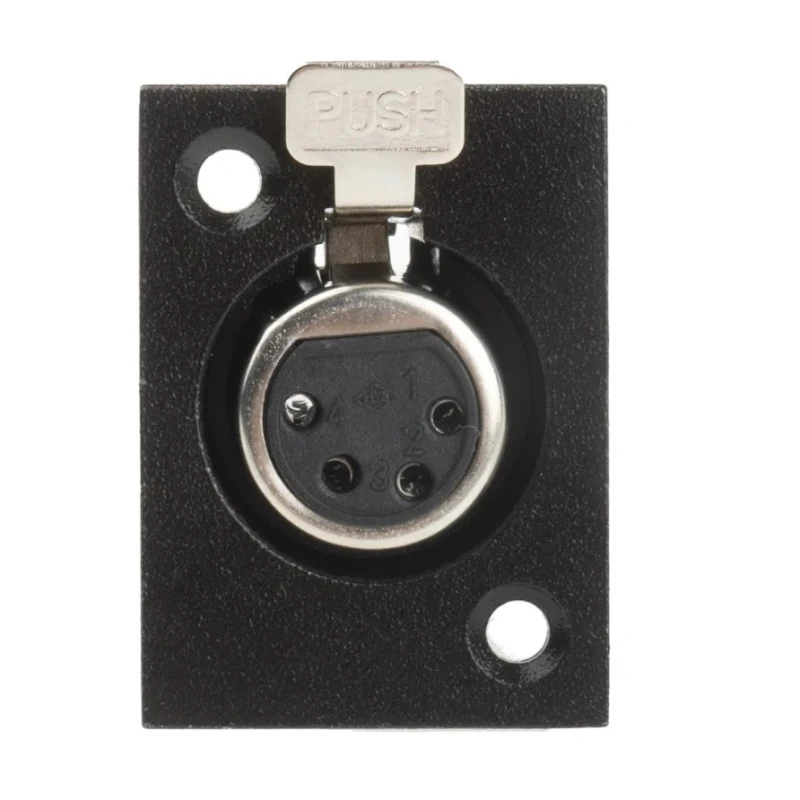

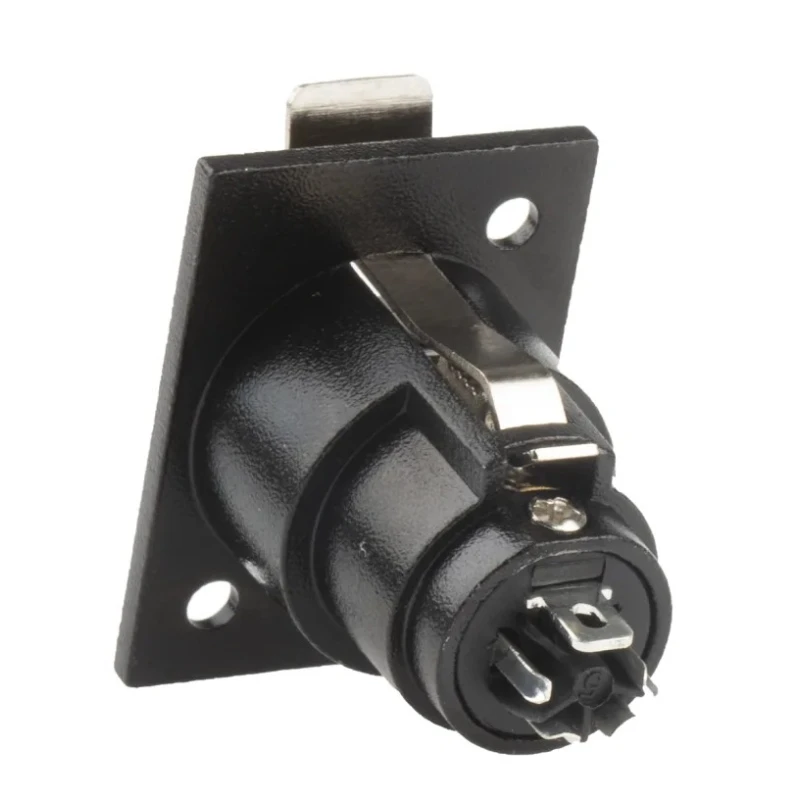

RS PRO Panel XLR Connector, Straight Female, 4 Way, Silver Plating 457-954

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Panel XLR Connector, Straight Female, 4 Way, Silver Plating 457-954

Name: RS PRO Panel XLR Connector, Straight Female, 4 Way, Silver Plating 457-954
Brand: RS PRO
SKU: 138177
Price: 13.41 USD
Availability: InStock



Category XLR Connector Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Colour	Black
Orientation	Straight
Model	457-954
Mount Type	Panel
Housing Material	Zinc
Contact Material	Brass
Termination Type	Solder
Contact Plating	Silver
Number of Contacts	4
Contact Gender	Female
Connector Gender	Female
RS PRO Panel XLR Connector, Straight Female, 4 Way, Silver PlatingBrand	RS PRO

Key Features

Precision manufactured with zinc die-cast bodies for durability.
Silver-plated, solid brass turned contacts ensure excellent conductivity.
Solder termination type with solder tags that enhance connection reliability.
Straight orientation and female connector gender designed for professional audio/video applications.
Compatible with cable diameters ranging from 2.8mm to 8.0mm with effective cable grip.
Incorporates a squeeze-release clip for quick unplugging.
Housing material is zinc with black color finish for robust protection.
Contact material is brass, plated with silver for corrosion resistance.

Product Description

RS PRO 457-954 Panel XLR Connector is a high-quality straight female connector featuring 4 contacts and silver plating. Designed for panel mounting, this connector is manufactured with precision zinc die-cast bodies and silver-plated solid brass turned contacts, making it suitable for professional audio and video use cases.

The metal backshell provides robustness and protection. The connector includes a squeeze release clip mechanism that allows for quick and easy unplugging by simply pushing down the device. Assembly and wiring are simplified by its well-designed collate arrangement that accommodates cable diameters from 2.8mm to 8.0mm, providing an effective cable grip for secure fitting.

Termination of the connector is solder type, with solder tags incorporating holes to improve retention and enhance the reliability of connections. The housing is made of zinc with a black finish, and the contact parts are solid brass with silver plating to ensure durability and excellent electrical conductivity.

This connector complies with no specific standards or approvals and is not intended for mains electrical use, rather for multipole audio/video connections in industrial, manufacturing, laboratory, commercial, and HVAC audio/video equipment applications.

Precision zinc die-cast body construction for strength. Silver-plated solid brass contacts enhance signal integrity. Panel mount with straight orientation for easy installation. Solder termination with enhanced connection reliability.

Effective cable grip for cable diameters 2.8mm to 8.0mm. Squeeze release clip for quick disconnect. Black zinc housing provides protection and aesthetics. Female connector gender designed for professional AV use. Not to be used as mains connectors.

Manufactured in China.

This RS PRO connector is ideal for use in professional audio/video environments, electronics manufacturing, and equipment repair. Browse EnvMart for additional RS PRO connectors and related electronics components.
