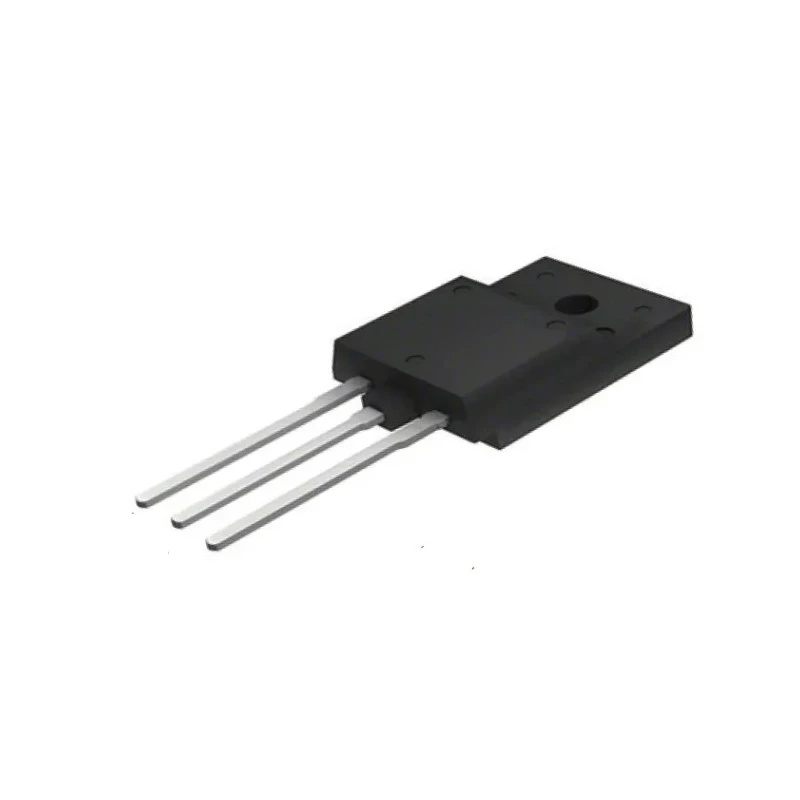

Vishay 600 V 30 A General Purpose Rectifier & Schottky Diode Surface Mount TO-3PF VS-CZH6106FP-M3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-CZH6106FP-M3 |
| Mount Type | Surface |
| Series | FRED Pt |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-3PF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | General Purpose |
| Peak Non-Repetitive Forward Surge Current Ifsm | 280A |
| Maximum Forward Voltage Vf | 1.4V |
Key Features
- Features hyperfast soft recovery time optimizing forward voltage drop and switching losses.
- Includes planar structure and platinum doped lifetime control for ruggedness and reliability.
- Designed for PFC boost stage in AC/DC switch mode power supplies and inverters.
- Maximum operating junction temperature of 175 °C with low leakage current.
- Fully isolated TO-3PF package offering 2500 VRMS insulation voltage.
- Meets automotive AEC-Q101 and RoHS compliance standards.
- Peak non-repetitive forward surge current rating of 280 A ensures robust transient performance.
- Ideal for use in industrial motor drives, UPS systems, air conditioning, and high-frequency welding equipment.
Product Description
The Vishay VS-CZH6106FP-M3 rectifier & schottky diode is a high-performance component designed for general purpose switching applications requiring 600 V peak reverse voltage and 30 A continuous forward current.
Featuring a planar construction and platinum doped lifetime control, this diode delivers optimized forward voltage drop and hyperfast soft recovery times, reducing switching losses and improving efficiency in power systems.
The device is packaged in a fully isolated TO-3PF package rated for 2500 VRMS insulation, ensuring reliable operation in harsh industrial environments.
Engineered for the power factor correction boost stage in AC/DC sections of switch mode power supplies and inverters, it supports applications such as motor drives, uninterruptible power supplies, air conditioning systems, and high-frequency welding.
This diode operates reliably across a wide temperature range from -55 °C to 175 °C junction temperature, maintaining low leakage current and superior ruggedness. It complies with automotive standard AEC-Q101 and is RoHS compliant, making it suitable for demanding automotive and industrial applications requiring high reliability.
Hyperfast soft recovery time minimizes switching losses. Low forward voltage drop improves efficiency. Fully isolated TO-3PF package for high insulation. High surge current capability ensures robustness. Automotive and RoHS compliant standards.
Suits industrial, laboratory, HVAC, manufacturing, and power supply applications. The Vishay VS-CZH6106FP-M3 is an ideal choice for engineers seeking a reliable general purpose rectifier and Schottky Diode solution for demanding electronic component needs.
Explore more high-quality semiconductor products in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak reverse voltage for the Vishay VS-CZH6106FP-M3 is 600 V.
This model has a continuous forward current rating of 30 A.
The maximum operating temperature for this diode is 175 °C.
The minimum operating temperature for the VS-CZH6106FP-M3 is -55 °C.
It is packaged in a fully isolated TO-3PF package.
The peak non-repetitive forward surge current rating is 280 A.
This diode complies with automotive standard AEC-Q101 and is RoHS compliant.
The maximum forward voltage drop for the VS-CZH6106FP-M3 is 1.4 V.
It is suitable for applications such as industrial motor drives, UPS systems, air conditioning, and high-frequency welding equipment.
The diode configuration is a 2x common cathode pair.
Key features include hyperfast soft recovery time, optimized forward voltage drop, and ruggedness due to platinum doped lifetime control.
The country of origin for this diode is India.
