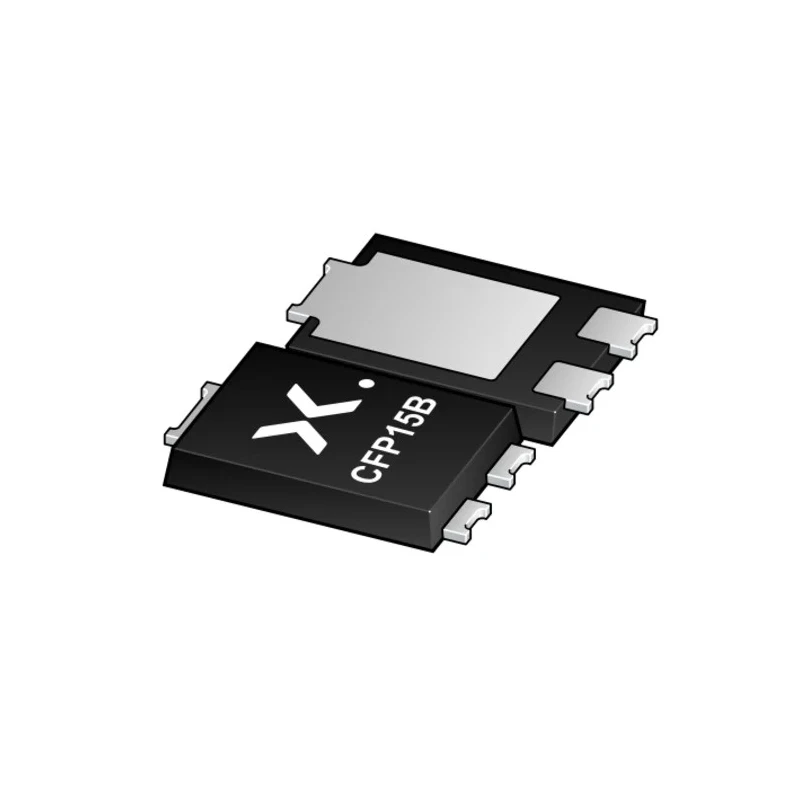

Nexperia 200 V 2 A Rectifier & Schottky Diode 3-Pin CFP15B PNE20040CPE-QZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.95mm |
| Model | PNE20040CPE-QZ |
| Mount Type | Surface |
| Series | PNE20040CPE-Q |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15B |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | IEC60134, AEC-Q101 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Dual Common Cathode |
| Peak Reverse Current Ir | 20μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 980mV |
| Peak Reverse Recovery Time trr | 25ns |
Key Features
- The diode features a dual common cathode configuration with 3 pins for easy mounting.
- The package type is CFP15B with a low height of 0.95 mm to support compact designs.
- It has a maximum forward voltage of 980 mV and peak non-repetitive forward surge current of 100 A.
- The diode operates over a wide temperature range from -55°C to 175°C and has a peak reverse recovery time of 25 ns.
- Designed with Pt doped lifetime control and clip-bond technology for high power capability.
- It complies with IEC60134 and AEC-Q101 automotive standards ensuring reliability in automotive and industrial applications.
- Suitable for general-purpose rectification, hyperfast switching, solenoid control, piezo injection, and freewheeling applications.
Product Description
Nexperia PNE20040CPE-QZ Rectifier & Schottky Diode 3-Pin CFP15B is a high power density surface-mount semiconductor designed for fast switching and efficient rectification in electronic circuits operating at voltages up to 200 V and currents up to 2 A.
Encapsulated in a CFP15B (SOT1289B) plastic package with low profile height of 0.95 mm, it features a dual common cathode diode configuration ensuring effective power handling and thermal management through clip-bond technology.
This diode demonstrates excellent performance with a maximum forward voltage drop of 980 mV and a peak non-repetitive forward surge current of 100 A, allowing it to withstand surge conditions effectively without damage.
The device is engineered for operation within a wide temperature range from -55°C to 175°C, making it suitable for demanding environments and automotive applications conforming to AEC-Q101 standards.
Its short peak reverse recovery time of 25 ns supports hyperfast switching applications, reducing power loss and electromagnetic interference in circuits.
Common uses include general-purpose rectification, solenoid control, piezo injection suppression, and freewheeling diode roles in power electronics, automotive electronics, and industrial controls.
The diode has low inductance and Pt doped lifetime control to enhance switching speed and power efficiency. Packaged in a power and flat lead SMD plastic case suitable for high-efficiency PCB assembly. Complies with IEC60134 and AEC-Q101 standards for global quality assurance.
This product is ideal for industrial, automotive, and laboratory applications requiring reliable, high-quality rectification and switching performance. Explore more semiconductor diodes and rectifiers in EnvMart’s extensive Electronics & Electricals catalog.
Explore more products in our Schottky Diodes & Rectifiers category.
