| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PDTC143XQBZ |
| Mount Type | Surface |
| Series | PDTC143X |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | 50V |
| Minimum DC Current Gain hFE | 50 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 7V |
| Maximum Collector Base Voltage VCBO | 50V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | 100mA |
| Transistor Configuration | NPN |
| Maximum Transition Frequency ft | 230MHz |

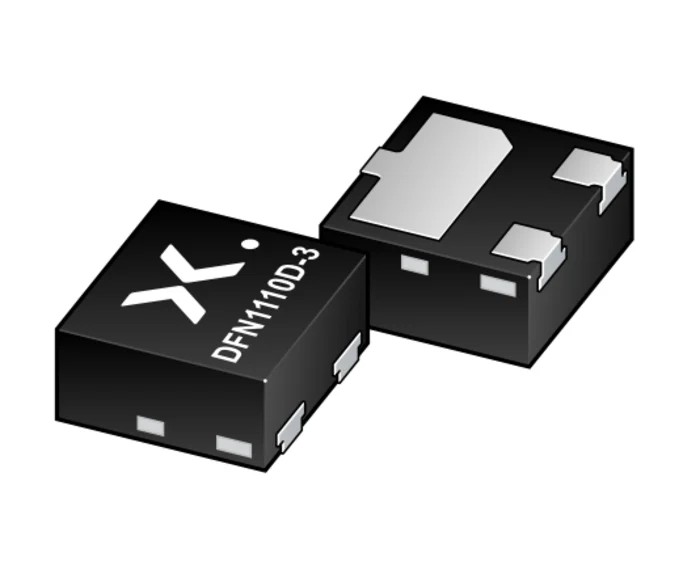

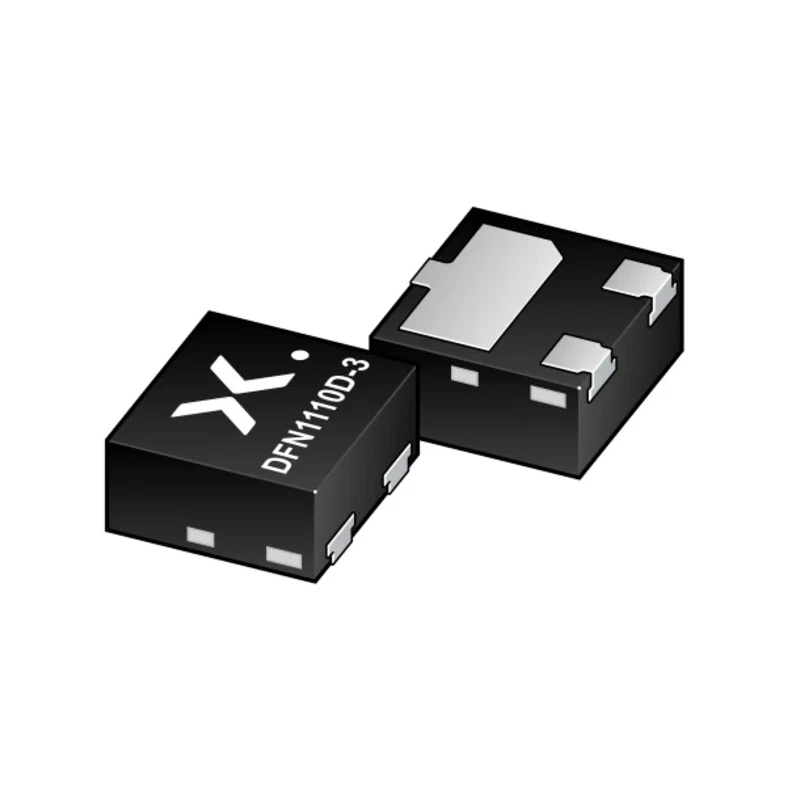

Nexperia PDTC143XQBZ resistor-equipped transistor is a compact NPN bipolar transistor designed for use in modern electronic circuits. This transistor has a maximum DC collector current of 100 mA and a maximum collector emitter voltage rating of 50 V, packaged in a 3-pin DFN1110D-3 leadless surface-mount device. Its small footprint and low package height of 0.5 mm make it well suited for compact designs requiring high reliability and efficient board space usage.
The transistor integrates built-in resistors, simplifying circuit design by reducing the number of discrete components needed and consequently cutting assembly costs. It complies with RoHS environmental standards and the automotive-grade AEC-Q101 certification, attesting to its suitability for automotive and industrial applications. It operates effectively across a broad temperature range from -55°C to 150°C and supports high-frequency switching with a maximum transition frequency of 230 MHz.
This component is ideal for digital applications such as controlling IC inputs and load switching, providing a cost-effective alternative to classic transistor solutions. Its side-wettable flanks facilitate improved solder joint reliability and are compatible with automatic optical inspection (AOI) processes. The PDTC143XQBZ transistor offers a balance of performance, reliability, and compactness for embedded designs across industrial, automotive, and consumer electronics sectors.
100 mA output current capacity for robust signal control. Integrated resistors decrease component count. Surface mount package size is 3-pin DFN1110D-3. Low profile package height of 0.5 mm for tight spaces. Meets RoHS and AEC-Q101 automotive standards.
Max transition frequency up to 230 MHz enables fast switching. Operational temperatures from -55°C to 150°C ensure wide applicability. Suitable for digital switching and load control applications. Low cost and high reliability supports mass production needs.
This product is categorized under Bipolar Transistors and is part of the PDTC143X series by Nexperia. It finds extensive use in industrial, automotive, telecommunications, and general electronic manufacturing. Explore more in the Bipolar Transistors section on EnvMart for related semiconductor devices.
