| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PDTC144EQBZ |
| Mount Type | Surface |
| Series | PDTC144E |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | 50V |
| Minimum DC Current Gain hFE | 80 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 10V |
| Maximum Collector Base Voltage VCBO | 50V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | 100mA |
| Transistor Configuration | NPN |
| Maximum Transition Frequency ft | 230MHz |

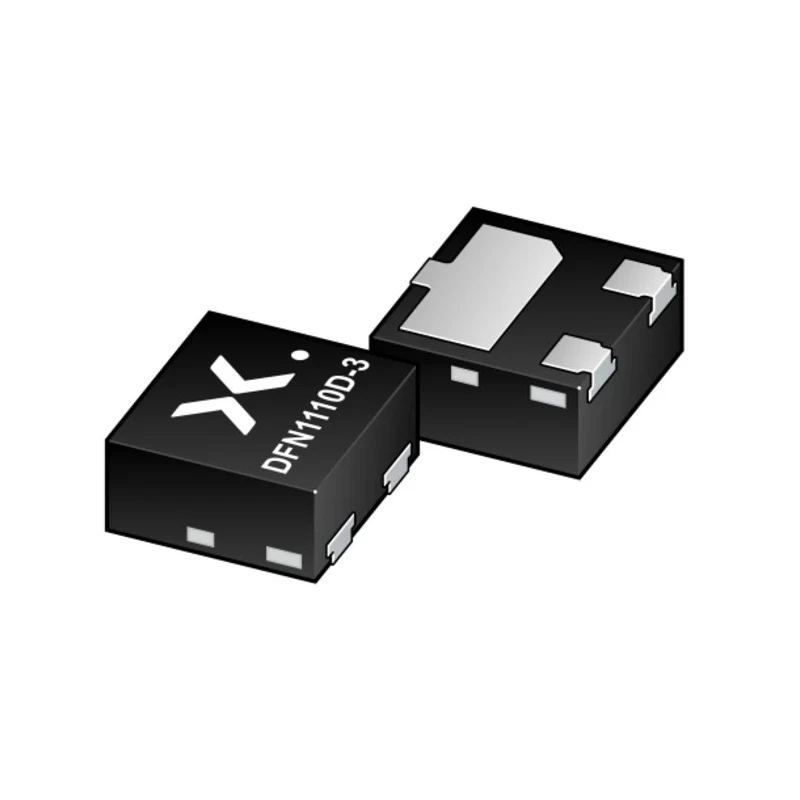

Nexperia PDTC144EQBZ resistor-equipped transistor is an NPN bipolar transistor designed for compact, high-performance digital circuits. It is housed in an ultra-small DFN1110D-3 leadless surface mount package with a low height of 0.5 mm and side-wettable flanks, enabling automatic optical inspection of solder joints for quality assurance.
With a maximum DC collector current of 100 mA and a collector-emitter voltage rating of 50 V, this transistor offers robust switching capabilities. Its built-in resistors reduce the number of external components, simplifying circuit design and lowering both assembly cost and complexity.
The transistor supports wide operating temperatures from -55°C up to 150°C, meeting stringent automotive standards such as AEC-Q101, and is RoHS compliant. Its low profile and small size make it suitable for dense PCB layouts in industrial, automotive, and digital electronic applications where reliable switching is critical.
Commonly used for controlling integrated circuit inputs and switching loads, it stands as a cost-effective and reliable alternative to the BC857 series within various digital systems and embedded designs.
Compact leadless DFN1110D-3 package with 3 pins and side-wettable flanks. Maximum collector current of 100 mA and collector-emitter voltage of 50 V. Built-in resistors simplify design and reduce component count. Wide temperature range: -55°C to 150°C for automotive-grade use.
RoHS compliant and meets AEC-Q101 automotive standard. Ideal for digital and switching applications in industrial electronics. Enables automatic optical inspection (AOI) during manufacturing. This product is suitable for various industrial and automotive electronic circuits requiring compact, reliable transistor performance.
