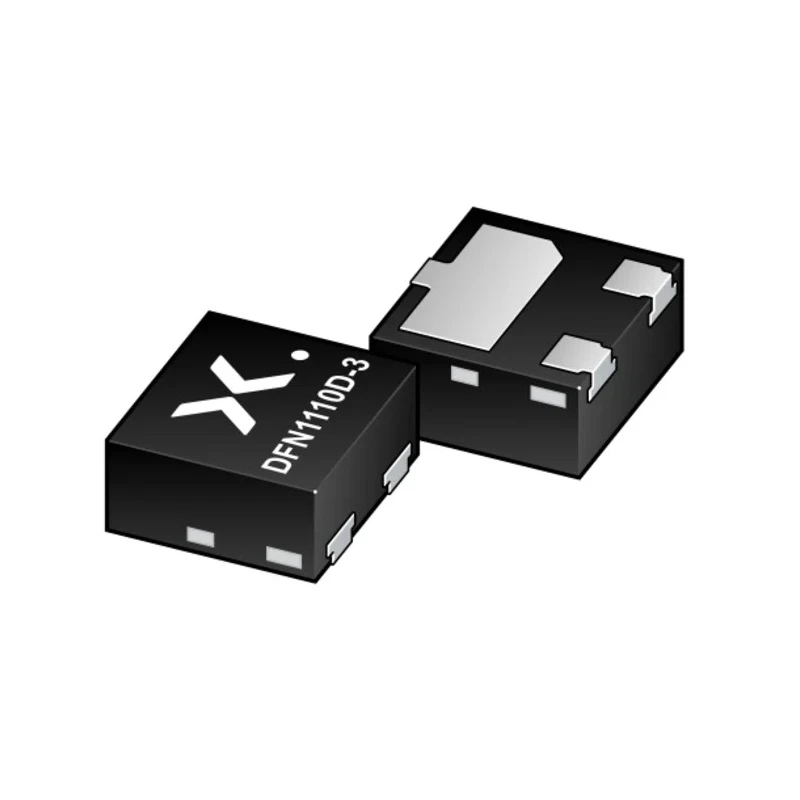

Nexperia Resistor-Equipped Transistor 100 mA NPN, 50 V, 3-Pin DFN1110D-3 PDTC143XQBZ

Nexperia PDTC143XQBZ resistor-equipped transistor is an NPN bipolar transistor designed for surface-mount applications in an ultra-small 3-pin DFN1110D-3 plastic package with side-wettable flanks. It supports a maximum DC collector current of 100 mA and can withstand collector emitter voltages up to 50 V.

Featuring integrated resistors, this transistor reduces the number of external components required, simplifying circuit design and lowering material costs. Its low-profile package height of 0.5 mm is ideal for compact electronic assemblies, and the design is optimized for automatic optical inspection of solder joints to ensure quality manufacturing.

This device is suitable for various digital applications such as controlling integrated circuit inputs, switching loads, and acting as a cost-effective alternative to the BC857 transistor family. It complies with RoHS directives and meets the automotive standard AEC-Q101, ensuring reliability in automotive environments.

Its transistor configuration is NPN with a minimum DC current gain (hFE) of 50, maximum emitter base voltage of 7 V, and maximum collector base voltage of 50 V. The maximum operating temperature ranges from -55°C to 150°C, while the maximum transition frequency is 230 MHz, supporting high-speed switching operations.

This transistor is excellent for industrial, automotive, and consumer electronic use cases where small size, reliability, and integrated resistor functions are required. Offers an output current capability of 100 mA. Built-in resistors simplify circuit design and reduce component count.

Low package height of 0.5 mm facilitates compact PCB layouts. Suitable for automatic optical inspection of solder joints. Serves as a cost-saving alternative to BC857 series in digital applications. Ideal for controlling IC inputs and switching loads.

Complies with RoHS and automotive standard AEC-Q101. Operates reliably from -55°C up to 150°C Maximum operating temperature. Transition frequency reaches up to 230 MHz, enabling high-speed switching. Explore more semiconductor solutions and Bipolar Transistors available at EnvMart for your industrial and electronic component needs.
