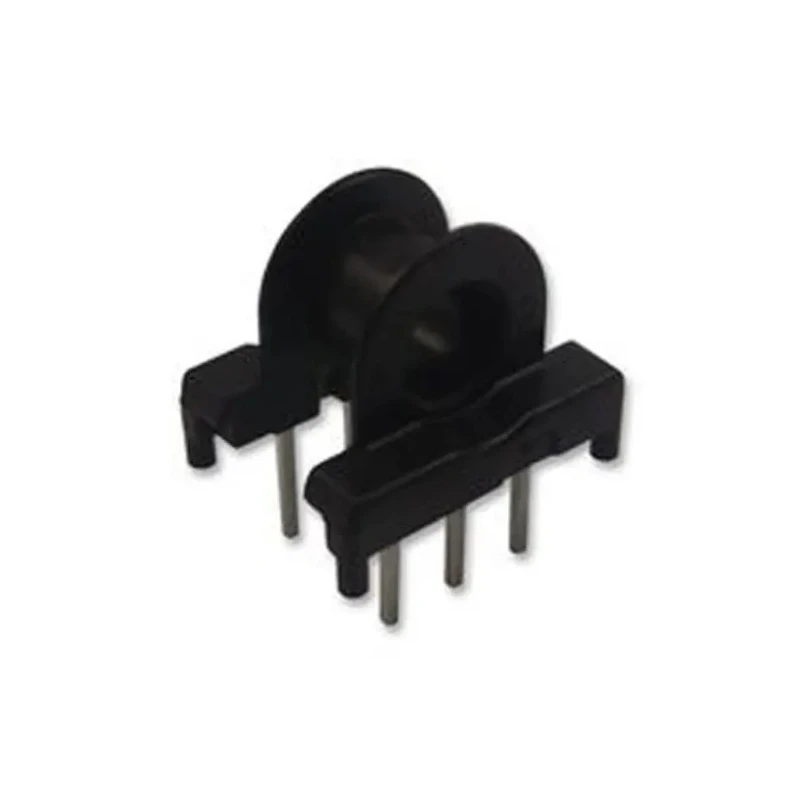

TDK Horizontal Coil Former for use with EP 7 Core B65840B1006D001
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TDK |
| Material | Fibreglass Reinforced Thermosetting Plastic |
| Length | 10.7mm |
| Model | B65840B1006D001 |
| Width | 8.5mm |
| Maximum Operating Temperature | 155°C |
| Accessory Type | Horizontal Coil Former |
| For Use With | EP 7 Core |
| Standards/Approvals | RoHS |
| Number of Pins | 6 |
Key Features
- Constructed from fibreglass reinforced thermosetting plastic for durability.
- Compatible specifically with EP 7 Core transformers.
- Features 6 squared pins for secure coil mounting.
- Maximum operating temperature is 155°C ensuring thermal stability.
- Compact size with 10.7 mm length and 8.5 mm width dimensions.
- Complies with RoHS standards ensuring environmental safety.
- Originates from Czech Republic, assuring quality manufacturing standards.
Product Description
TDK B65840B1006D001 Horizontal Coil Former for use with EP 7 Core is a specialized transformer accessory made from high-quality fibreglass reinforced thermosetting plastic. This coil former is engineered to withstand maximum operating temperatures of up to 155°C, providing excellent thermal stability and durability for power supply transformers and related electronic components.
The coil former features six squared pins that facilitate secure and reliable mounting of coils, ensuring stable electrical performance in transformers. Its compact dimensions of 10.7 mm length and 8.5 mm width make it suitable for applications where space optimization is critical.
Manufactured in Czech Republic, this component complies with RoHS standards, guaranteeing environmentally friendly and safe use in electrical assemblies. The UL94 V-0 insulation class rating further underscores its high resistance to electrical and thermal stress, making it suitable for a variety of industrial applications.
Typical use cases include power supply transformers, electronic equipment repair, manufacturing and assembly of transformer units in commercial and industrial settings. The coil former is particularly valuable in electrical transformer manufacturing, industrial control systems, and laboratory transformer designs requiring precise coil arrangements and durability under continuous operation.
Constructed from fibreglass reinforced thermosetting plastic for durability. Compatible with EP 7 Core transformer applications. Features 6 squared pins for secure coil mounting. Maximum operating temperature is 155°C ensuring thermal stability.
Compact size with 10.7 mm length and 8.5 mm width dimensions. Complies with RoHS standards ensuring environmental safety. Manufactured in Czech Republic, meeting quality manufacturing standards.
This TDK horizontal coil former is a reliable choice for industrial and electronic transformer assembly, offering precise coil form management and excellent heat resistance properties. Explore similar Transformer Accessories and components within EnvMart's comprehensive catalog for enhanced system integration and electronic component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this coil former is 155°C, ensuring thermal stability during operation.
This model has compact dimensions of 10.7 mm in length and 8.5 mm in width, making it suitable for applications where space optimization is critical.
It is constructed from fibreglass reinforced thermosetting plastic, which provides durability and resistance to thermal stress.
The coil former features six squared pins that facilitate secure and reliable mounting of coils.
Yes, it complies with RoHS standards, ensuring environmentally friendly and safe use in electrical assemblies.
This model is specifically compatible with EP 7 Core transformers, making it suitable for various transformer applications.
It is manufactured in the Czech Republic, assuring quality manufacturing standards.
Typical use cases include power supply transformers, electronic equipment repair, and manufacturing of transformer units in commercial and industrial settings.
The insulation class rating is UL94 V-0, indicating high resistance to electrical and thermal stress.
It is classified as a horizontal coil former, designed for precise coil form management in transformer applications.
It is particularly valuable in electrical transformer manufacturing, industrial control systems, and laboratory transformer designs requiring precise coil arrangements.
The design, featuring six squared pins for secure mounting, ensures stable electrical performance and precise coil arrangements in transformer assemblies.
