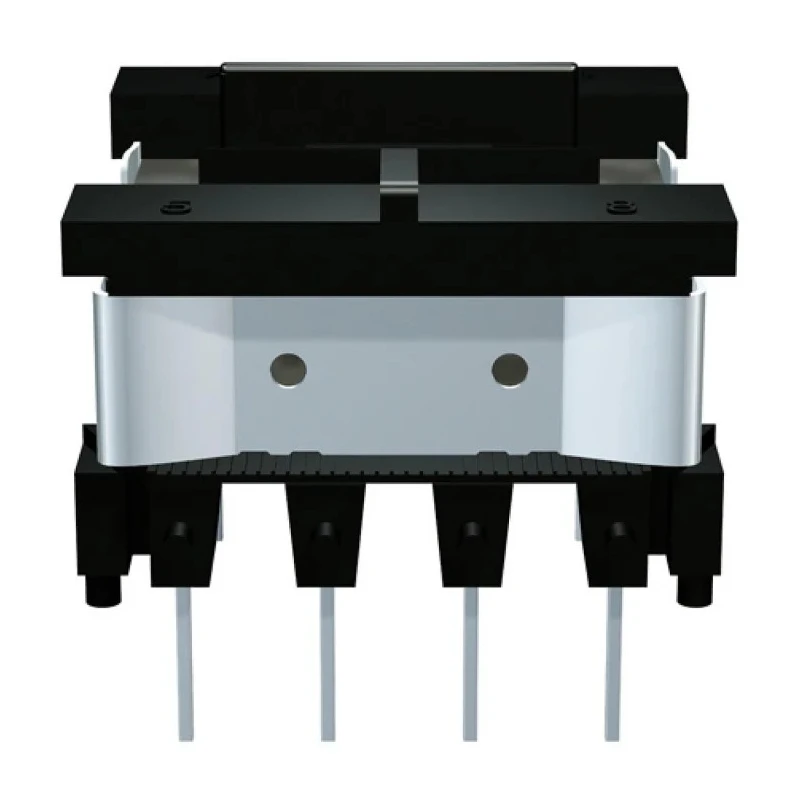

TDK Horizontal Coil Former for E 16/8/5 Core, 8 Pins, Fibreglass Reinforced PolyTerephthalate, 17.8mm x 20mm B66308B1108T001
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Material | Fibreglass Reinforced PolyTerephthalate |
| Length | 17.8mm |
| Model | B66308B1108T001 |
| Depth | 13.7mm |
| Width | 20mm |
| Maximum Operating Temperature | 155°C |
| Accessory Type | Horizontal Coil Former |
| For Use With | E 16/8/5 Core |
| Standards/Approvals | RoHS |
| Number of Pins | 8 |
Key Features
- Designed for use with E 16/8/5 core configurations in transformer applications.
- Features 8-pin configuration for secure and precise winding terminations.
- Constructed from high-grade fibreglass reinforced polyterephthalate for mechanical stability and insulation.
- Supports continuous operation at maximum temperatures up to 155°C.
- Complies with RoHS standards for use in regulated environments.
- Suitable for industrial, power supply, and electronic equipment manufacturing.
Product Description
The TDK B66308B1108T001 Horizontal Coil Former is a specialized transformer accessory engineered for precise assembly and reliable coil configuration in E 16/8/5 core setups. Its eight-pin design allows for streamlined and organized transformer winding, supporting robust electrical connections required in industrial, laboratory, and advanced electronic systems.
This coil former is molded from fibreglass reinforced polyterephthalate, providing superior mechanical strength, dimensional stability, and electrical insulation. It is suitable for continuous use in demanding environments where high temperature resistance (up to 155°C) and compliance with IEC60085 insulation class UL 94 V-0 are essential. The material also assures excellent solderability in accordance with IEC 60068-2-20 standards, supporting reliable assembly on modern PCBs and mechanical frames.
With compact dimensions of 17.8mm length, 20mm width, and 13.7mm depth, this coil former enables the construction of space-constrained transformer designs required in high-density power electronics, automated test equipment, and other advanced applications. The eight aligned pins allow for straightforward integration with standard E 16/8/5 ferrite cores and streamline the task of winding primary and secondary coils, contributing to enhanced efficiency and quality control during production.
Use this coil former in transformer and inductor builds requiring optimal heat resistance, reliable mechanical integrity, and adherence to strict electrical safety protocols. It is ideal for engineers and manufacturers aiming to boost the performance, safety, and reliability of their transformer or power management solutions.
For use in designing compact, high-reliability transformers with E 16/8/5 ferrite cores. Frequently utilized in power supplies, inverters, and filtering circuits. Applicable in laboratory equipment, control panels, industrial automation, and commercial electronic assemblies.
Explore more TDK Transformer Accessories for advanced magnetic component solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports continuous operation at maximum temperatures up to 155°C.
It is constructed from fibreglass reinforced polyterephthalate, which provides mechanical strength and electrical insulation.
The coil former has dimensions of 17.8mm in length, 20mm in width, and 13.7mm in depth.
It features an 8-pin configuration for secure and precise winding terminations.
Yes, it complies with RoHS standards for use in regulated environments.
It is specifically designed for use with E 16/8/5 core configurations in transformer applications.
It is suitable for industrial, power supply, and electronic equipment manufacturing, including transformers and inductors.
It adheres to strict electrical safety protocols, supporting reliable assembly on modern PCBs and mechanical frames.
This product is categorized as a horizontal coil former.
The 8-pin design allows for streamlined and organized transformer winding, enhancing efficiency and quality control during production.
The country of origin for this coil former is China.
It is frequently utilized in power supplies, inverters, filtering circuits, laboratory equipment, control panels, and industrial automation.
