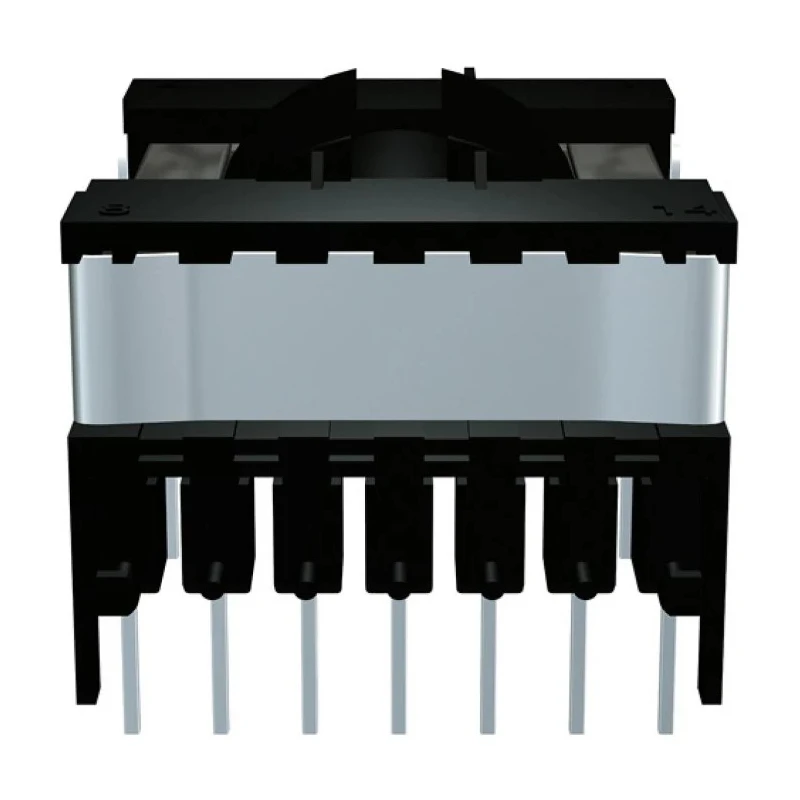

TDK Horizontal Coil Former for ETD 29/16/10 Core Fibreglass Reinforced PolyTerephthalate B66359W1013T001
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TDK |
| Material | Fibreglass Reinforced PolyTerephthalate |
| Model | B66359W1013T001 |
| Overall Length | 35.2mm |
| Overall Width | 35.2mm |
| Insulation Class | IEC 60085:B |
| Kit Type | Horizontal Coil Former |
| For Use With | ETD 29/16/10 Core |
| Standards/Approvals | RoHS |
| Overall Depth | 28.5mm |
Key Features
- Designed for use with ETD 29/16/10 ferrite cores.
- Horizontal coil former configuration allows efficient transformer or inductor assembly.
- Constructed from fibreglass reinforced polyterephthalate for enhanced strength and thermal resistance.
- Complies with RoHS and UL 94 V-0 safety and material standards.
- Overall dimensions are 35.2mm length, 35.2mm width, and 28.5mm depth for precise fit in electronic assemblies.
- Excellent resistance to soldering heat as per IEC 60068-2-20.
Product Description
TDK B66359W1013T001 Horizontal Coil Former is engineered specifically for use with ETD 29/16/10 Core, providing a robust solution for winding applications in transformer and inductor manufacturing. This coil former supports a horizontal axis configuration, ensuring consistent and efficient winding geometries in compact designs.
Designed for optimal compatibility with ETD 29/16/10 ferrite cores, which are widely used in switched-mode power supplies and magnetic components. The body is constructed from black fibreglass reinforced polyterephthalate, delivering high mechanical strength, electrical insulation, and superior thermal stability.
Dimensioned at 35.2mm overall length, 35.2mm width, and 28.5mm depth, it enables precise fitment within standard transformer and inductor housings. Adheres to RoHS and UL 94 V-0 compliance, guaranteeing environmental safety and flame retardance required in industrial electronics.
Designed to perform under high temperatures with insulation class IEC 60085:B, ensuring safety and longevity of wound devices. Meets IEC 60068-2-20 for solderability and resistance to soldering heat, making it suitable for automated and manual assembly processes.
Features squared pins as per EPCOS B66359 series, allowing secure PCB mounting and reliable electrical connectivity.
Typical applications include transformer accessories, inductors, power modules, SMPS, industrial automation controllers, and high-frequency electronic circuits. The TDK B66359W1013T001 coil former is essential for electrical engineers, designers, and PCB assembly professionals requiring precision and durability in transformer construction.
Explore more TDK Transformer Accessories and components on EnvMart and enhance your power electronics projects with reliable, high-quality parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The overall dimensions of this coil former are 35.2mm in length, 35.2mm in width, and 28.5mm in depth.
It is constructed from fibreglass reinforced polyterephthalate, which provides high mechanical strength and thermal stability.
This coil former complies with insulation class IEC 60085:B, ensuring safety under high-temperature conditions.
It is specifically designed for use with ETD 29/16/10 ferrite cores, commonly used in transformer and inductor applications.
It complies with RoHS and UL 94 V-0 safety and material standards, ensuring environmental safety and flame retardance.
It meets IEC 60068-2-20 standards for solderability and resistance to soldering heat, making it suitable for both automated and manual assembly processes.
The kit type of this product is a horizontal coil former, designed for efficient transformer or inductor assembly.
Typical applications include transformer accessories, inductors, power modules, SMPS, industrial automation controllers, and high-frequency electronic circuits.
The country of origin for this coil former is the Czech Republic.
Key features include high mechanical strength, electrical insulation, superior thermal stability, and squared pins for secure PCB mounting.
The squared pins allow for secure PCB mounting and reliable electrical connectivity, enhancing the assembly process.
Its horizontal axis configuration ensures consistent and efficient winding geometries, which is crucial for compact transformer designs.
