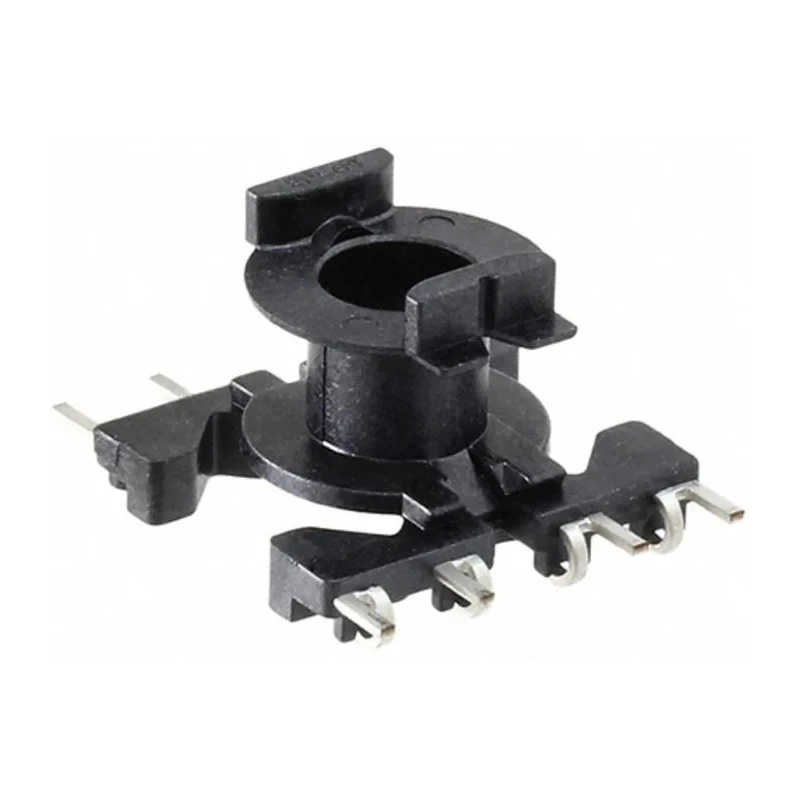

TDK SMD Coil Former for RM 5 Core B65822J1008T001, 8 Pins, Fibreglass Reinforced Liquid Crystal Polymer, 18.6mm × 15mm, 155°C
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TDK |
| Material | Fibreglass Reinforced Liquid Crystal Polymer |
| Length | 18.6mm |
| Model | B65822J1008T001 |
| Width | 15mm |
| Maximum Operating Temperature | 155°C |
| Accessory Type | SMD Coil Former |
| For Use With | RM 5 Core |
| Standards/Approvals | RoHS |
| Number of Pins | 8 |
Key Features
- Supports RM 5 core transformer applications with robust coil forming.
- Made from fibreglass reinforced liquid crystal polymer for high mechanical strength.
- Maximum operating temperature up to 155°C enables reliability in demanding environments.
- Compliant with RoHS standards for hazardous substance-free operation.
- Includes 8 pins suitable for secure electrical connections.
- UL 94 V-0 insulation class for enhanced electrical safety.
Product Description
TDK B65822J1008T001 is an SMD coil former specifically engineered for transformer accessory applications using RM 5 core designs in advanced electronics, power supply modules, and industrial circuits.
The coil former is constructed from fibreglass reinforced liquid crystal polymer, delivering excellent mechanical durability and chemical resistance. Its UL 94 V-0 insulation class, in accordance with IEC 60085, ensures safe operation in high-voltage and high-temperature environments. The solderability is certified to IEC 60058-2-58, maintaining reliable PCB integration and strong lead connections.
Designed to withstand elevated thermal loads, the product features a maximum operating temperature of 155°C, making it suitable for demanding conditions found in power conversion equipment, industrial automation modules, and sensitive laboratory electronics. The compact footprint (18.6mm length, 15mm width) supports efficient design and layout of printed circuit boards, enabling reduced space requirements without sacrificing performance or reliability.
The coil former includes eight robust pins for secure attachment and steady current transmission; these are essential for transformer accessory integration, signal transmission, and inductive component manufacturing. RoHS compliance ensures the device meets global environmental requirements, supporting industrial, laboratory, and commercial projects where safety and eco-friendliness are priorities.
Applications span industrial power supplies, voltage isolation modules, electronic circuit assembly, and transformer retrofitting in manufacturing environments. The high-grade polymer material supports repeated handling, thermal cycling, and demanding manufacturing processes.
Browse EnvMart Transformer Accessories and TDK industrial components for additional coil formers and transformer solutions to meet broad engineering and application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this coil former is 155°C, making it suitable for demanding environments.
It is constructed from fibreglass reinforced liquid crystal polymer, which provides excellent mechanical durability and chemical resistance.
This coil former includes eight pins, which are essential for secure electrical connections and steady current transmission.
The dimensions of this coil former are 18.6mm in length and 15mm in width, supporting efficient PCB design.
Yes, it is compliant with RoHS standards, ensuring it is free from hazardous substances.
It is designed for use in industrial power supplies, voltage isolation modules, electronic circuit assembly, and transformer retrofitting.
The B65822J1008T001 is classified as an SMD coil former, specifically engineered for RM 5 core transformer applications.
This model meets RoHS standards and is certified for solderability according to IEC 60058-2-58.
The UL 94 V-0 insulation class indicates enhanced electrical safety, suitable for high-voltage and high-temperature environments.
The country of origin for this coil former is the Czech Republic.
Yes, its design and materials make it suitable for use in sensitive laboratory electronics as well as industrial applications.
The eight pins are used for secure attachment and steady current transmission, essential for transformer accessory integration.
