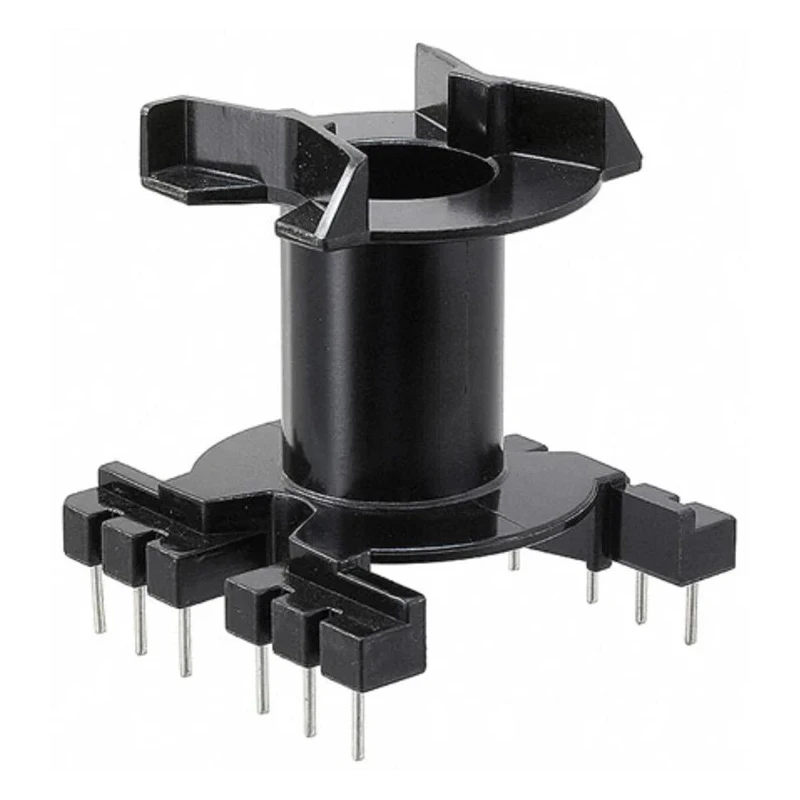

TDK Vertical Coil Former PMC Thermosetting Plastic, 12 Pin for PQ 50 x 50 Core B65982E0012D001

The TDK B65982E0012D001 Vertical Coil Former is a high-quality accessory purpose-built for integration with PQ 50 x 50 transformer cores in modern electronic assemblies. Engineered from premium PMC thermosetting plastic, this coil former is rated for high thermal stability, ensuring consistent structural integrity even under prolonged operation at elevated temperatures up to 155°C. Its flame-retardant UL 94 V-0 compliant material supports demanding industrial power supply environments, delivering mechanical resilience and precise coil forming.

Featuring 12 pins, this vertical coil former accommodates multiple winding configurations, enabling flexibility in transformer design. It is ideal for use in transformer manufacturing, power electronics, switch-mode power supply design, and custom transformer assemblies across commercial, laboratory, and industrial applications where reliable magnetic component support is essential.

The dimensions of the coil former, measuring 51 mm in length, 51.6 mm in width, and 58.6 mm in depth, allow for easy integration into compact layouts, ensuring optimal utilization of board real estate while maintaining efficient magnetic coupling. Its compatibility with PQ-type ferrite cores ensures it meets the construction and winding requirements of high-frequency transformers.

Compliance with RoHS directives further addresses environmental responsibility for modern electronics production.

This coil former is commonly employed in power supply development, industrial control electronics, instrumentation, and laboratory test equipment. Its robust build and precise pin array make it the preferred choice for transformer core assembly where long-term reliability is crucial.

Explore more transformer accessories and reliable TDK magnetic components within the Transformer Accessories section to meet your advanced electronic design requirements on EnvMart.
