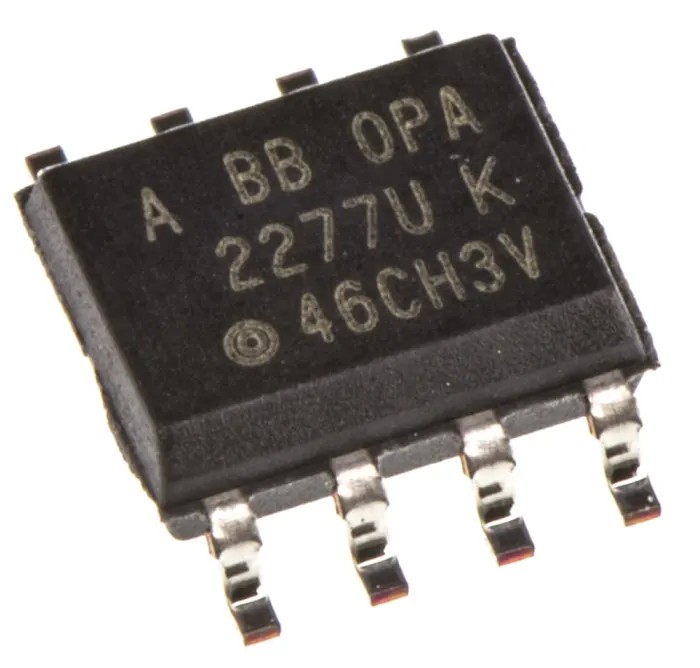

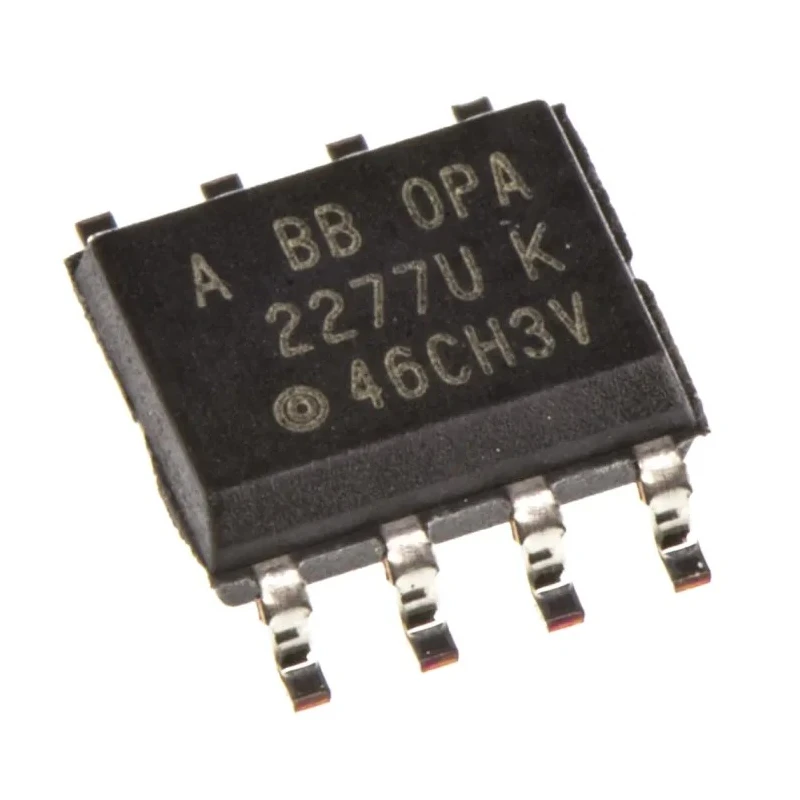

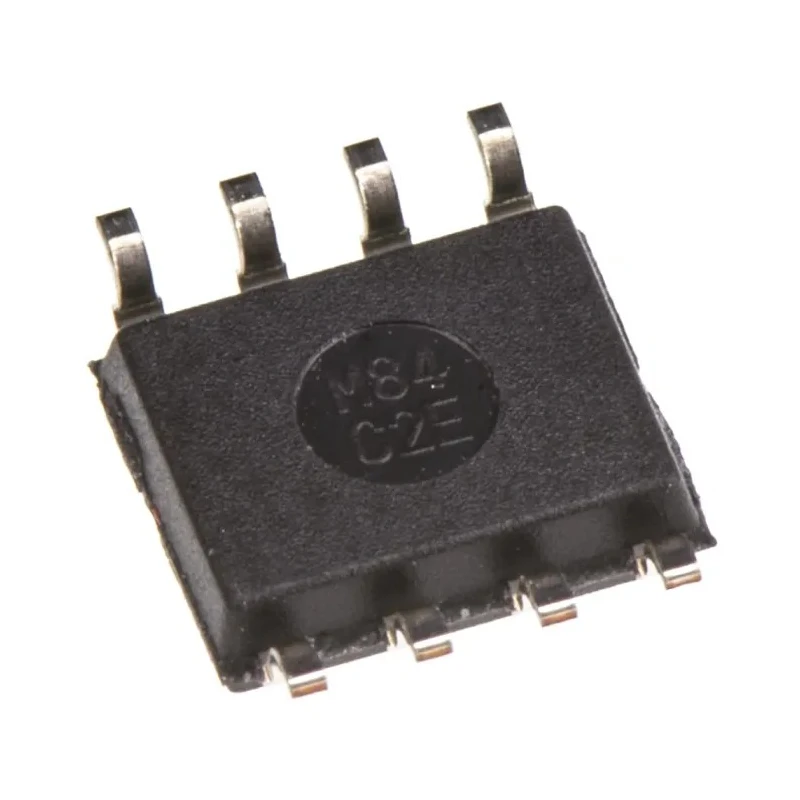

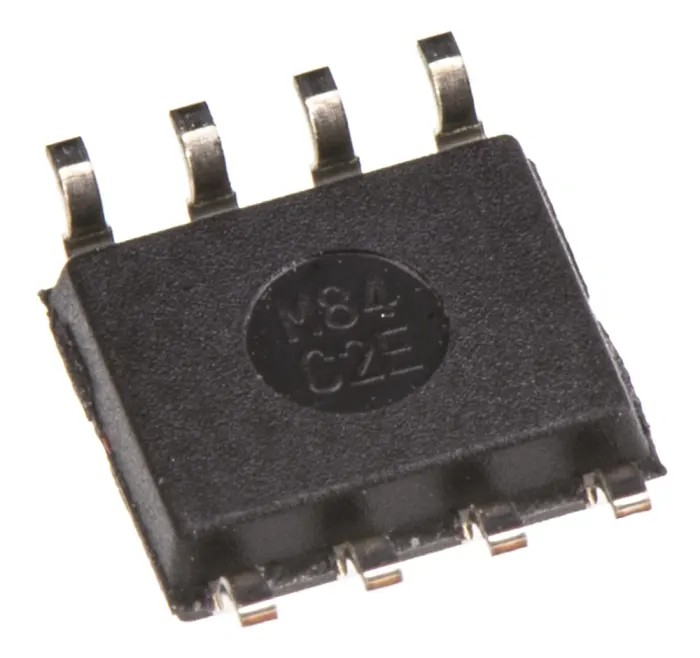

Texas Instruments Operational Amplifier 1 MHz Gain Bandwidth Product, 8-Pin SOIC, 2 Channels, 2-18V OPA2277UA
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | OPA2277UA |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | OPA2277 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 2V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | ±4 nA |
| Slew Rate | 0.8V/μs |
Key Features
- Offers dual channel configuration for versatile circuit design.
- Operates with a supply voltage range from 2 V to 18 V.
- Precision input offset voltage of ±50 μV for accurate signal processing.
- Input bias current is ±4 nA, minimizing error currents.
- Slew rate of 0.8 V/μs suitable for moderate speed applications.
- Wide operating temperature range from -40°C to 85°C for reliable operation.
- Compact dimensions with 4.9 mm length, 3.91 mm width, and 1.58 mm height.
- Surface mount SOIC 8-pin package allows for easy PCB integration.
Product Description
Texas Instruments OPA2277UA is a precision operational amplifier available in an 8-pin SOIC surface mount package with a gain bandwidth product of 1 MHz. Designed for high accuracy and low parameter drift, it supports dual channels and operates over a wide supply voltage range of 2 V to 18 V, making it ideal for demanding electronics applications.
This operational amplifier features an input offset voltage of ±50 μV and a low input bias current of ±4 nA, ensuring signal integrity in sensitive measurement and amplification tasks. With a slew rate of 0.8 V/μs and operating temperature range from -40°C to 85°C, it can reliably function in varied environmental conditions.
The compact footprint with a length of 4.9 mm, width of 3.91 mm, and height of 1.58 mm facilitates convenient PCB layout. Typical uses include signal conditioning, precision instrumentation, active filters, and transducer amplification.
Manufactured in Malaysia, the OPA2277 series from Texas Instruments is widely used in industrial, laboratory, instrumentation, and electronic assembly applications where precision and stability are critical.
Offers dual channel configuration for versatile circuit design. Operates with a supply voltage range from 2 V to 18 V. Precision input offset voltage of ±50 μV for accurate signal processing. Input bias current is ±4 nA, minimizing error currents.
Slew rate of 0.8 V/μs suitable for moderate speed applications. Wide operating temperature range from -40°C to 85°C for reliable operation. Compact dimensions with 4.9 mm length, 3.91 mm width, and 1.58 mm height. Surface mount SOIC 8-pin package allows for easy PCB integration.
Manufactured in Malaysia with high manufacturing standards. For further exploration of precision Operational Amplifiers and semiconductor components, browse the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The OPA2277UA has a gain bandwidth product of 1 MHz.
It operates with a supply voltage range from 2 V to 18 V.
This operational amplifier features a dual channel configuration.
The input offset voltage is ±50 μV, which aids in accurate signal processing.
The input bias current is ±4 nA, minimizing error currents in applications.
The slew rate is 0.8 V/μs, making it suitable for moderate speed applications.
It has compact dimensions of 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height.
The operational amplifier operates within a temperature range of -40°C to 85°C.
It is available in an 8-pin SOIC surface mount package, facilitating easy PCB integration.
This operational amplifier is manufactured in Malaysia.
Typical applications include signal conditioning, precision instrumentation, active filters, and transducer amplification.
It features a low input bias current of ±4 nA and a precision input offset voltage of ±50 μV, ensuring signal integrity in sensitive tasks.
