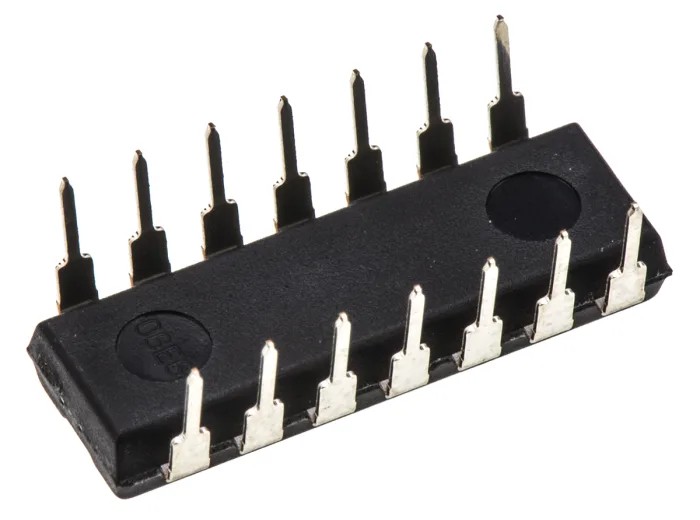

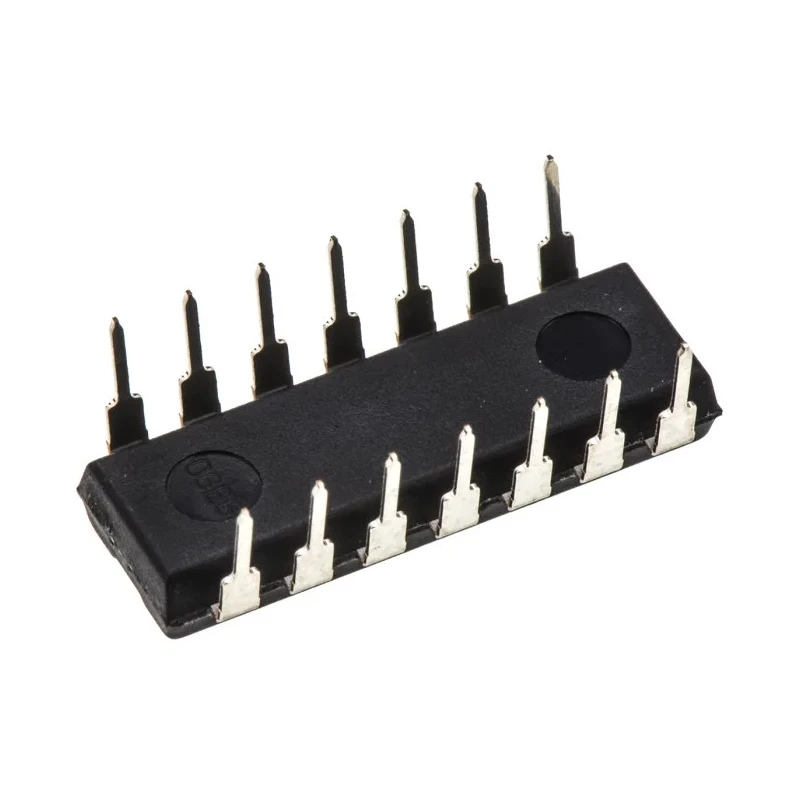

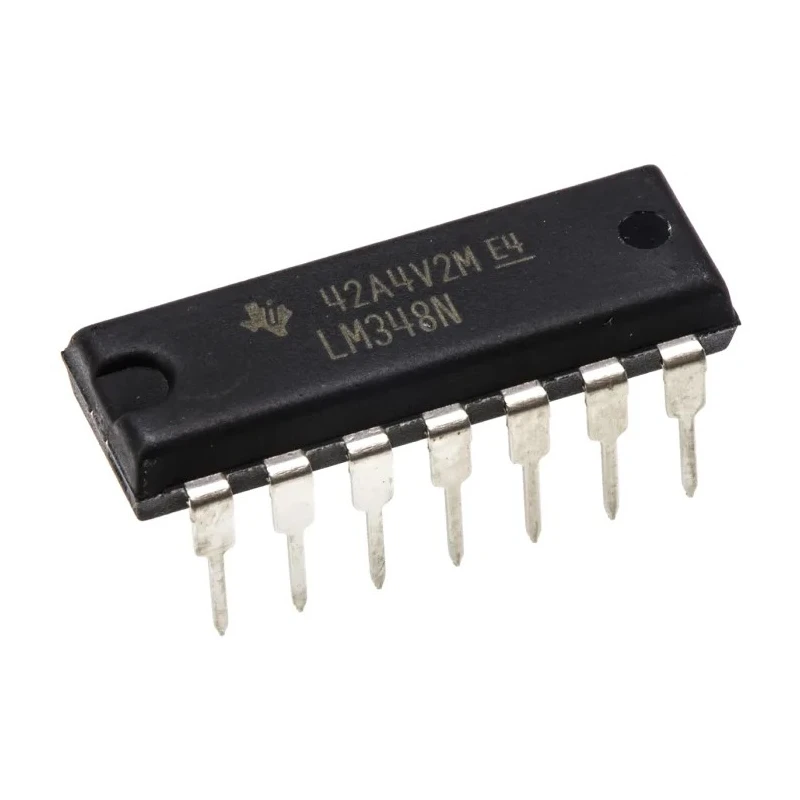

Texas Instruments Operational Amplifier 1 MHz Gain Bandwidth Product 14-Pin PDIP LM348N
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | LM348N |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | LM348 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 4 |
| Pin Count | 14 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 4V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 400 nA |
| Vos - Input Offset Voltage | 6 mV |
| Slew Rate | 0.5V/μs |
| Input Offset Current | 100 nA |
Key Features
- This quad-channel operational amplifier supports supply voltages from 4V to 18V.
- It features a gain bandwidth product of 1 MHz for general purpose applications.
- The device operates within a temperature range of 0 to 70°C.
- Input bias current is 400 nA with a low input offset voltage of 6 mV.
- Slew rate is 0.5 V/μs ensuring suitable response speed for diverse applications.
- The package dimensions include length 19.3 mm, width 6.35 mm, and height 4.57 mm.
- Input offset current is 100 nA, signifying high precision in signal amplification.
- The LM348 series is designed without automotive standards compliance.
Product Description
Texas Instruments LM348N is a quad-channel general-purpose operational amplifier with a 1 MHz gain bandwidth product, housed in a 14-pin PDIP package designed for through-hole mounting. It supports a supply voltage range of 4 to 18 volts and operates reliably from 0°C to 70°C. This amplifier offers low input offset voltage of 6 mV and input bias current of 400 nA, making it suitable for many analog signal processing tasks requiring moderate precision.
The device's slew rate of 0.5 V/μs allows responsive signal amplification suitable for industrial, laboratory, and general-purpose electronic applications. Its package dimensions of 19.3 mm length, 6.35 mm width, and 4.57 mm height provide a compact footprint for circuit board integration.
This operational amplifier is widely applicable in instrumentation, measurement systems, and control systems across industrial, education, and research laboratories. It is not automotive standard certified, but offers robust performance in commercial electronics.
This quad-channel amplifier supports supply voltages from 4V to 18V. Gain bandwidth product of 1 MHz enables versatile signal amplification. Input offset voltage of 6 mV ensures accuracy in amplification. Slew rate of 0.5 V/μs enables adequate signal response speed.
Operating temperature range of 0 to 70 degrees Celsius for stable performance. Compact 14-pin PDIP package suitable for through-hole mounting. Input bias current of 400 nA and input offset current of 100 nA provide low input errors.
The LM348N operational amplifier from Texas Instruments is a trusted choice for electronic design engineers working in fields including industrial automation, laboratory instrumentation, and educational electronics projects. For more options, explore the Operational Amplifier category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LM348N has a gain bandwidth product of 1 MHz, making it suitable for general-purpose applications.
This model supports a supply voltage range from 4V to 18V.
It operates reliably within a temperature range of 0°C to 70°C.
The input offset voltage of the LM348N is 6 mV, which helps ensure accuracy in amplification.
The slew rate for this model is 0.5 V/μs, allowing for responsive signal amplification.
This operational amplifier features four channels, making it a quad-channel device.
The package dimensions are 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height.
It is designed for through-hole mounting, suitable for various circuit board applications.
The input bias current for the LM348N is 400 nA, which contributes to its low input errors.
The input offset current is 100 nA, indicating high precision in signal amplification.
This operational amplifier is applicable in instrumentation, measurement systems, and control systems across various fields such as industrial and educational electronics.
No, the LM348N is not designed to meet automotive standards compliance.
