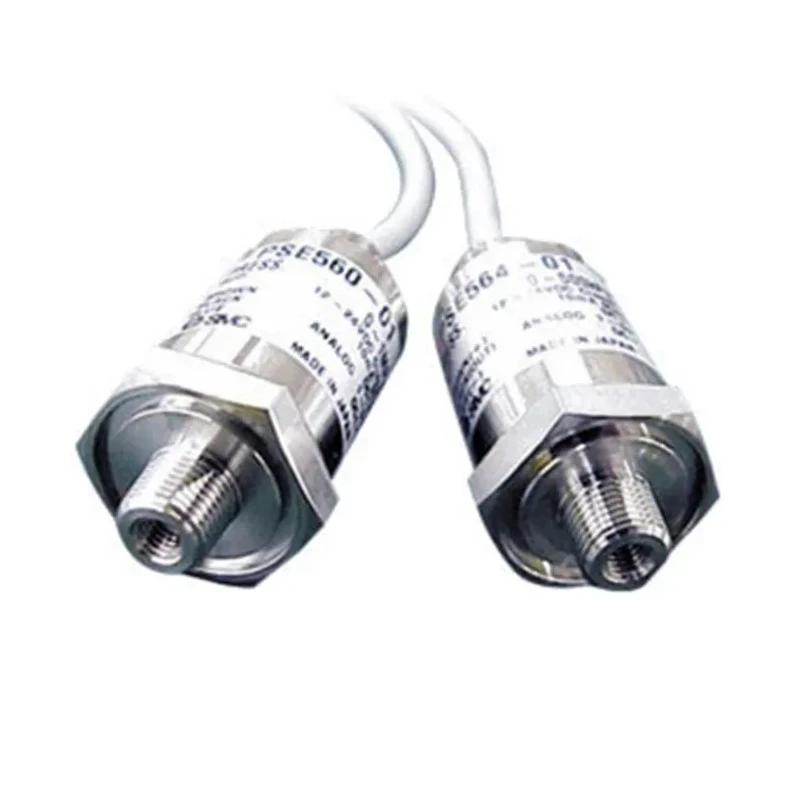

SMC Pneumatic Pressure Sensor IP40, 10 bar, 12V/24V, 60°C, Female R 1/4 Port

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Pressure Sensor IP40, 10 bar, 12V/24V, 60°C, Female R 1/4 Port



Category Pneumatic Pressure Sensors Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	12, 24V
Brand	SMC
Maximum Operating Pressure	10 bar
Height	43mm
Model	IP40
Depth	30mm
IP Rating	IP40
Width	15mm
Mount Type	Bracket
Series	PSE
Maximum Operating Temperature	60°C
Pressure Type	Positive
Switch output	PNP, NPN
Port Size	R 1/4 Female
Minimum Operating Temperature	-10°C
Standards/Approvals	RoHS
Electrical Connection Type	Plug Socket
Minimum Operating Pressure	0bar
Port Gender	Female
Suitable Medias	Compressed Air

Key Features

This sensor is suitable for measuring positive pressure in compressed air applications.
It features a female R 1/4 port size and bracket mount type for easy installation.
The device outputs signals in both PNP and NPN switch formats.
The sensor operates reliably within -10°C to 60°C temperature range and has an IP40 rated enclosure.
Accurate with 1% full scale accuracy and 0.2% full scale repeatability at 25°C ambient temperature.
Compact dimensions of 43mm height, 30mm depth, and 15mm width.
Designed for industrial pneumatic control systems requiring robust and precise pressure measurements.
Electrical connection is via plug socket ensuring secure connectivity.

Product Description

SMC PSE564-02-28 is a high-performance pneumatic pressure sensor designed for industrial and mechanical applications involving compressed air media. It offers reliable pressure measurement up to 10 bar with an accuracy of 1% full scale and a repeatability of 0.2% full scale at 25°C. The sensor features IP40 protection level ensuring moderate protection against environmental factors, suitable for controlled industrial environments.

Equipped with a female R 1/4 port size and bracket mount type, this sensor is easily installed in pneumatic circuits. The sensor supports both PNP and NPN switch output, providing versatile integration options into control systems.

Operating voltage options of 12V and 24V allow flexible power supply configurations. This sensor is designed to function optimally in ambient temperatures from -10°C up to 60°C, catering to a wide range of industrial usage conditions.

The device's compact form factor with measurements of 43mm height, 30mm depth, and 15mm width ensures space-efficient installation. Its electrical connection via plug socket offers straightforward and secure electrical connectivity.

This pressure sensor is RoHS compliant and manufactured in Japan, reflecting quality assurance and environmental compliance standards. This pneumatic pressure sensor delivers precise pressure sensing for compressed air applications.

Accurate and repeatable measurements improve reliability in pneumatic control. Compact size and bracket mount facilitate versatile installations. Dual voltage operation and dual switch outputs offer application flexibility.

Rated for 10 bar pressure and can withstand temperatures up to 60°C reliably.

Ideal for industrial pneumatic automation, manufacturing, and machinery requiring dependable pressure monitoring. Explore our extensive pneumatic sensor range for diverse industrial solutions at EnvMart.
