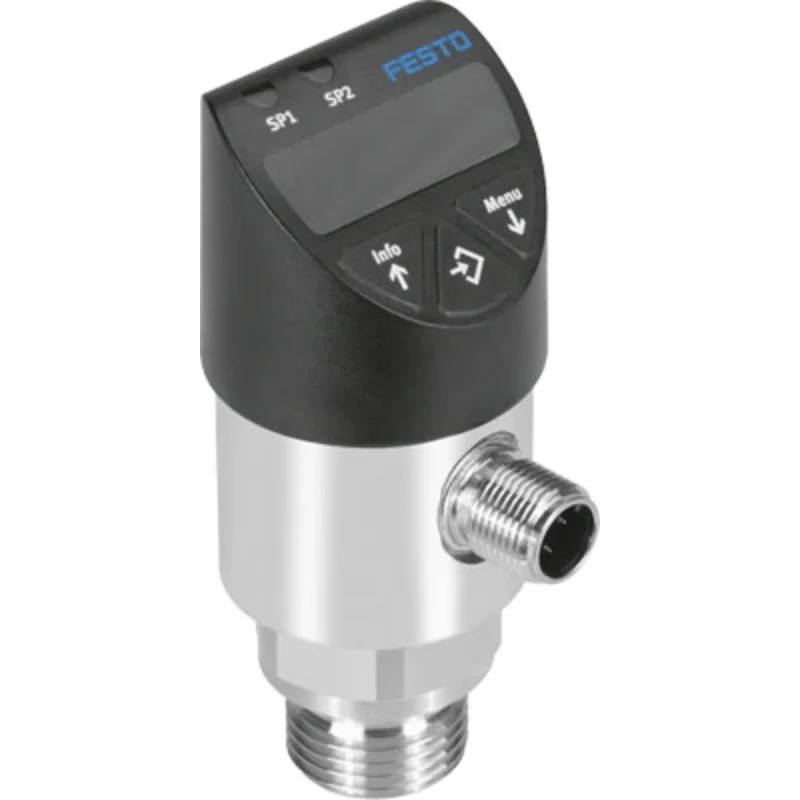

Festo Pneumatic Pressure Sensor IP65 IP67 10 bar 35V DC with Digital Display SPAW-B11R-G12M-2PA-M12

Festo SPAW-B11R-G12M-2PA-M12 pneumatic pressure sensor is engineered for precise pressure measurement in pneumatic systems and fluid power applications. Featuring a piezoresistive stainless steel measuring cell, it measures pressures ranging from -1 bar up to 10 bar, providing accurate readings essential for industrial controls.

Operating at a 35V DC supply voltage, this sensor incorporates a switchable element design with two PNP type switching outputs and one analogue output ranging from 4mA to 20mA, enabling versatile integration into automation systems.

The robust design provides both IP65 and IP67 ingress protection ratings, ensuring reliable operation in harsh environments and resistance to dust and water exposure. The sensor includes a G1/2 pneumatic connection with an external thread, facilitating easy and secure installation.

A standout feature is the 4-digit, 320° rotatable LED digital display, which allows convenient pressure monitoring and numerical percentage indication of pressure levels from various viewing angles. The M12x1 A-coded plug connectors support quick electrical connectivity.

With an operating temperature range from 0°C to 80°C and an accuracy of ±1% full scale, the sensor is suitable for high-pressure pneumatic systems, as well as pressure monitoring of liquid media. The device also incorporates a tamper protection mechanism via a security code to prevent unauthorized calibration changes.

Manufactured in Germany, this sensor meets RoHS standards and certifications, including cULus and CE, making it compliant with international requirements for safety and environmental standards.

This pressure sensor is ideal for applications in industrial automation, laboratory instrumentation, manufacturing processes, HVAC systems, and water treatment plants where precise pressure measurement is vital.

Measures media pressures with a piezoresistive stainless steel cell. Durable IP65 and IP67 protection for harsh industrial environments. Two PNP switching outputs and one 4 - 20 mA analogue output. Rotatable 4-digit LED display for clear pressure indication.

G1/2 pneumatic port with external thread for secure connection. Operating temperature range 0°C to 80°C. ±1% full scale accuracy with tamper security features. RoHS compliant and certified to cULus and CE standards. Explore EnvMart's selection of industrial Pneumatic Pressure Sensors and enhance your automation and fluid power applications with dependable measurement solutions.
