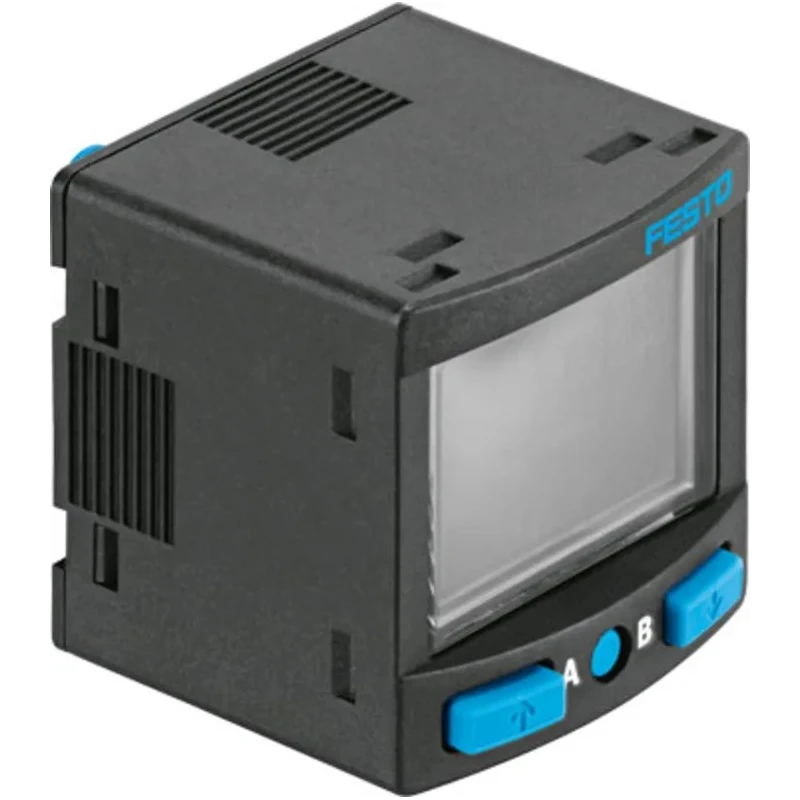

Festo Pneumatic Pressure Sensor IP40 10 bar 30V DC Digital Display

Festo SPAN-P10R-Q4-PNLK-PNVBA-L1 is a pneumatic pressure sensor designed for precise monitoring of compressed air and non-corrosive gases in industrial environments. Featuring a compact design with IP40 protection and a maximum operating pressure of 10 bar, this sensor is suited for multiple pneumatic applications requiring relative, differential, and vacuum pressure measurements.

The measuring principle is based on a piezoresistive measuring cell that outputs reliable pressure values either as switching signals, analogue signals, or digitally via IO-Link 1.1. It includes a user-friendly 2-line digital display for clear and immediate pressure readings. The sensor supports various monitoring functions such as network pressure presence, regulator setpoint control, partial vacuum detection, leak testing through pressure drop over time, and object detection with back pressure monitoring.

Additional advanced features include an ECO mode to switch off the display for power saving, a freely programmable 4-digit security code for authorized settings access, an adjustable low-pass filter for signal smoothing, and min/max value memory for reliable compressed air monitoring. The sensor mounts easily via threaded or surface installation with compatibility for GPT, NPT, and R (PT) threads.

This device conforms to RoHS standards and is manufactured in Bulgaria to high industrial quality standards. Operable within 0°C to 50°C ambient temperatures, it fits a broad spectrum of pneumatic sensing applications in industrial automation, manufacturing, and process control sectors.

Compact design for space-efficient installation. Robust IP40 ingress protection ensures durability in industrial environments. Multiple output types including PNP, NPN, analogue, and IO-Link communication. Digital display with ECO function for user convenience and energy efficiency.

Adjustable filter and min/max memory improve signal accuracy and monitoring. Security code option enhances setting protection. Suitable for relative, differential, and vacuum pressure measurements up to 10 bar. Threaded/surface mount with versatile connection standards GPT, NPT, R (PT).

Wide operating temperature range from 0°C to 50°C. Ideal for pneumatic monitoring in industrial automation and fluid power systems. Explore more industrial-grade Pneumatic Pressure Sensors and related Festo products at EnvMart for your automation and instrumentation needs.
