Festo Pneumatic Pressure Sensor IP40 10 bar 30V DC with Digital Display

Free Delivery in India | Lowest Global Shipping Charges

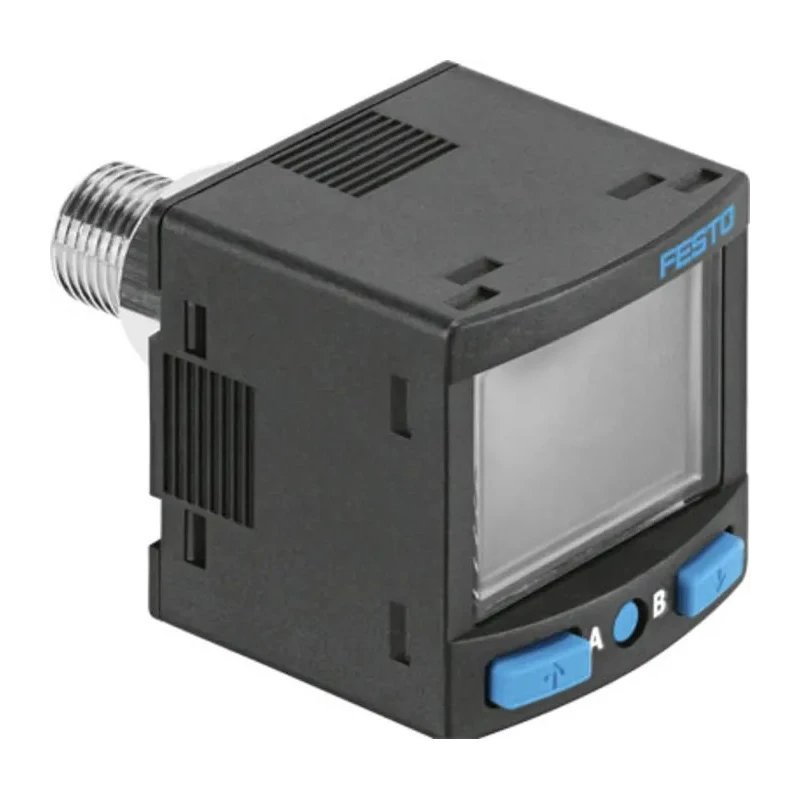

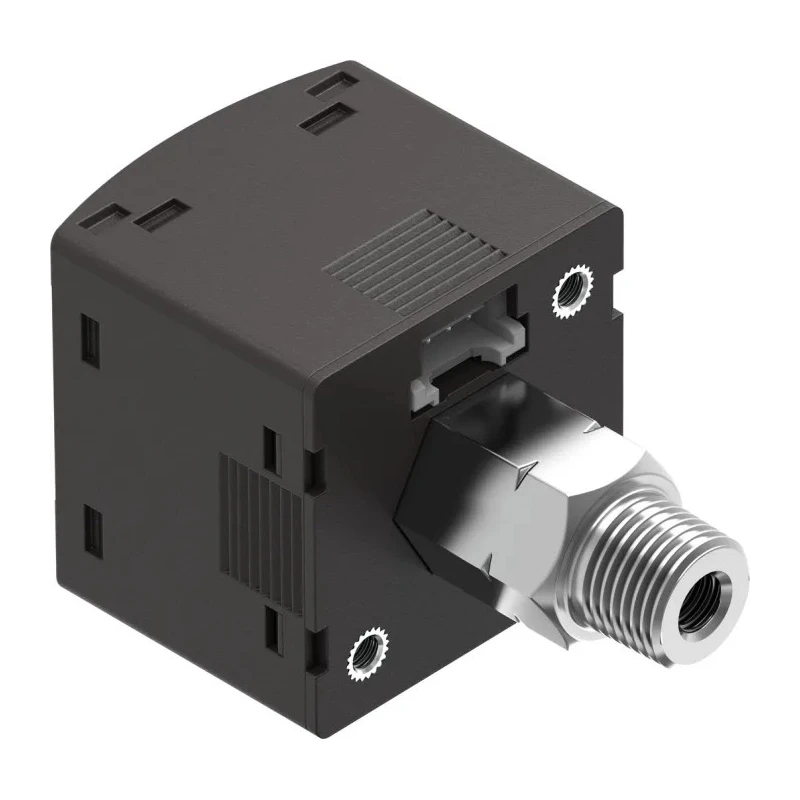

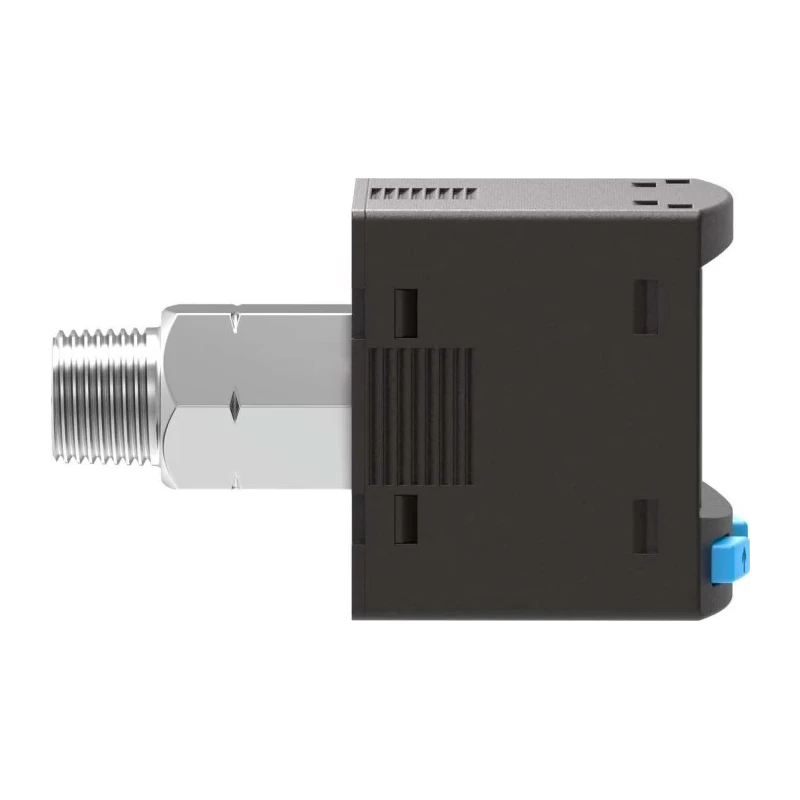

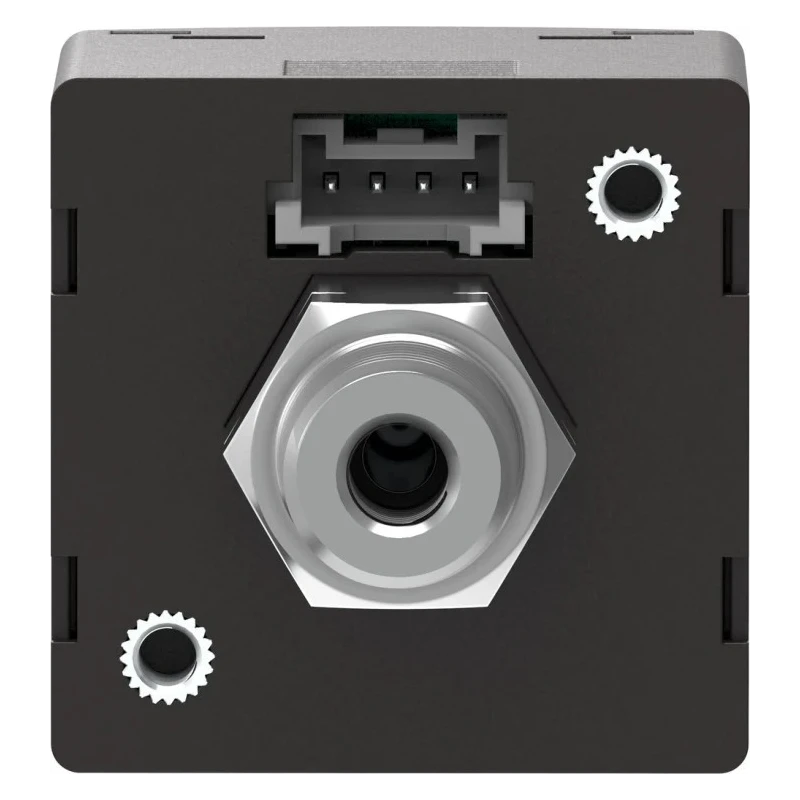

Festo Pneumatic Pressure Sensor IP40 10 bar 30V DC with Digital Display

Name: Festo Pneumatic Pressure Sensor IP40 10 bar 30V DC with Digital Display
Brand: FESTO
SKU: 152205
Price: 183.06 USD
Availability: InStock



Category Pneumatic Pressure Sensors Brand FESTO Condition New

Specifications

Country of Origin	Bulgaria
Voltage	30V dc
Brand	Festo
Maximum Operating Pressure	10 bar
Model	IP40
IP Rating	IP40
Mount Type	Surface, Threaded
Maximum Operating Temperature	50°C
Pressure Type	Differential, Vacuum, Relative Pressure
Switch output	PNP, NPN (2 Output)
Port Size	M5, R 1/8
Minimum Operating Temperature	0°C
Standards/Approvals	RoHS
Connection Thread Standard	R (PT), GPT, NPT
Minimum Operating Pressure	0bar
Suitable Medias	Air

Key Features

Supports measurement of differential, vacuum, and relative pressure in air media.
Equipped with PNP and NPN switch output options for versatile connectivity.
Features R (PT), GPT, and NPT connection thread standards with M5 and R 1/8 port sizes.
Operates reliably within 0 to 50°C temperature range with a maximum pressure of 10 bar.
Includes an illuminated digital LCD display for clear readings in low light conditions.
Robust PA-reinforced housing ensures durability under harsh industrial environments.
Securable with a 4-digit code to prevent unauthorized access or tampering.
Mountable via surface bracket or threaded mount for flexible installation.

Product Description

Festo SPAN-P10R-R18M-PNLK-PNVBA-L1 pneumatic pressure sensor is designed for precise pressure measurement in pneumatic systems using air or inert gases. It supports differential, vacuum, and relative pressure types with a maximum operating pressure of 10 bar and can withstand temperatures up to 50°C. Powered by 30V DC, this sensor ensures stable and reliable performance.

The sensor features an IP40 rating, providing protection against solid objects over 1mm, making it suitable for moderate industrial environments. Its piezoresistive sensing technology delivers high resolution and accuracy with a repetition accuracy of ±0.3% FS.

Connectivity options include PNP and NPN outputs, along with R (PT), GPT, and NPT thread standards, and port sizes M5 and R 1/8, enabling straightforward integration into existing pneumatic setups. Installation is flexible with both surface and threaded mounting methods.

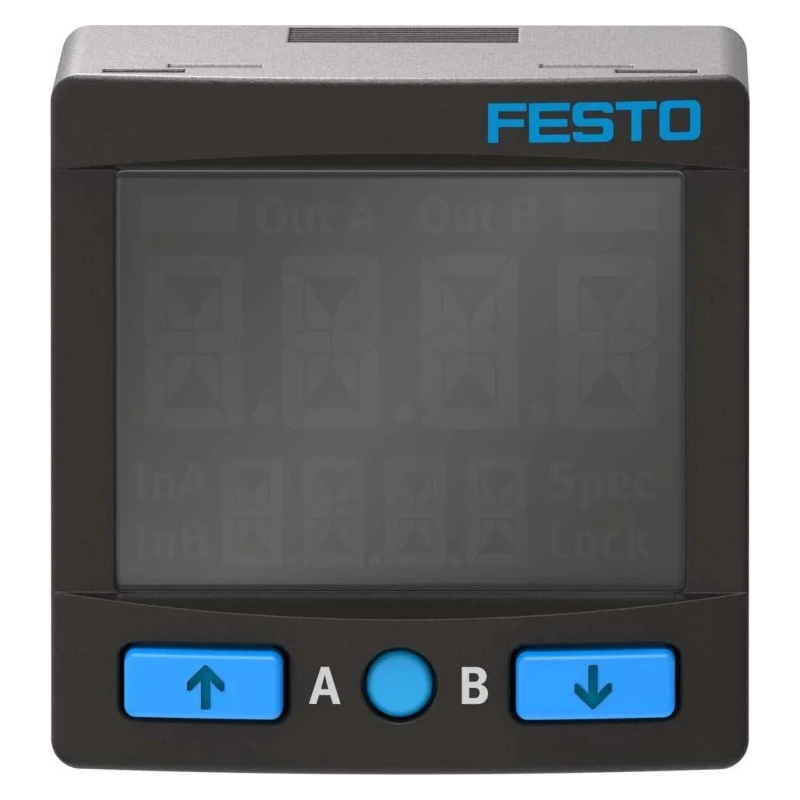

An illuminated digital LCD display provides clear pressure readings in various units such as bar, psi, kPa, and InchH2O, facilitating ease of use even in poor lighting. The durable PA-reinforced housing ensures long service life in tough conditions, and security features include a four-digit code to prevent unauthorized adjustments.

Ideal for automotive manufacturing, robotics systems, and logistics facilities, this Festo sensor supports efficient pressure monitoring and control to maintain optimal system performance and safety.

Measures differential, vacuum, and relative pressure. Supports multiple pressure units for user flexibility. Compatible with industrial pneumatic connection standards. Robust design with PA-reinforced housing for durability.

Easy mounting via thread or surface bracket. Illuminated LCD for clear readings in low light. Security features with four-digit code lock.

Choose this Festo pneumatic pressure sensor for reliable, high-precision monitoring in demanding industrial and manufacturing environments. Browse more products in Pneumatic Pressure Sensors at EnvMart for your application needs.
