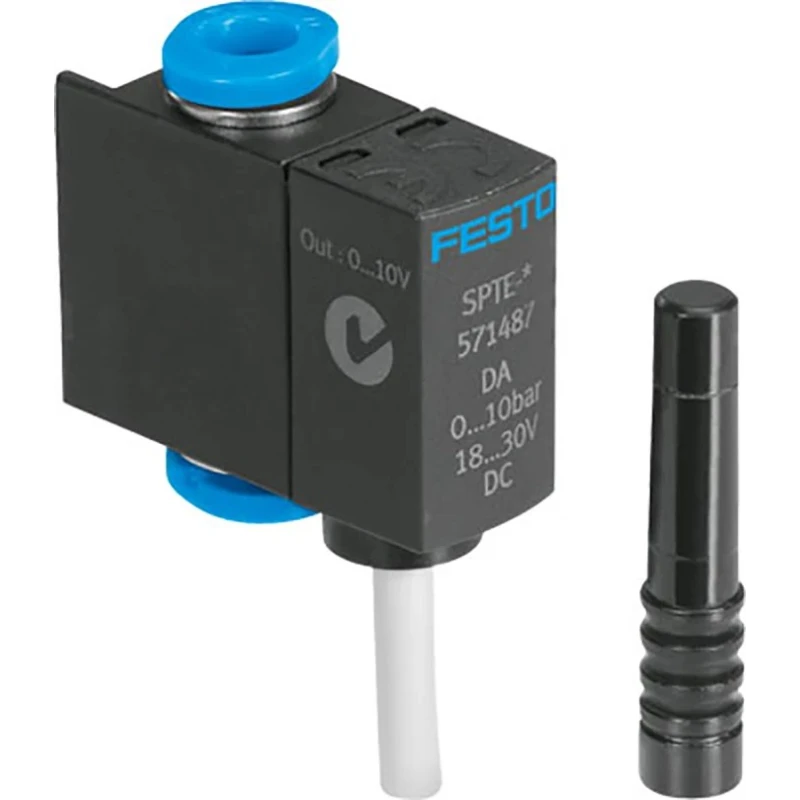

Festo Pressure Sensor Controller IP40 -1 bar 30V 50°C

Festo SPTE-P10R-Q4-B-2.5K Pressure Sensor Controller is designed for precise pneumatic pressure measurement and control in industrial and automation applications. Supporting a range of pressures from 0 bar minimum to -1 bar maximum operating pressure, it provides reliable relative pressure sensing for gas and compressed air media.

This device operates on a 30V DC power supply and is equipped with several versatile switch outputs including IO link, PNP, NPN, and analog voltage outputs ranging from 1 to 5 V and 0 to 10 V, as well as 4 to 20 mA signals for diverse control and monitoring system integration.

The sensor features a push-in 4mm pneumatic connection port with a male plug electrical connection type. Its robust polyamide (PA) reinforced housing is rated IP40, making it suitable for various industrial environments requiring protection against solid objects but not water ingress.

Its compact dimensions of 31.1 mm depth, 24.7 mm height, and 9.8 mm width facilitate installation in confined spaces. The digital display with high-contrast white text on a blue background enables quick reading of measured values with an accuracy of 2% full scale output, enhancing operational safety and efficiency.

The Festo SPTE series is ideal for applications including network monitoring, regulator monitoring, vacuum monitoring, leak tests, and object detection. Its quick switching-point adjustment feature allows fast calibration at the touch of a button, complemented by LED switching status indicators for visual feedback.

Measures relative pressure in gas and compressed air. Provides 2% full scale accuracy for precise pressure monitoring. Supports multiple switch outputs for versatile connectivity. Push-in 4 mm pneumatic port and male plug electrical connection.

Durable PA housing with IP40 rating for industrial use. Compact size fits in tight installations. Digital display enhances usability and monitoring. Suitable for network, vacuum, regulator, and leak detection tasks. Easy and quick switching-point calibration.

As a product designed by Festo, a global leader in automation technology, this pressure sensor controller ensures reliable performance and quality. It is manufactured in Thailand and is part of the SPTE series known for its adaptability and ease of integration into various pneumatic and automation systems.

Explore the range of Pneumatic Pressure Sensors at EnvMart for comprehensive industrial automation solutions and enhanced process control.
