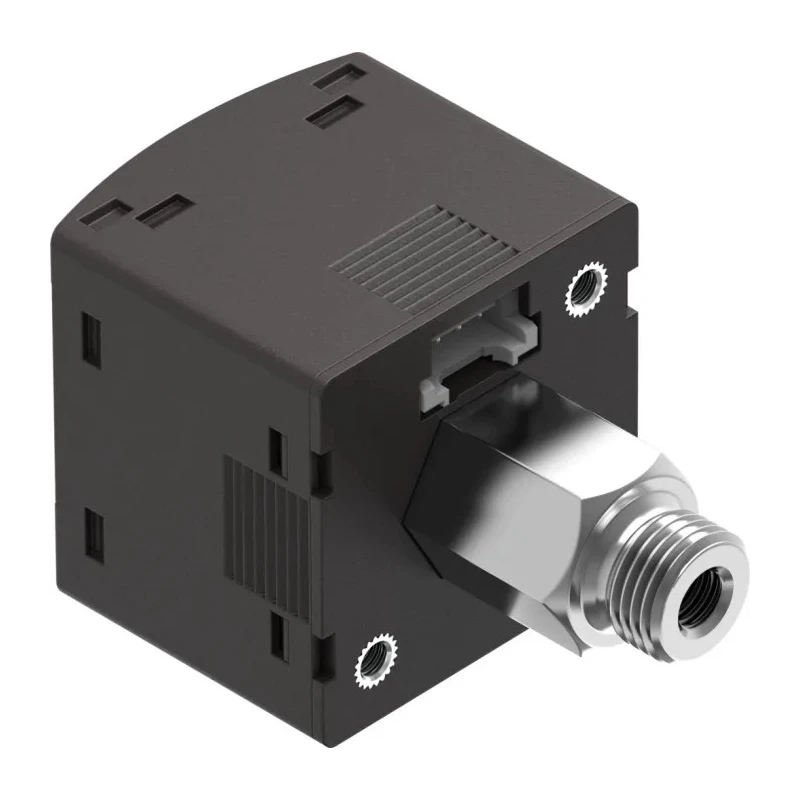

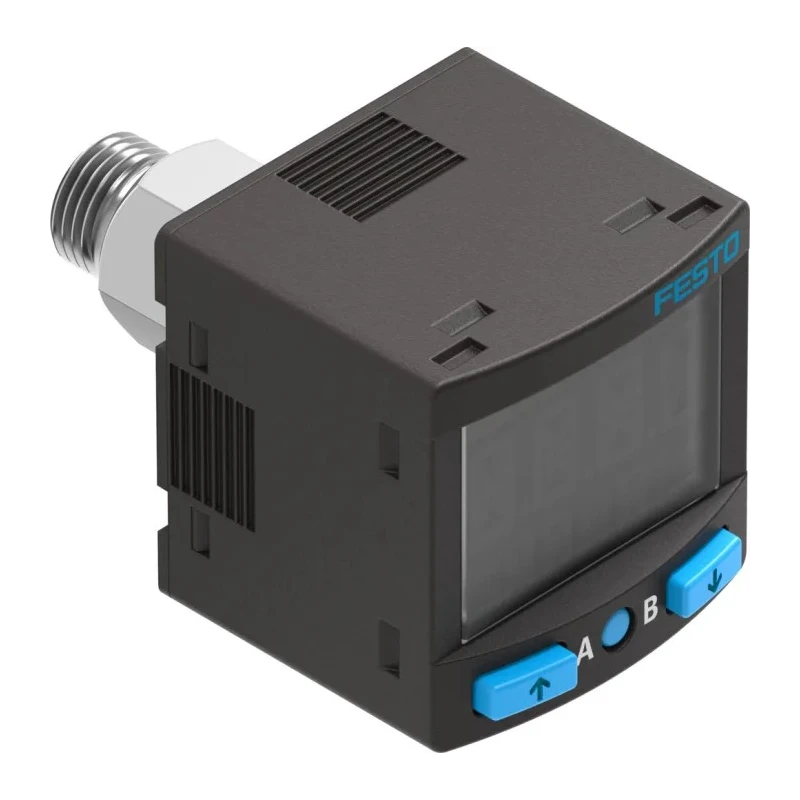

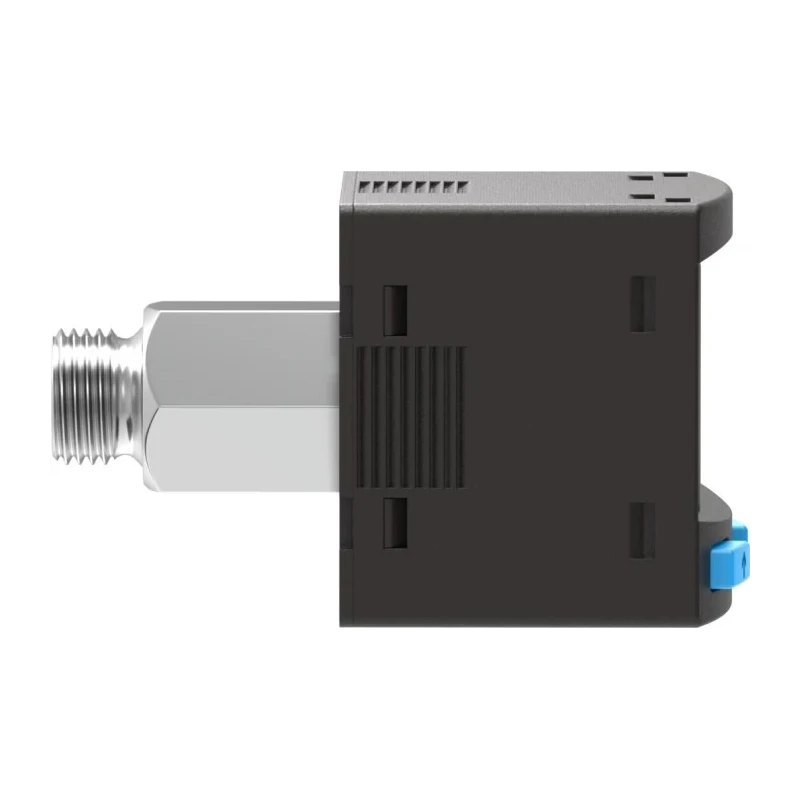

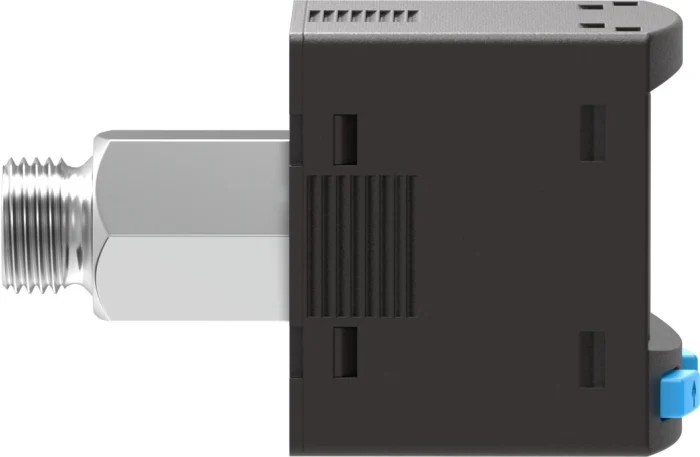

Festo Pneumatic Pressure Sensor , IP40, 5 bar, 15-20 V DC, 50°C

Festo SPAN-V1R-G18M-PN-PN-L1 is a high-precision pneumatic pressure sensor designed for industrial compressed air monitoring and inert gas applications. Featuring an IP40 ingress protection rating, it resists ingress of objects larger than 1 mm, making it well-suited for moderate environments including cleanrooms of class 4 per ISO 14644-1 standards. The sensor reliably operates from 0 to 50 degrees Celsius and can measure pressures from -1 bar up to a maximum operating pressure of 5 bar.

This device incorporates a piezoresistive measurement principle to deliver accurate relative pressure readings. It supports dual NPN and PNP switching outputs, facilitating flexible system integration across varied automation processes. The unit operates with a power supply ranging between 15 to 20 volts DC and includes internal short circuit protection to enhance longevity and safety during operation.

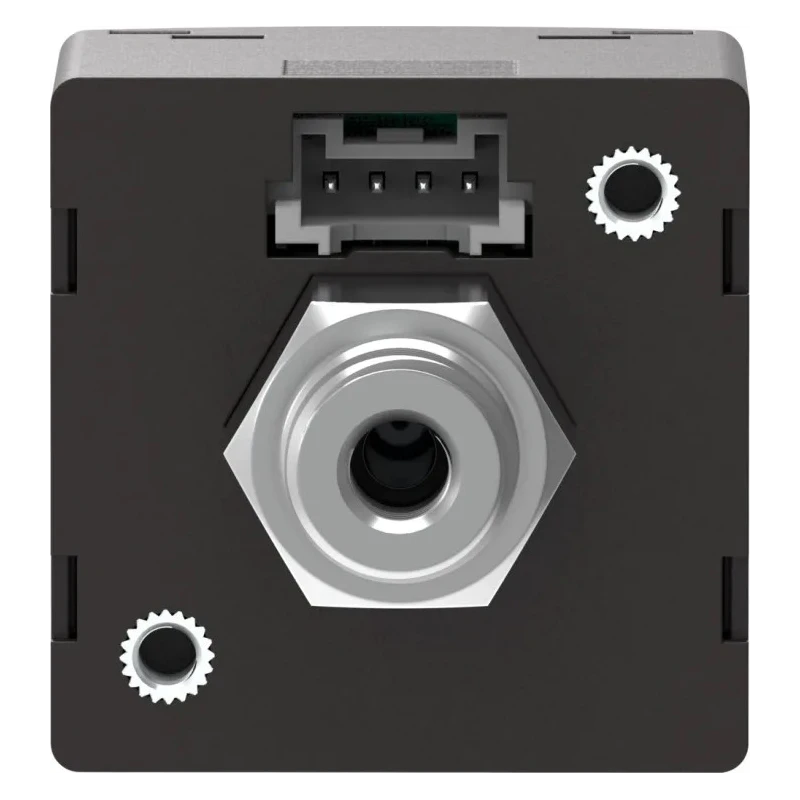

The sensor is compactly built with a height of 43 mm, width of 15 mm, and depth of 30 mm, making it suitable for installations requiring space efficiency. Its mounting via bracket and female port gender connection enable straightforward setup in pneumatic systems. The sensor's housing is constructed using reinforced PA material, while media-contact parts include FPM and high-alloy stainless steel, ensuring compatibility and durability when exposed to compressed air and inert gases.

The threshold pressure value is adjustable through a teach-in process using the integrated display and buttons, offering customization for differing application needs. This sensor is frequently employed in automation, manufacturing, laboratory pneumatic systems, and cleanroom monitoring setups.

Measures relative pressure using piezoresistive technology. Operating temperature from 0 to 50 °C ensures stable performance. Dual NPN and PNP outputs allow versatile switching configurations. Short circuit protection enhances safety and equipment lifespan.

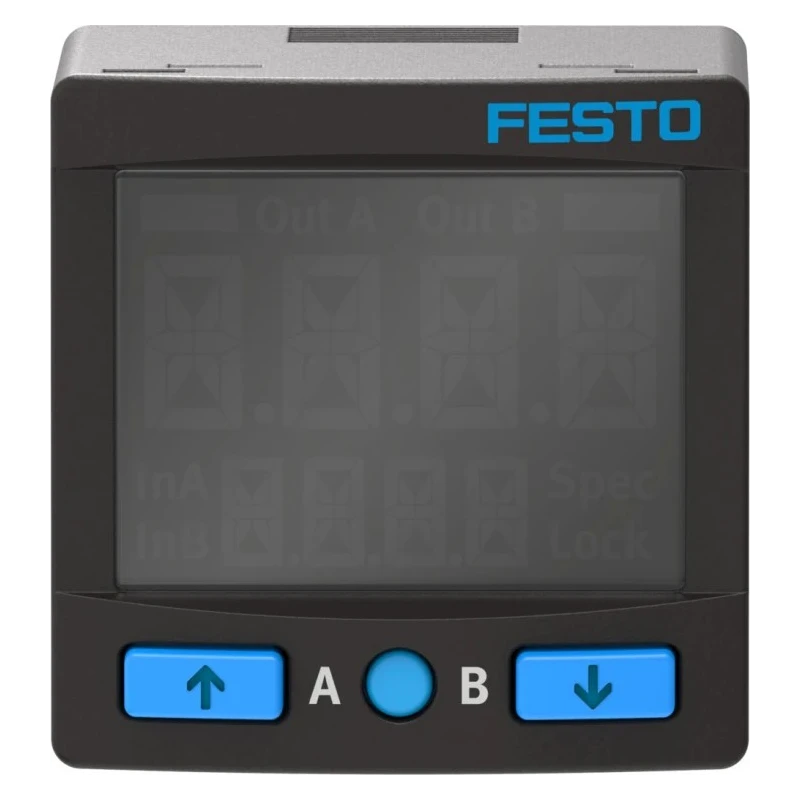

Digital display supporting multiple pressure units facilitates user operation. Robust IP40 rating for protection against solid objects larger than 1 mm. Brackets mount and female port connection simplify installation. Compatible with compressed air and inert gases using high-quality sealing materials.

Ideal for industrial automation, HVAC, laboratory, and cleanroom environments. Complies with RoHS directives for environmental compliance. Explore more Pneumatic Pressure Sensors and automation products at EnvMart to fulfill your industrial needs efficiently and reliably.
