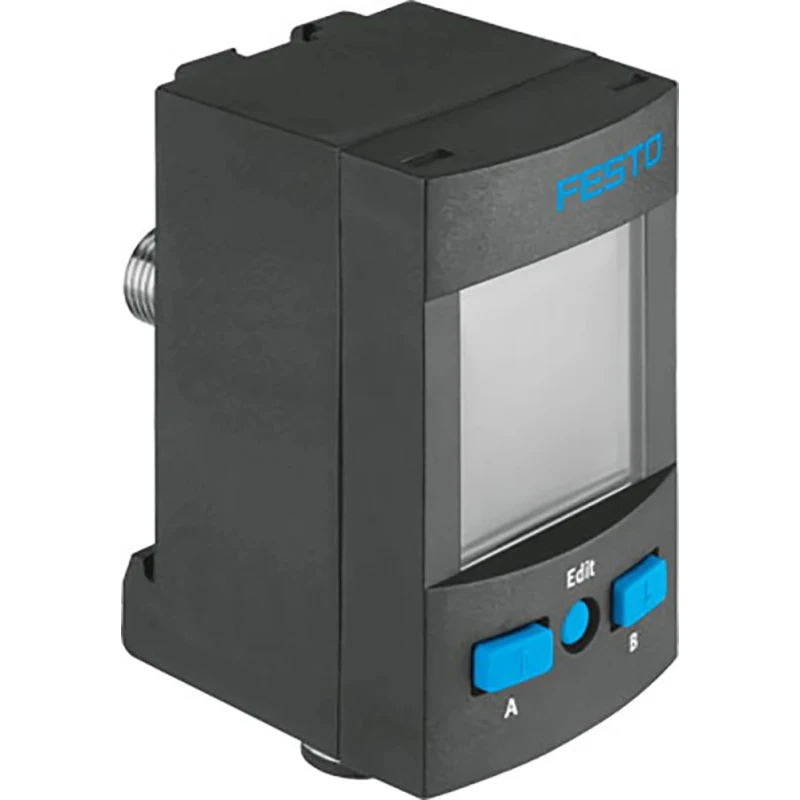

Festo Pneumatic Pressure Sensor, IP67 IP65 Rated, 10 bar Max Operating Pressure, 15V/30V SPAU-P10R-T-R18M-L-PNLK-PNVBA-M12D

Free Delivery in India | Lowest Global Shipping Charges

Festo Pneumatic Pressure Sensor, IP67 IP65 Rated, 10 bar Max Operating Pressure, 15V/30V SPAU-P10R-T-R18M-L-PNLK-PNVBA-M12D

Name: Festo Pneumatic Pressure Sensor, IP67 IP65 Rated, 10 bar Max Operating Pressure, 15V/30V SPAU-P10R-T-R18M-L-PNLK-PNVBA-M12D
Brand: FESTO
SKU: 152201
Price: 266.71 USD
Availability: InStock



Category Pneumatic Pressure Sensors Brand FESTO Condition New

Specifications

Country of Origin	Bulgaria
Voltage	15, 30V dc
Brand	Festo
Maximum Operating Pressure	10 bar
Height	43mm
Model	SPAU-P10R-T-R18M-L-PNLK-PNVBA-M12D
Depth	30mm
IP Rating	IP67, IP65
Width	15mm
Mount Type	Bracket
Maximum Operating Temperature	50°C
Pressure Type	Positive
Switch output	PNP, NPN
Port Size	R 1/8
Minimum Operating Temperature	0°C
Standards/Approvals	RoHS
Electrical Connection Type	Plug Socket
Minimum Operating Pressure	0bar
Port Gender	Female
Suitable Medias	Air, Gas

Key Features

Features IP67 and IP65 ingress protection ensuring waterproof and dust-tight performance.
Operates on 15V and 30V DC voltage suitable for industrial environments.
Equipped with illuminated LCD for clear pressure readings even in low light.
Switch output options include PNP and NPN for flexible integration.
Compact dimensions with 43mm height, 30mm depth, and 15mm width.
Mount type is bracket with threaded female port size R 1/8 for easy installation.
Durable operation between 0°C to 50°C maximum operating temperature.
Programmable via Teach-In, IO-Link, or on-device display and buttons for customization.

Product Description

Festo SPAU-P10R-T-R18M-L-PNLK-PNVBA-M12D pneumatic pressure sensor offers precise pressure monitoring for compressed air and gas systems with a pressure range from 0 to 10 bar. Designed for industrial applications, it features robust IP67 and IP65 ratings to protect against dust and water ingress, making it suitable for harsh environments.

The sensor supports dual voltage operation with 15V and 30V DC supply, and includes a switchable normally open/normally closed function to adapt to different system requirements. Installation is simple via the standard bracket mount and female R 1/8 threaded port. The integrated illuminated LCD enables easy real-time pressure readings in various lighting conditions.

This unit is programmable through multiple methods including Teach-In, IO-Link, or directly using the display and controls, allowing fine tuning to operational needs. The sensor's compact size (43mm height, 30mm depth, 15mm width) ensures installation flexibility even in constrained spaces.

Applications span across manufacturing assembly lines, chemical processing plants, and drink production facilities, where reliable pressure detection is critical for equipment safety and process control. The durable construction and RoHS compliance ensure long-term industrial usability.

Ingress protection ratings IP67 and IP65 for rugged use. Operating voltage options of 15V and 30V DC. Switch outputs PNP and NPN for versatile connectivity. Standard R 1/8 female port and bracket mount type. Wide temperature range operating from 0°C up to 50°C.

Compact dimensions optimized for industrial setups. Illuminated LCD for enhanced visibility of pressure data. Programmable settings including Teach-In and IO-Link support. Ideal for pneumatic systems in manufacturing, chemical, and beverage sectors.
