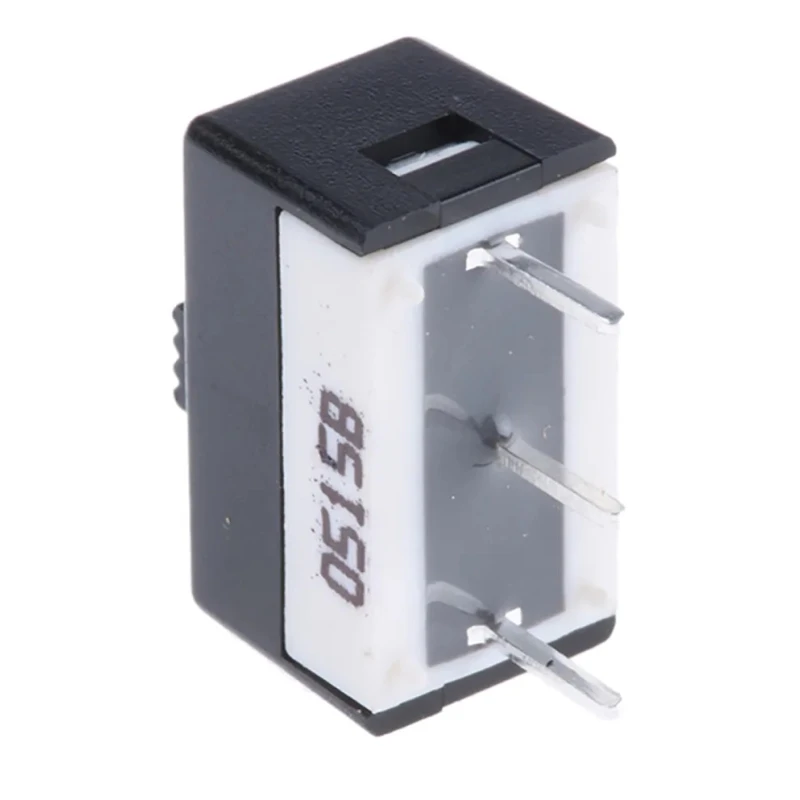

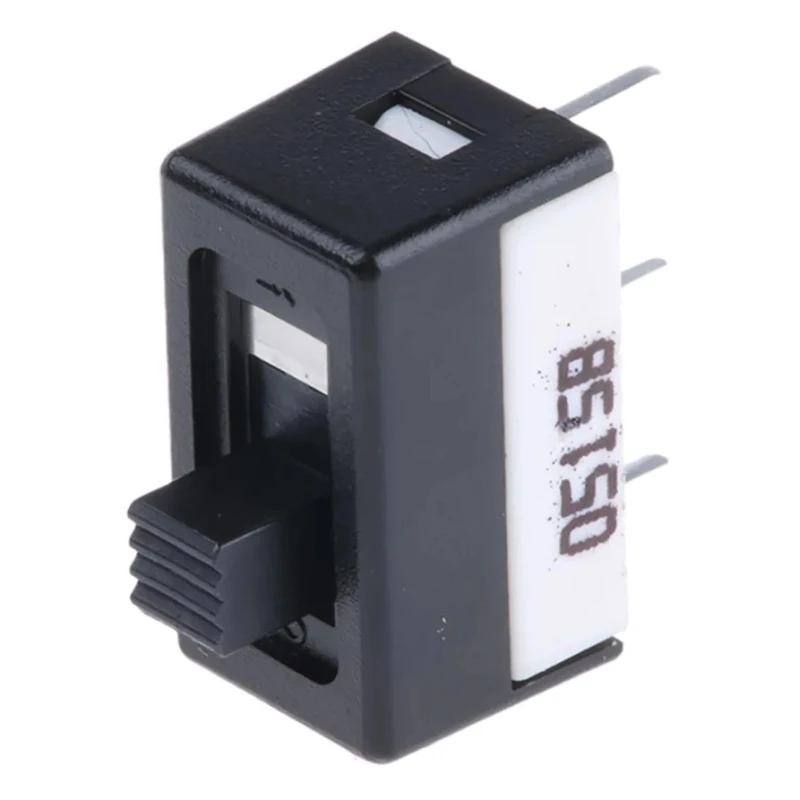

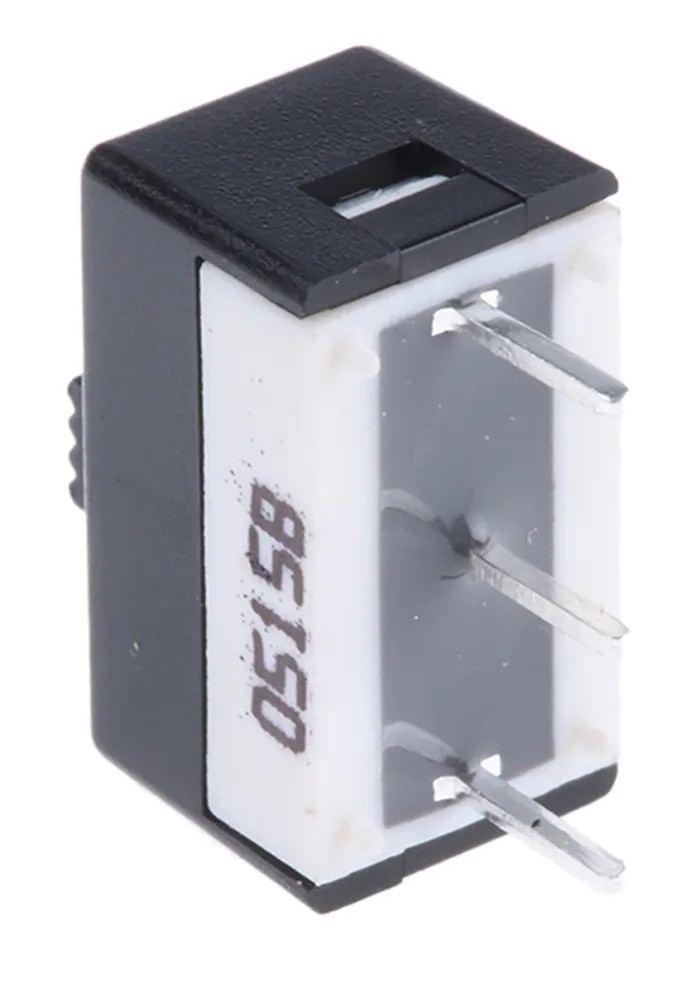

KNITTER-SWITCH PCB Slide Switch SPST Latching 3A 28V DC 250V AC Nylon MSS3112D

KNITTER-SWITCH MSS3112D PCB Slide Switch is a compact, durable latching slide switch designed for reliable on/off control in electronic circuits. Featuring a Single Pole Single Throw (SPST) contact configuration, it offers tactile latching operation with a strong nylon actuator. Suitable for solder mounting on printed circuit boards (PCBs), this switch supports a contact current of 3A for DC voltage of 28V and AC voltage of 250V.

Constructed with a black nylon actuator and white nylon base, this switch combines robust materials to provide long-lasting service in applications ranging from hand-held products, instrumentation, white goods, medical equipment, to IT and telecom devices. Its mechanical life rating of 20,000 operations ensures extended durability under normal usage.

The device's dimensions are 14mm in length, 7.7mm width, and 7.8mm depth, making it ideal for compact electronic assemblies. It operates reliably within an ambient temperature range of -40°C to 85°C, accommodating diverse environmental conditions. The switch features On-On configuration for positive on/off switching states, with solder terminals for secure PCB connection.

This product complies with RoHS standards, promoting environmentally safe electronic component assembly without hazardous substances. Its lead-free solderability at 260°C for 5 seconds offers manufacturing convenience and reliability.

The switch features a Single Pole Single Throw (SPST) contact configuration. Designed for PCB solder mounting with a durable nylon actuator. Operates with a latching mechanism ensuring stable on/off positions. Rated for 3 amps contact current at 28V DC and 250V AC voltages.

Compact dimensions: 14mm length, 7.7mm width, and 7.8mm depth. Mechanical life expectancy of 20,000 operations supports long-term use. Compatible with applications requiring a toggle On-On switch configuration. Operating temperature range from -40°C up to 85°C ensures versatility in various environments.

Non-illuminated switch suitable for industrial and commercial electronic devices. Lead-free and RoHS compliant for environmental safety.

This slide switch is suited for electronic, industrial automation, telecommunications, instrumentation, and medical device applications requiring compact, reliable switching solutions. Explore more components from KNITTER-SWITCH and related Slide Switch products on EnvMart for your technical and industrial assembly needs.
