Nexperia Resistor-Equipped Transistor NPN 100 mA 50 V 3-Pin DFN1110D-3 PDTC124EQB-QZ

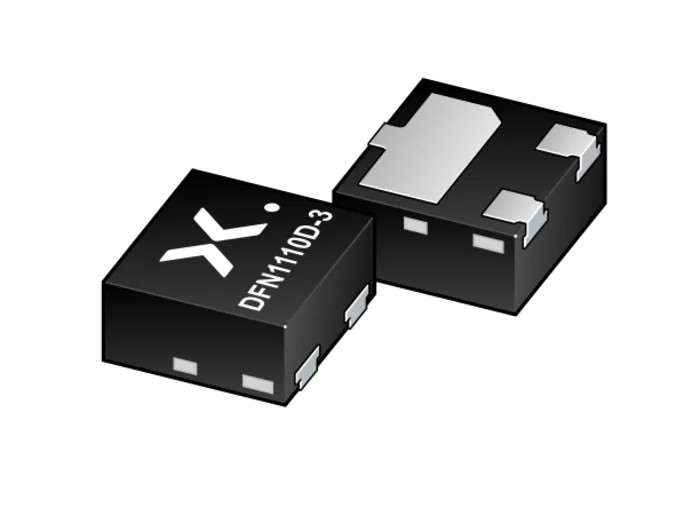

The Nexperia PDTC124EQB-QZ Resistor-Equipped Transistor is an advanced NPN bipolar transistor engineered for compact surface-mount applications. It features a 3-pin DFN1110D-3 plastic package with a low profile height of 0.5 mm, optimized for space-constrained electronic circuits and automated production.

This device integrates built-in resistors, simplifying circuit design by reducing external component requirements and lowering overall system cost. It supports a maximum DC collector current of 100 mA and a maximum collector-emitter voltage rating of 50 V, making it suitable for switching and amplification in digital and general-purpose circuits.

With a maximum transition frequency (f t) of 230 MHz, this transistor can operate effectively in high-speed switching applications. Its operating temperature range spans from -55 °C to 150 °C, ensuring reliability across diverse environments including automotive and industrial sectors.

The transistor meets RoHS compliance for environmental safety and adheres to the stringent automotive standard AEC-Q101, making it apt for automotive electronics usage.

Its small footprint and surface mount design enhance PCB layout flexibility and support high-density circuit assemblies. The device is particularly useful for controlling IC inputs, switching loads, and replacing traditional BC857 transistors as a cost-efficient alternative.

Built-in resistors reduce component count and simplify design. Low profile 0.5 mm DFN package suitable for compact designs. Maximum collector current of 100 mA with 50 V voltage capability. High transition frequency of 230 MHz for fast switching.

Wide temperature range of -55 °C to 150 °C ensures robust operation. Compliant with RoHS and automotive AEC-Q101 standards. Ideal for digital, industrial, and automotive electronic applications. Surface mount package lowers manufacturing costs and improves assembly efficiency.

Perfect for controlling IC inputs and switching low-level loads. Cost-saving replacement for BC857 series digital transistors. Explore the Nexperia range of Bipolar Transistors at EnvMart for reliable, high-performance semiconductor solutions designed for modern electronics manufacturing.
