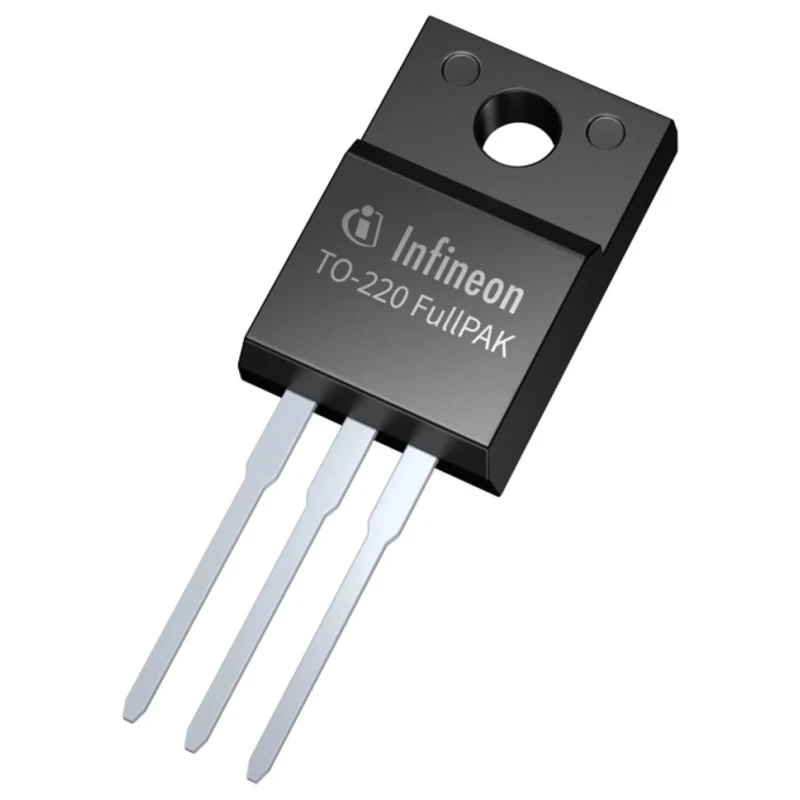

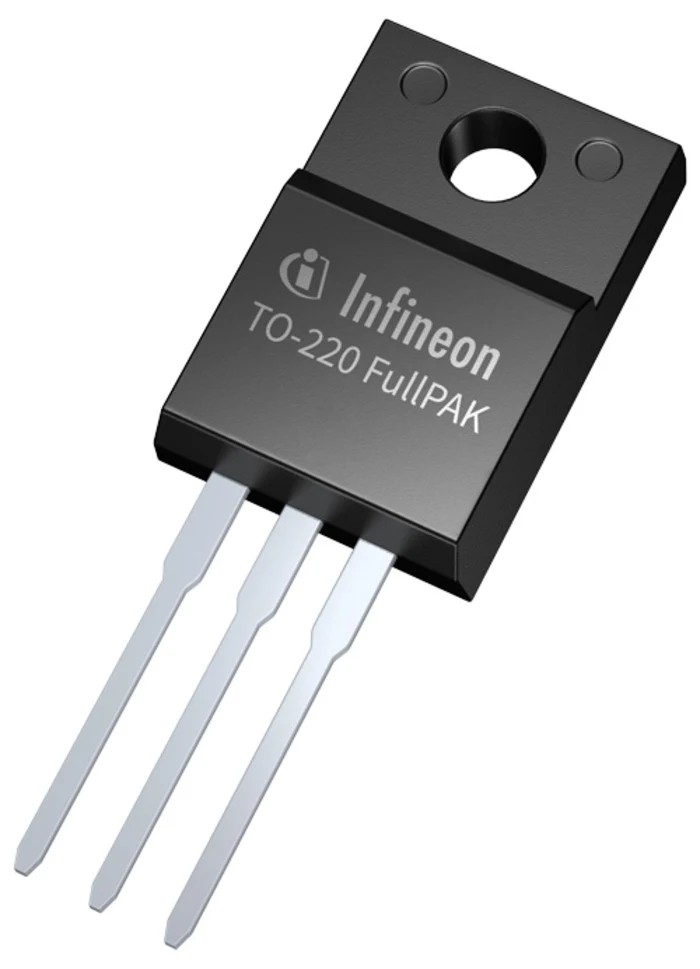

Infineon N-Channel Power MOSFET, 84 A Drain Current, 40 V Drain Source Voltage, TO-220 3-Pin Surface Mount IPA029N06NXKSA1

Infineon IPA029N06NXKSA1 is a N-Channel Power MOSFET in a TO-220 3-pin surface mount package designed for high efficiency power management and switching applications. It supports a maximum continuous drain current of 84 A and a drain-source voltage of 40 V, making it ideal for demanding industrial use.

This MOSFET offers excellent performance with a low drain-source resistance of 2.9 mΩ to reduce conduction losses and improve overall efficiency. It supports a maximum power dissipation of 81 W, enabling reliable operation under high load conditions and elevated temperatures from -55°C up to 175°C.

The device’s fast switching capability is facilitated by a typical gate charge of 80 nC at 8 V gate voltage, which helps optimize switching speed and reduce power dissipation in electronic circuits. Its maximum gate-source voltage rating of 20 V safeguards the transistor from excessive voltages at the gate terminal.

Applications include motor control systems, solar micro-inverters, fast switching DC-DC converters, and other industrial electronics requiring robust and efficient switching components. Through-hole mounting technology simplifies installation and repair while enabling strong mechanical support.

High continuous drain current rating of 84 A suitable for heavy loads. Maximum drain-source voltage of 40 V ensuring reliable operation in power circuits. TO-220 3-pin package compatible with surface mount technology. Maximum power dissipation of 81 W to handle high power applications.

Operating temperature range from -55°C to 175°C for industrial environments. Low drain-source resistance of 2.9 mΩ to minimize power losses. Typical gate charge of 80 nC enabling fast switching. Maximum gate-source voltage rating of ±20 V protecting the gate from voltage spikes.

Forward voltage drop of 1.2 V for efficient conduction. RoHS compliant ensuring environmental safety.

This product is optimized for multiple industrial applications such as industrial motor controllers, solar power systems, power supply units, and DC-DC converters. It is engineered to ensure system cost reduction, high power density, and reduced voltage overshoot for robust and scalable electronic designs.
