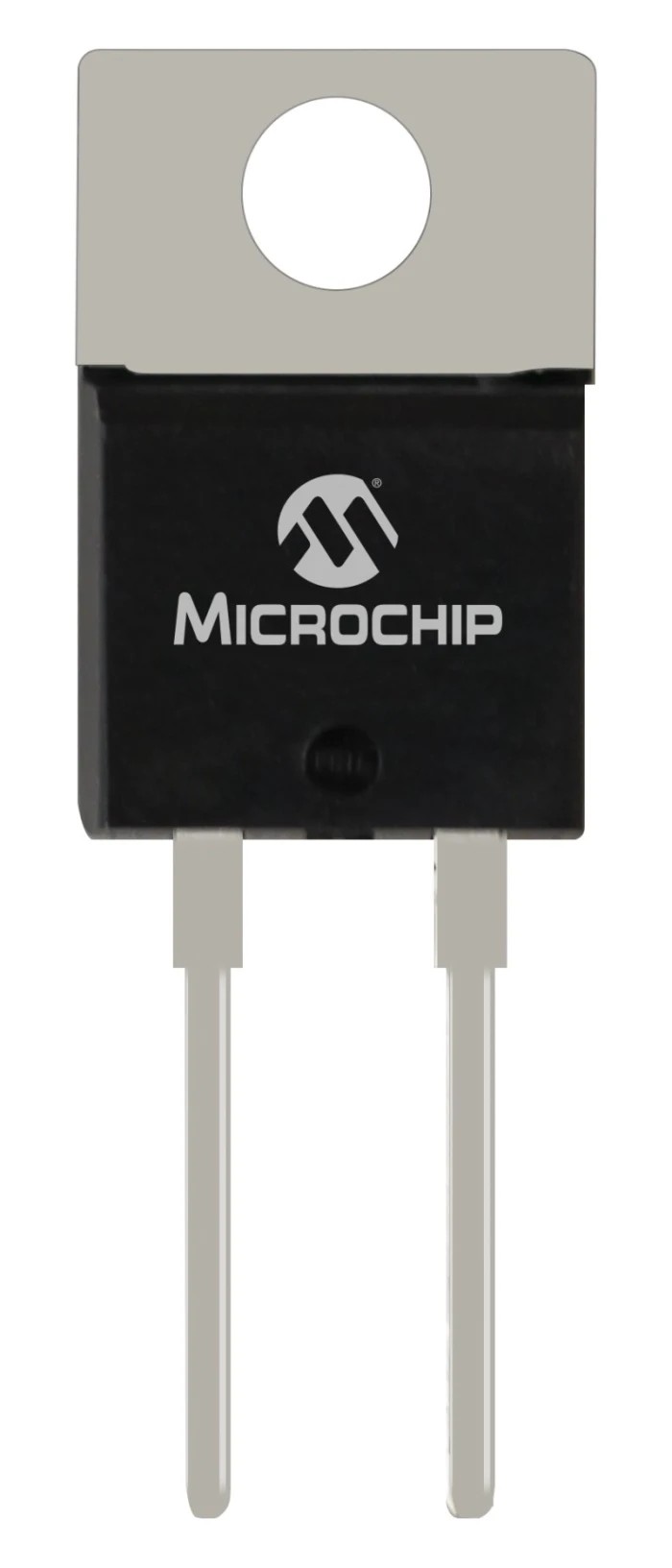

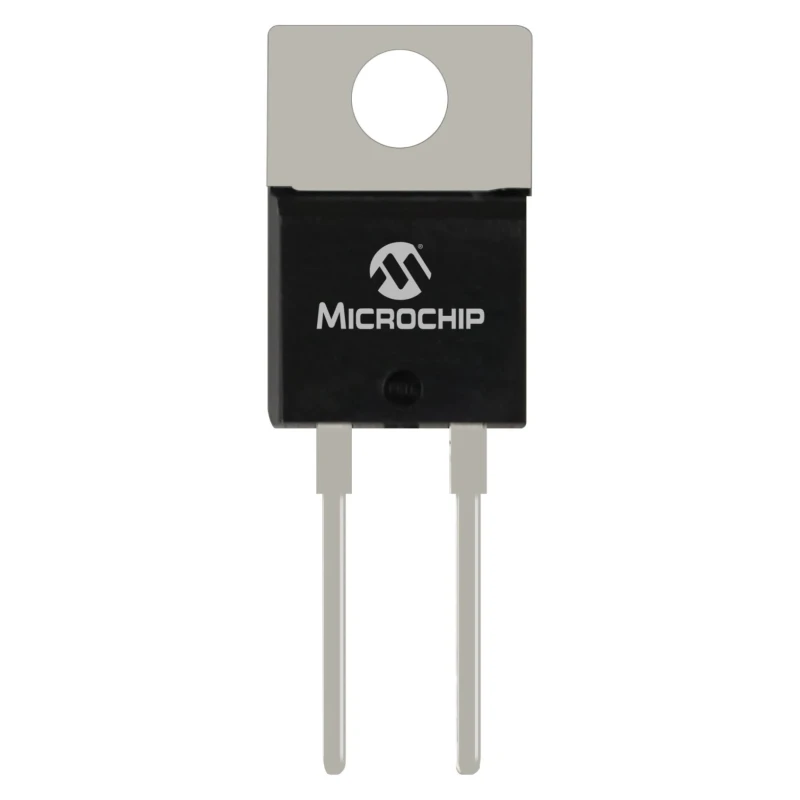

Microchip 700 V 10 A Schottky Barrier Schottky Diode TO-220 MSC010SDA070K
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | MSC010SDA070K |
| Mount Type | Through Hole |
| Series | MSC0 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 700V |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 58A |
| Maximum Forward Voltage Vf | 1.8V |
Key Features
- Designed for high switching frequency applications.
- Features low forward voltage and low leakage current.
- Supports maximum continuous forward current of 10 A.
- Peak reverse repetitive voltage of 700 V ensures robustness.
- Wide operating temperature range from -55°C to 175°C.
- Peak non-repetitive forward surge current rating of 58 A.
- RoHS compliant and avalanche energy rated for reliability.
- Suitable for power factor correction, freewheeling, and anti-parallel diode uses.
Product Description
Microchip MSC010SDA070K is a Schottky Barrier Schottky Diode engineered for high performance in power electronic applications. It comes in a TO-220 package and supports a maximum continuous forward current of 10 A and peak reverse repetitive voltage of 700 V, making it suitable for demanding industrial and commercial applications.
This diode features low forward voltage and negligible reverse recovery, reducing losses and improving efficiency during switching operations. Its wide operating temperature range from -55°C to 175°C allows it to operate reliably under harsh conditions.
Typical applications include power factor correction circuits, freewheeling diodes in power converters, and anti-parallel diode configurations in various power electronics systems. The device is avalanche energy rated and RoHS compliant, ensuring compliance with environmental regulations and providing long-term durability.
Designed for high switching frequency applications. Features low forward voltage and low leakage current. Supports maximum continuous forward current of 10 A. Peak reverse repetitive voltage of 700 V ensures robustness. Wide operating temperature range from -55°C to 175°C.
Peak non-repetitive forward surge current rating of 58 A. RoHS compliant and avalanche energy rated for reliability. Produced and tested to Microchip quality standards.
This product is ideal for use in industrial electronics, power supply units, renewable energy systems, and automotive electronics where efficient, low-loss rectification is required. Select Microchip MSC010SDA070K for reliable performance and long service life.
Explore other semiconductor devices and Schottky diodes on EnvMart for comprehensive electronic component solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Microchip MSC010SDA070K is 10 A.
This model has a peak reverse repetitive voltage rating of 700 V.
The operating temperature range for the MSC010SDA070K is from -55°C to 175°C.
It comes in a TO-220 package type.
The peak non-repetitive forward surge current rating for this diode is 58 A.
Yes, the Microchip MSC010SDA070K is RoHS compliant.
The maximum forward voltage for this model is 1.8 V.
It is suitable for applications such as power factor correction, freewheeling diodes in power converters, and anti-parallel diode configurations.
This model is a Schottky rectifier.
The country of origin for the MSC010SDA070K is India.
This diode belongs to the MSC0 series.
The mount type for the Microchip MSC010SDA070K is through hole.
