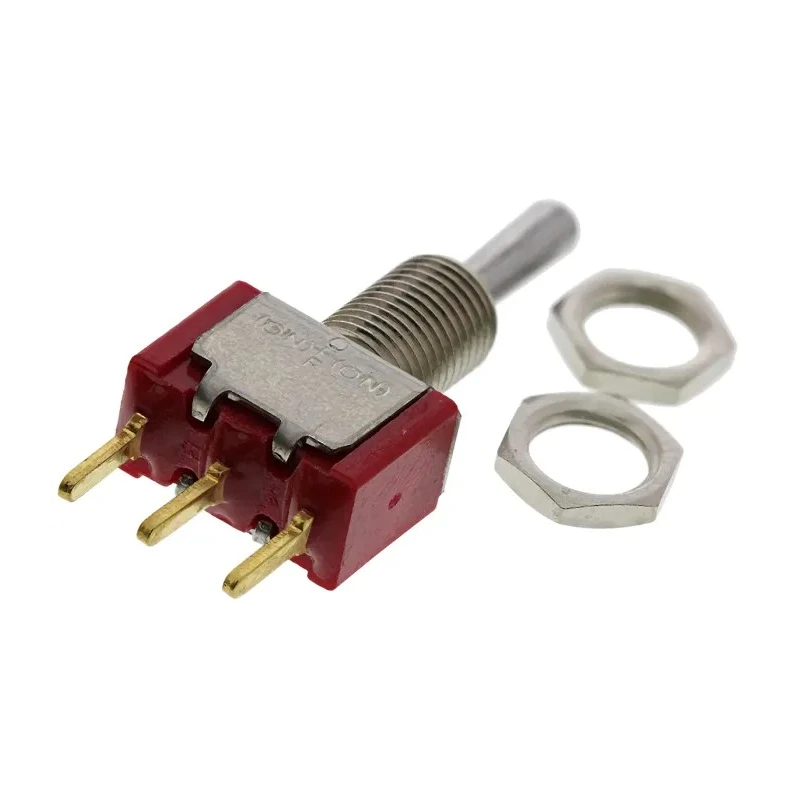

TE Connectivity Toggle Switch PCB Mount SPDT On-Off-On 28 V dc 115 V ac 3-1825137-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| IP Rating | IP67 |
| Width | 0.27in |
| Mount Type | PCB |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | (On)-Off-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 115V ac |
| Actuator Material | Phenolic |
Key Features
- Features through hole terminals for secure PCB mounting.
- Contact current rating is 400mA suitable for low power applications.
- IP67 rated for protection against dust and water ingress.
- The actuator is made of phenolic material with length of 10.41mm.
- Operating temperature range from -30°C to 85°C for versatile environments.
- Panel cutout size is 6.35 mm for standard installation.
- Epoxy sealed terminals and stainless steel frame ensure durability.
- Part of the Gemini A series compliant with RoHS standards.
Product Description
TE Connectivity model 3-1825137-6 is a high-quality toggle switch designed for PCB mount applications requiring a single pole double throw (SPDT) On-Off-On switch configuration. It operates effectively at a contact DC voltage of 28 V and contact AC voltage of 115 V, rated for a contact current of 400mA.
The switch features through hole terminal type ensuring reliable soldering and mounting on printed circuit boards. Its construction includes epoxy sealed terminals and a stainless steel frame with brass tin plated solder support for enhanced mechanical stability and corrosion resistance. The actuator is phenolic, measuring 10.41 mm in length, providing robust manual operation.
With an IP67 protection rating, the switch is highly resistant to dust and water ingress, suitable for industrial, automation, and electrical equipment operating in harsh environments. It supports operating temperatures ranging from -30°C to 85°C, making it adaptable for varied climatic conditions.
The Gemini A series toggle switch offers a panel cutout size of 6.35 mm and compact dimensions (0.5 inches length, 0.27 inches width, and 0.35 inches height), enabling space-efficient integration into electronic devices. This RoHS compliant product meets environmental and safety regulations.
Through hole terminals for secure PCB mounting. 400mA current rating suitable for control circuits. IP67 rated for protection against dust and water. Epoxy sealed terminals enhance durability. Phenolic actuator material for reliable operation.
Wide operating temperature range (-30°C to 85°C). Compact size for tight installations. Complies with RoHS environmental standards. Part of the Gemini A product series.
This toggle switch is ideal for industrial automation, electrical equipment, manufacturing machinery, and other technical applications requiring reliable manual switching. Explore more TE Connectivity products and Toggle Switch solutions on EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single pole double throw (SPDT) On-Off-On contact configuration.
It operates at a contact DC voltage of 28 V and a contact AC voltage of 115 V.
The switch has a maximum contact current rating of 400mA, suitable for low power applications.
It has an IP67 rating, providing protection against dust and water ingress.
The operating temperature range is from -30°C to 85°C, making it suitable for various environments.
The dimensions are 0.5 inches in length, 0.27 inches in width, and 0.35 inches in height.
It features through hole terminals for secure PCB mounting.
The required panel cutout size for installation is 6.35 mm.
The actuator is made of phenolic material, with a length of 10.41 mm.
Yes, it is compliant with RoHS standards, ensuring it meets environmental regulations.
This model is part of the Gemini A series of toggle switches.
It is suitable for industrial automation, electrical equipment, and manufacturing machinery requiring reliable manual switching.
