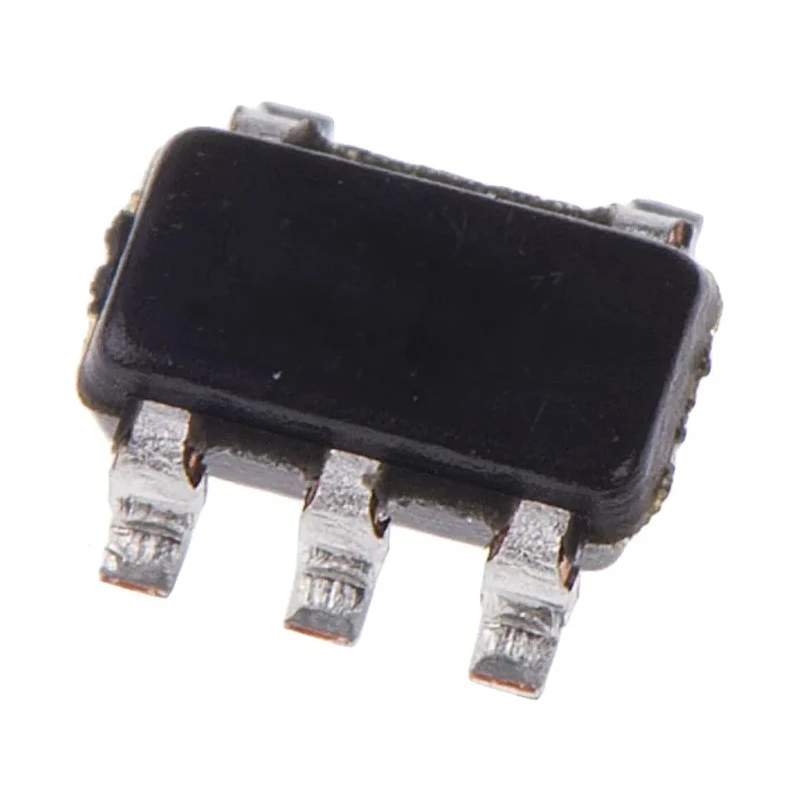

STMicroelectronics 4-Element Uni-Directional TVS Diode 400 W, 5-Pin SOT-23 ESDA6V1SC5

STMicroelectronics ESDA6V1SC5 is a 4-element Uni-Directional Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronics from voltage transients and Electrostatic Discharge (ESD) events. The device features a compact 5-pin SOT-23 surface mount package, enabling easy integration into densely packed circuit boards.

With a peak pulse power dissipation of 400 W, the ESDA6V1SC5 can handle high energy spikes, making it suitable for protecting telecom equipment, automotive electronics, industrial controls, and consumer devices. Its common anode diode configuration with four elements provides efficient clamping of voltage surges.

The TVS diode has a minimum breakdown voltage (Vbr) of 6.1 V and a maximum reverse stand-off voltage (Vwm) of 5.2 V, ensuring accurate and reliable suppression. It withstands peak pulse currents (Ippm) up to 18 A and operates safely across a broad temperature range from -40°C to +125°C, meeting demanding industrial requirements.

The device offers low reverse leakage current of 20 μA, thereby minimizing power loss and improving overall efficiency. It is designed to support automated manufacturing environments with a surface mount mount type and a small form factor of 3 mm length, 1.75 mm width, and 1.3 mm height.

Provides Uni-Directional transient voltage suppression for enhanced circuit protection. Features common anode configuration with four elements per chip. Compact 5-pin SOT-23 surface mount package suitable for automated assembly.

High energy handling with 400 W peak pulse power dissipation. Wide operating temperature range from -40°C to +125°C for industrial applications. Low maximum reverse leakage current of 20 μA for energy efficiency. Meets ESD protection requirements to safeguard electronics from electrostatic discharge.

Encapsulated in a small form factor (3 mm x 1.75 mm x 1.3 mm) for space-constrained designs. Suitable for automotive, industrial, telecom, and consumer electronics protection.

This STMicroelectronics TVS diode is part of the ESDA series, well-known for reliable transient voltage suppression and ESD protection. It ensures the longevity and safety of sensitive semiconductor components in harsh electrical environments.
