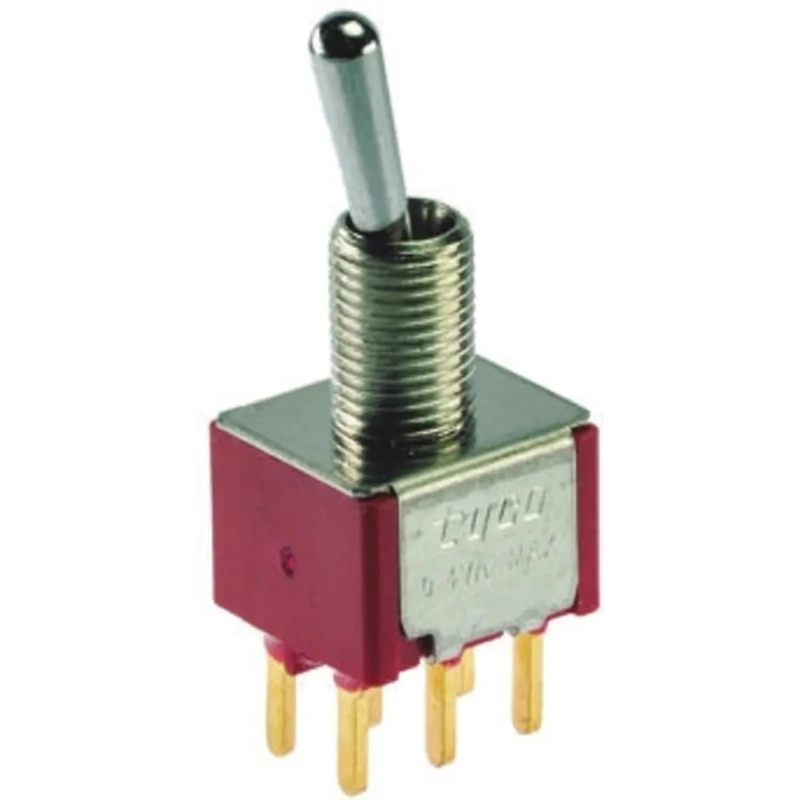

TE Connectivity Toggle Switch, PCB Mount On-Off-On DPDT Through Hole Terminal 28 V dc 120 V ac 2-1825139-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-Off-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 120V ac |
| Actuator Material | Phenolic |
Key Features
- Offers reliable On-Off-On switch operation suitable for various PCB mounting needs.
- Double Pole Double Throw (DPDT) contact configuration for versatile circuit control.
- Rated for 5A switch contact current, ensuring robust electrical performance.
- Through hole terminal type with an epoxy sealed terminal for enhanced durability.
- IP67 rated for protection against dust and immersion, suitable for harsh environments.
- Phenolic actuator material and stainless steel frame providing mechanical strength.
- Operating temperature range from -30°C to 85°C for wide industrial applicability.
- Compact panel cutout size of 6.35 mm and actuator length of 10.41 mm for space efficiency.
Product Description
TE Connectivity 2-1825139-3 Toggle Switch is a high-quality PCB mount toggle switch featuring On-Off-On operation with a Double Pole Double Throw (DPDT) contact configuration. It supports a contact voltage of 28 V dc and 120 V ac, rated at 5A contact current, making it suitable for a range of electrical and automation uses.
This toggle switch has a robust build with an epoxy sealed terminal and stainless steel frame combined with brass tin plated solder supports, ensuring long-lasting reliability in demanding industrial environments. The actuator is constructed from phenolic material, offering durability with an actuator length of 10.41 mm and compact panel cutout dimension of 6.35 mm, making it ideal for efficient PCB integration.
The device is rated IP67 for ingress protection, suitable for applications requiring resistance to dust and water immersion. It can operate in a broad temperature range from -30°C to 85°C, accommodating various industrial and commercial conditions.
Designed to meet RoHS compliance, the switch is environmentally safe and reliable for manufacturing, industrial, HVAC, and automation systems including laboratory and control panel applications. This product supports robust switching needs with break-before-make contact timing and epoxy sealed terminals.
Ideal for usage in electronics & electrical assemblies, the toggle switch ensures precise switching control and durability required for advanced electronic equipment, industrial automation, and commercial products.
Offers reliable On-Off-On switch operation suitable for various PCB mounting needs. Double Pole Double Throw (DPDT) contact configuration for versatile circuit control. Rated for 5A switch contact current, ensuring robust electrical performance.
Through hole terminal type with an epoxy sealed terminal for enhanced durability. IP67 rated for protection against dust and immersion, suitable for harsh environments. Phenolic actuator material and stainless steel frame providing mechanical strength.
Operating temperature range from -30°C to 85°C for wide industrial applicability. Compact panel cutout size of 6.35 mm and actuator length of 10.41 mm for space efficiency. Compliance with RoHS standards ensures environmental safety and quality assurance.
Browse our Electronics & Electricals category at EnvMart for more quality Toggle Switches, PCB components, and industrial automation products from trusted brands like TE Connectivity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile circuit control.
The maximum operating temperature for this toggle switch is 85°C, making it suitable for various industrial applications.
It is rated IP67, providing protection against dust and immersion in water, suitable for harsh environments.
The switch supports a contact voltage of 28 V dc and 120 V ac, rated for a contact current of 5A.
The actuator is made from phenolic material, which contributes to its durability.
The compact panel cutout size required for this toggle switch is 6.35 mm.
This unit uses a through hole terminal type, which is designed for easy PCB mounting.
The actuator length is 10.41 mm, allowing for efficient operation in compact spaces.
The minimum operating temperature for this toggle switch is -30°C, accommodating a wide range of conditions.
Yes, this model complies with RoHS standards, ensuring it is environmentally safe and reliable for use.
It is suitable for various applications including manufacturing, industrial, HVAC, and automation systems.
This toggle switch provides an On-Off-On operation, allowing for flexible circuit control.
