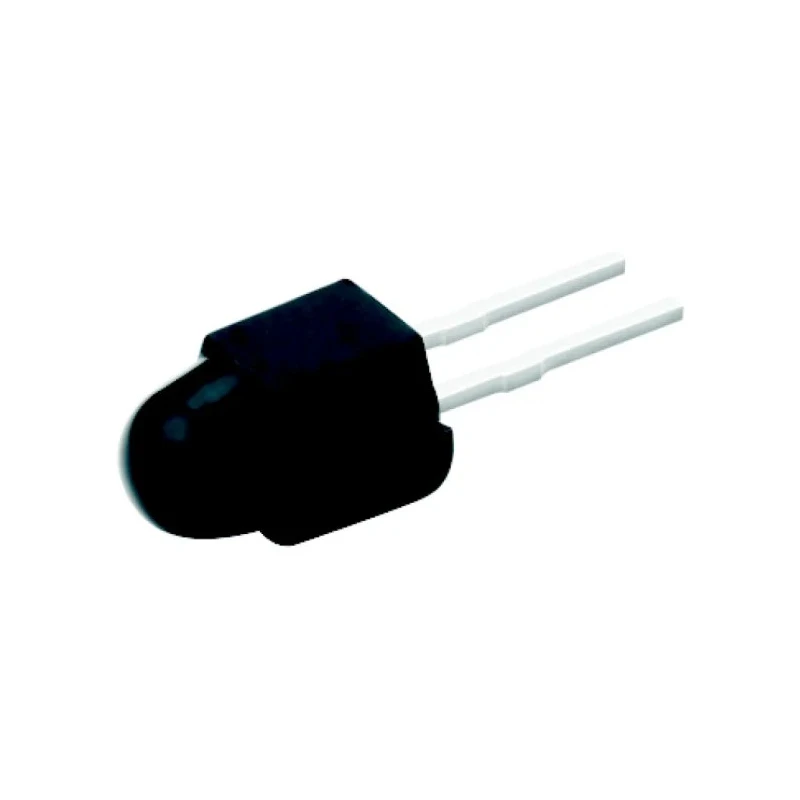

ams OSRAM Infrared Photodiode Surface Mount Radial Package SFH 2505 FA
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | ams OSRAM |
| Model | SFH 2505 FA |
| Mount Type | Surface |
| Series | SFH 2505 FA |
| Short Circuit Current | 70μA |
| Maximum Operating Temperature | 85°C |
| Package Type | SMR |
| Minimum Operating Temperature | -40°C |
| Dark Current | 1nA |
| Open Circuit Voltage | 390mV |
| Number of Pins | 2 |
| Typical Fall Time | 0.005μs |
| Wavelength of Peak Sensitivity | 900nm |
| Spectrums Detected | Infrared |
| Minimum Wavelength Detected | 750nm |
| Maximum Wavelength Detected | 1100nm |
Key Features
- Detects infrared light with peak sensitivity at 900 nm wavelength.
- Operates reliably within temperature range of -40°C to 85°C.
- Features a fast switching time with 5 nanosecond typical rise and fall times.
- Low dark current of 1 nA ensures minimal noise in measurements.
- Surface mount package type SMR with 2 pins simplifies PCB assembly.
- Robust ESD protection up to 2 kV as per ANSI/ESDA/JEDEC JS-001 standard.
- Designed for use in electronic equipment, industrial automation, and smoke detection systems.
- Manufactured in Malaysia, ensuring quality and reliability.
Product Description
The ams OSRAM SFH 2505 FA is a high-performance infrared photodiode packaged in a surface mount radial (SMR) format. It is optimized for detecting infrared spectra between 750 nm and 1100 nm, with a peak sensitivity at 900 nm. This photodiode features a silicon PIN structure that offers excellent sensitivity and fast response times.
Typical rise and fall times of 0.005 microseconds enable rapid signal processing, making it suitable for applications requiring fast switching. Its low dark current of 1 nA improves signal-to-noise ratio, crucial for precision sensor applications.
Operating temperature ranges from -40°C to 85°C, ensuring suitability for challenging industrial and environmental conditions. The device includes ESD protection rated at 2 kV, conforming to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2) standards.
Packaged with black epoxy for protection, the SFH 2505 FA is compatible with infrared LED emitters such as the SFH 4543 and SFH 4558, enabling integrated infrared sensing systems. Its surface mount design facilitates efficient PCB mounting and compact electronic designs.
Typical applications include electronic equipment, industrial automation systems, highbay lighting industry sensors, smoke detectors, and white goods. This versatility makes the SFH 2505 FA a reliable component in multiple industrial and commercial sensing contexts.
Detects infrared light with peak sensitivity at 900 nm wavelength. Operates reliably within temperature range of -40°C to 85°C. Features a fast switching time with 5 nanosecond typical rise and fall times. Low dark current of 1 nA ensures minimal noise in measurements.
Surface mount package type SMR with 2 pins simplifies PCB assembly. Robust ESD protection up to 2 kV as per ANSI/ESDA/JEDEC JS-001 standard. Manufactured in Malaysia ensuring quality and reliability. Compatible with infrared LED emitters SFH 4543 and SFH 4558.
This infrared photodiode from ams OSRAM is an essential component for designers requiring efficient, fast, and sensitive infrared detection solutions. Browse other Photodiodes and optoelectronic components within the ams OSRAM range for complementary devices and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SFH 2505 FA has a peak sensitivity at a wavelength of 900 nm.
It operates reliably within a temperature range of -40°C to 85°C.
This model features typical rise and fall times of 5 nanoseconds.
The dark current is specified at 1 nA, which helps ensure minimal noise in measurements.
The surface mount package type SMR has 2 pins, simplifying PCB assembly.
The maximum open circuit voltage is 390 mV.
It is compatible with infrared LED emitters such as the SFH 4543 and SFH 4558.
This photodiode is designed for use in electronic equipment, industrial automation, highbay lighting sensors, smoke detection systems, and white goods.
It includes robust ESD protection rated at 2 kV, conforming to ANSI/ESDA/JEDEC JS-001 standards.
The SFH 2505 FA detects wavelengths from a minimum of 750 nm to a maximum of 1100 nm.
It is manufactured in Malaysia, ensuring quality and reliability.
The short circuit current is specified at 70 μA.
