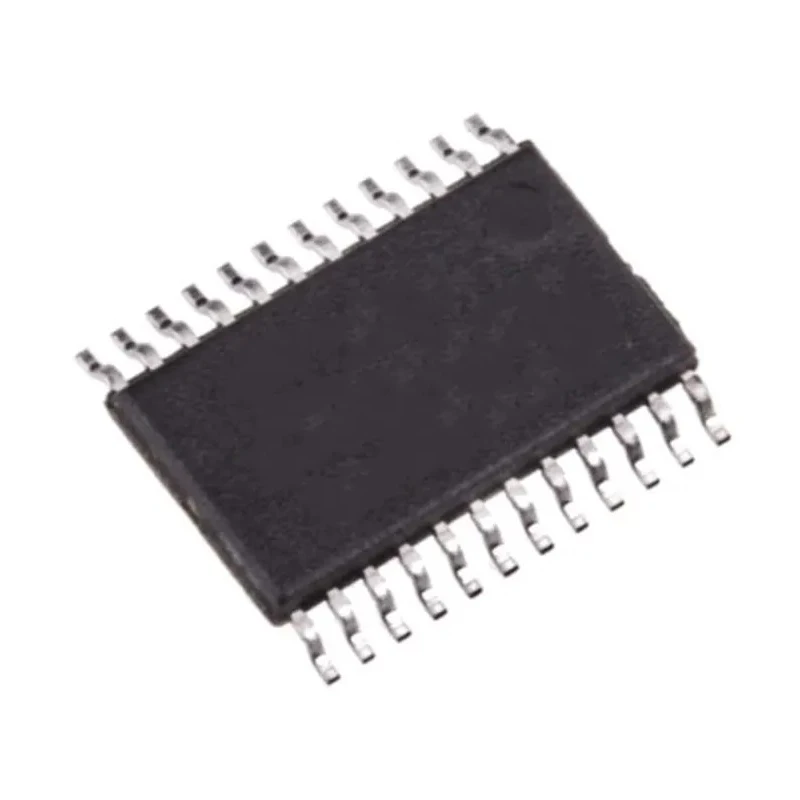

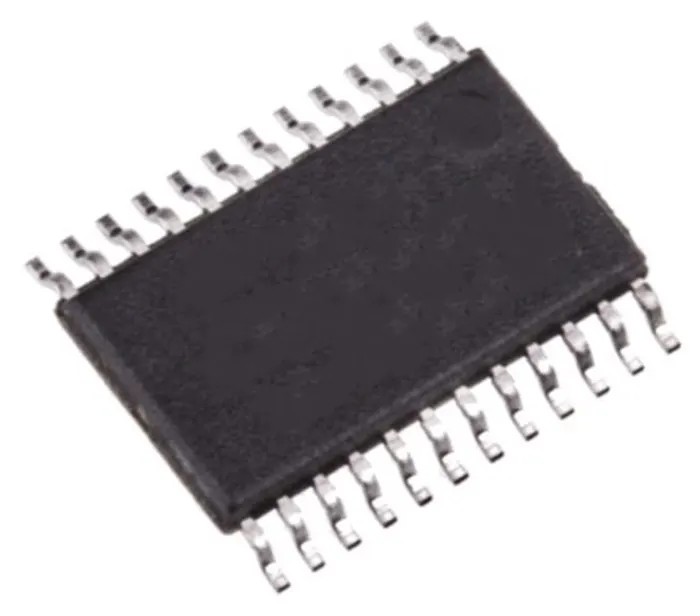

Renesas Electronics CMOS Inverting Line Transceiver 24-Pin TSSOP ISL83387EIVZ

Renesas Electronics ISL83387EIVZ is a CMOS line transceiver with inverting polarity, packaged in a 24-pin TSSOP surface mount form factor. It is engineered to meet EIA/TIA-232 RS-232 communication standards, making it ideal for reliable serial interface applications in industrial and electronic equipment.

The device supports a minimum supply voltage of 3 volts and a maximum of 5.5 volts, providing wide operational flexibility. Its CMOS input and output logic levels are compatible with TTL signals, ensuring seamless integration with various digital circuits.

Key electrical characteristics include a maximum propagation delay time of 0.15 microseconds at the prescribed load capacitance, and low supply current consumption of 300 microamps, emphasizing power efficiency in design.

It operates reliably in extreme temperature conditions, ranging from -40°C up to +80°C, suitable for harsh industrial environments. The transceiver also delivers ±15kV electrostatic discharge (ESD) protection on its transmitter and receiver pins, safeguarding sensitive circuitry from damage during handling or operation.

The compact package dimensions of 7.8 mm length, 4.4 mm width, and 1.2 mm height make it suitable for space-constrained applications. The device maintains active receivers during power-down state and incorporates both manual and automatic enhanced power-down capabilities to reduce power usage when idle.

Operates from 3 V to 5.5 V supply voltage range. CMOS and TTL input/output logic compatible. 24-pin TSSOP surface mount package. 0.15 µs maximum propagation delay at load capacitance. Operating temperature from -40°C to 80°C.

±15kV ESD protection on RS-232 interface pins. Low supply current at 300 µA for power efficiency. Active receivers during power down with manual and automatic power down features. Compact dimensions: 7.8 mm × 4.4 mm × 1.2 mm (L×W×H).

Meets EIA/TIA-232 RS-232 interface standards for line transceivers.

This line transceiver is optimal for use in communications equipment, industrial control systems, and instrumentation where robust and low-power RS-232 interfacing is required. It is widely applied in electronic, laboratory, HVAC, manufacturing, and automation settings.
