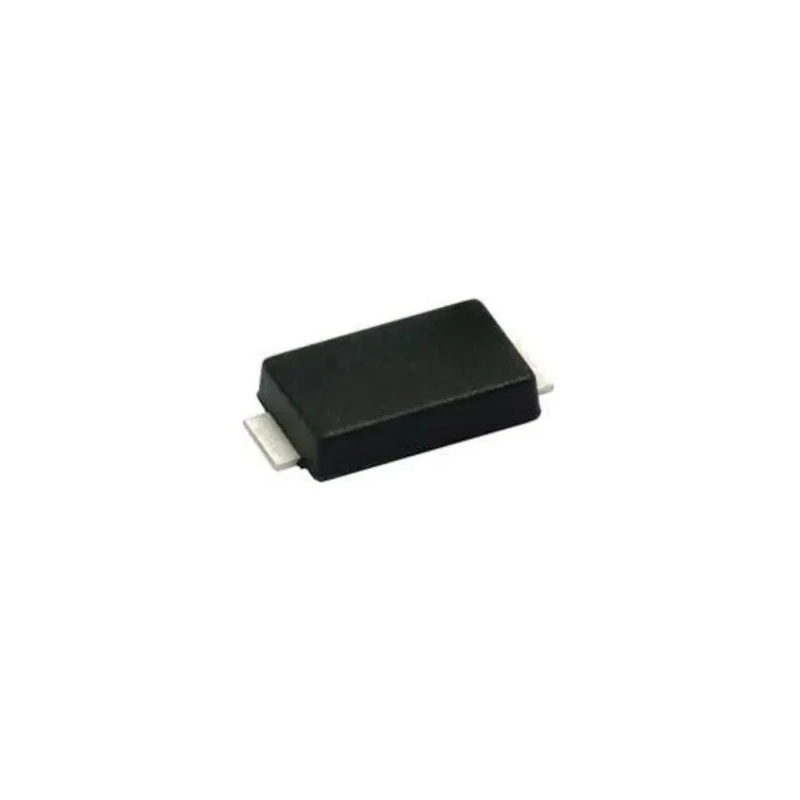

Vishay 1-Element Uni-Directional TVS Diode, 600 W, 2-Pin DO-221 SMA6F64A-M3/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1mm |
| Length | 4.35mm |
| Model | SMA6F64A-M3/H |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-221 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 103V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 71.1V |
| Maximum Reverse Stand-off Voltage Vwm | 64V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 29.9A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Uni-directional diode configuration for reliable voltage transient protection.
- Compact DO-221 surface mount package ideal for automated PCB assembly.
- Maximum peak pulse current of 29.9 A ensures robust surge handling capability.
- Operating temperature range from -55°C to 175°C for harsh industrial environments.
- Clamping voltage of 103 V provides excellent voltage limiting to protect sensitive components.
- Very low profile design at 1 mm height supports compact electronic devices.
- Compliant with MSL level 1 per J-STD-020 and capable of 260 °C peak solder temperature.
- Features ESD protection suitable for consumer, computer, industrial, and telecommunication applications.
Product Description
The Vishay SMA6F64A-M3/H 1-Element Uni-Directional TVS Diode delivers superior transient voltage suppression with a peak pulse power dissipation of 600 W and a 64 V maximum reverse stand-off voltage. It is housed in a DO-221 surface mount package, which is perfect for automated placement due to its low profile of approximately 1 mm height.
This TVS diode offers robust protection against voltage transients caused by inductive load switching and lightning, safeguarding sensitive electronic components such as ICs, MOSFETs, and sensor signal lines. Operating reliably across a wide temperature range from -55°C to 175°C, it is well-suited for industrial, consumer electronics, computer systems, and telecommunications environments.
Key electrical specifications include a minimum breakdown voltage of 71.1 V, clamping voltage of 103 V, and a peak pulse current of 29.9 A. Additionally, it supports Electrostatic Discharge (ESD) protection to enhance device durability.
The diode operates at a maximum reverse leakage current of only 1 μA and complies with moisture sensitivity level 1 standards, enabling high-temperature soldering processes up to 260 °C. Its single-element, uni-directional diode configuration ensures precise and efficient clamping during transient events.
Uni-directional diode configuration for transient voltage suppression. Surface mount DO-221 package for automated assembly. 600 W peak pulse power dissipation for surge capability. 64 V maximum reverse stand-off voltage protects circuits.
Low profile height of 1 mm for compact designs. ESD protection compatible with diverse electronic applications. Highly reliable operation from -55°C to 175°C ambient temperature. Minimal reverse leakage current of 1 μA maintains circuit integrity.
This product is ideal for industrial, laboratory, manufacturing, telecommunications, and commercial applications requiring reliable voltage transient protection. For more options in TVS Diodes and semiconductor protection components, explore EnvMart’s extensive electronics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay SMA6F64A-M3/H TVS diode has a peak pulse power dissipation of 600 W, providing robust surge handling capability.
This model has a maximum reverse stand-off voltage of 64 V, which helps protect circuits from overvoltage conditions.
The clamping voltage for this TVS diode is 103 V, ensuring effective voltage limiting to safeguard sensitive components.
It operates reliably within a temperature range of -55°C to 175°C, making it suitable for harsh industrial environments.
The maximum peak pulse current for this unit is 29.9 A, allowing it to handle significant transient events effectively.
This TVS diode has a height of 1 mm, a length of 4.35 mm, and a width of 2.7 mm, making it a compact option for electronic designs.
The Vishay SMA6F64A-M3/H features a pin count of 2, suitable for surface mount applications.
It utilizes a single-element, uni-directional diode configuration for effective transient voltage suppression.
The maximum reverse leakage current is only 1 μA, which helps maintain circuit integrity during operation.
This model is housed in a DO-221 surface mount package, which is ideal for automated PCB assembly due to its low profile.
Yes, it complies with moisture sensitivity level 1 per J-STD-020, allowing for high-temperature soldering processes up to 260 °C.
This TVS diode is suitable for consumer electronics, computer systems, industrial applications, and telecommunications, providing reliable voltage transient protection.
