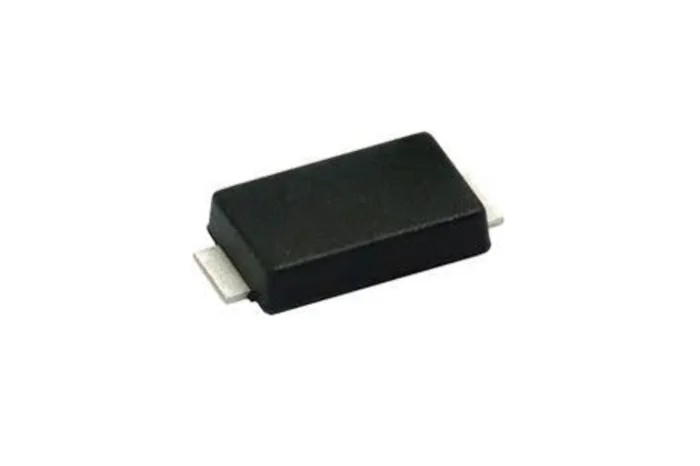

Vishay 1-Element Uni-Directional Surface Mount TVS Diode DO-221 Package 600W Peak Pulse Power SMA6F24A-M3/H

Vishay SMA6F24A-M3/H is a 1-element uni-directional transient voltage suppressor (TVS) diode designed for surface mount applications in the DO-221 package. It offers highly effective surge protection with a peak pulse power dissipation of 600W, making it ideal for safeguarding sensitive electronics against inductive load switching and lightning induced voltage transients.

This TVS diode features a minimum breakdown voltage of 26.7V and a maximum reverse stand-off voltage of 24V, allowing it to clamp surges with a voltage of approximately 39V. Its compact form factor (4.35mm length x 2.7mm width x 1mm height) and surface mount compatibility facilitate automated assembly in modern electronic manufacturing.

Operating reliably over an extended temperature range of -55°C to 175°C, the SMA6F24A-M3/H ensures stability in harsh industrial and commercial environments. It incorporates electrostatic discharge (ESD) protection to enhance device durability in sensitive consumer and telecommunication equipment.

The device supports a maximum peak pulse current of 80A and a test current of 1mA, meeting MSL level 1 per J-STD-020 standards with an LF peak solder temperature of 260°C. It belongs to the Vishay eSMP series known for low-profile height and excellent clamping capability.

This diode is widely used in protecting integrated circuits, MOSFETs, sensors, and signal lines in consumer electronics, computers, telecommunications, industrial controls, and other sensitive electronic modules requiring robust transient voltage suppression.

Designed for reliable transient voltage suppression in electronic devices. Compact DO-221 surface mount package facilitates automated assembly. 600W peak pulse power rating protects against high energy surges. Uni-directional polarity ensures appropriate circuit protection.

Extended temperature operation from -55°C to 175°C supports diverse environments. Integrates electrostatic discharge protection for circuit safety. Meets MSL level 1 with LF peak of 260°C, complying with J-STD-020 standards.
