| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 0.6mm |
| Length | 1mm |
| Model | VCUT0714BHD1HG3-08 |
| Width | 0.45mm |
| Mount Type | Surface |
| Series | VCUT0714BHD1 |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006-2A |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 2 |
| Clamping Voltage VC | 30V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single Bi-Directional |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 14.5V |
| Maximum Reverse Stand-off Voltage Vwm | 14V |
| Peak Pulse Power Dissipation Pppm | 61W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 3.6A |
| Maximum Reverse Leakage Current | 100nA |

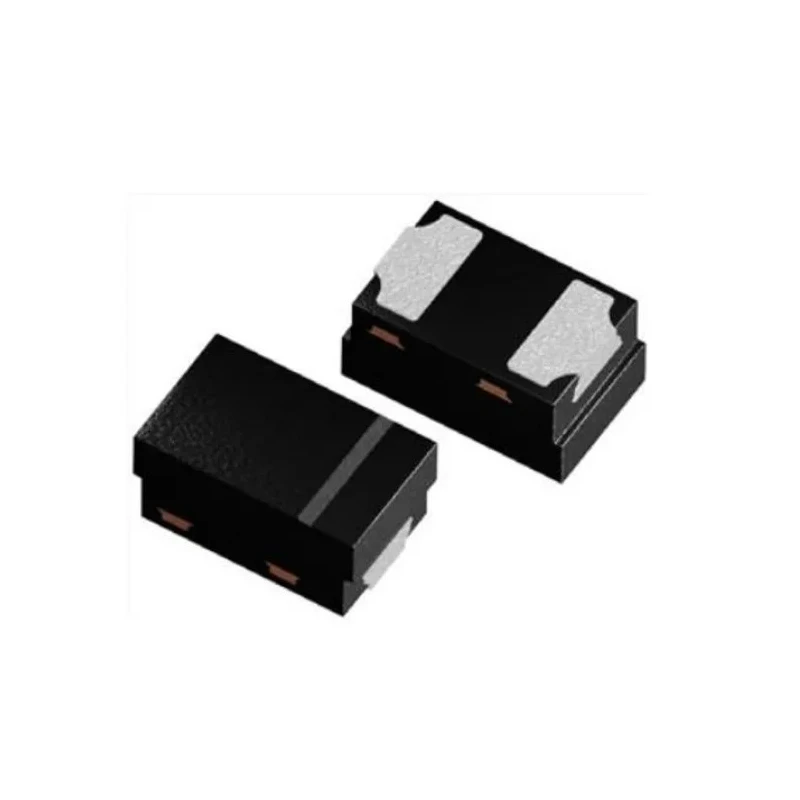

Vishay VCUT0714BHD1HG3-08 is a 2-element bi-directional Transient Voltage Suppressor (TVS) diode engineered to safeguard electronic circuits against electrostatic discharge (ESD) and voltage transients. Rated at 61 W peak pulse power dissipation, it provides robust protection in a compact 2-pin DFN1006-2A surface mount package, with dimensions of 1 mm length, 0.45 mm width, and a low profile height of 0.6 mm.
The device features a minimum breakdown voltage (Vbr) of 14.5 V and a maximum reverse stand-off voltage (Vwm) of 14 V, enabling efficient clamping up to 30 V to prevent damage to sensitive semiconductor devices. Its bi-directional design allows handling transient events from both positive and negative voltage spikes.
Operating safely over industrial temperature ranges (-55°C to 150°C), it includes automotive-grade qualifications (AEC-Q101), making it suitable for automotive electronics as well as industrial, commercial, and communications applications.
With a peak pulse current rating of 3.6 A and low reverse leakage current of 100 nA, the VCUT0714BHD1HG3-08 balances high surge capacity with minimal circuit interference. Its RoHS compliance and surface mount package type support modern automated PCB assembly.
This diode configuration offers symmetrical ESD protection for data and signal lines against electrical overstress. Compact form factor enables integration into space-sensitive devices. Reliability across wide temperature ranges ensures suitability for demanding environments.
Ideal for use in power supplies, consumer electronics, automotive ECUs, and industrial controls.
The Vishay VCUT0714BHD1HG3-08 TVS Diode is a robust solution for enhanced circuit protection against transient voltage events, providing high reliability and compliance with industry standards. Explore more Vishay semiconductor solutions at EnvMart for your electronic component needs.
