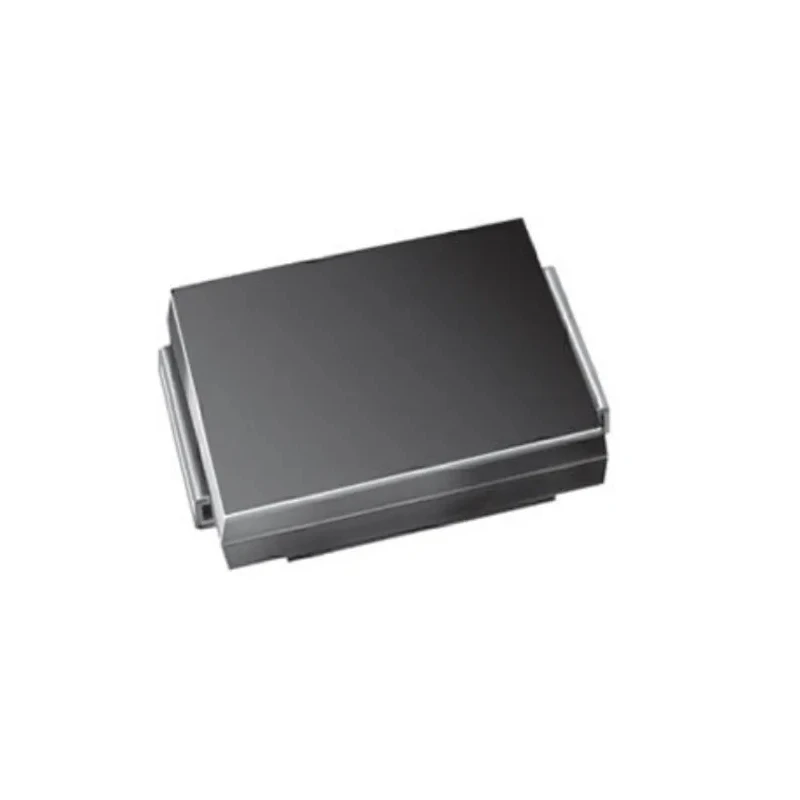

Vishay Bi-Directional TVS Diode, 3000 W Peak Pulse Power Dissipation, Surface Mount DO-214AB Package SMC3K54CAHM3_A/H

Vishay SMC3K54CAHM3_A/H Bi-Directional TVS Diode is engineered for high reliability transient voltage suppression in sensitive electronic circuits. It features a peak pulse power dissipation capability of 3000 W with a 10/1000 μs waveform, making it ideal for protection against voltage transients caused by inductive load switching and lightning.

This diode utilizes a surface mount DO-214AB (SMC) package that ensures compact PCB assembly and effective thermal dissipation. The device supports bi-directional polarity only, enabling protection on both positive and negative voltage transients.

The diode offers a maximum reverse stand-off voltage of 54 V, a minimum breakdown voltage of 60 V, and a maximum peak pulse current of 34.4 A. It clamps voltage at 87.1 V to safeguard downstream components, ensuring rapid response to transient events with low incremental surge resistance.

Operating temperature ranges from -55°C to 175°C, allowing usage in harsh industrial, automotive, and telecommunication environments. The diode complies with numerous international standards such as ISO 16750-2, ISO 7637-2:2011, JESD 22-B102, RoHS, UL 94, and J-STD-002, and is automotive grade AEC-Q101 qualified.

Applications include protection of ICs, MOSFETs, and signal lines within consumer electronics, computers, industrial equipment, and automotive systems. Its ESD protection capabilities further enhance component longevity and system reliability.

3000 W peak pulse power capability with a 10/1000 μs waveform. Bi-directional polarity designed for sensitive electronic circuit protection. Maximum reverse stand-off voltage of 54 V with minimum breakdown voltage of 60 V.

Maximum peak pulse current rating of 34.4 A and clamping voltage of 87.1 V. Surface mount DO-214AB (SMC) package type suitable for PCB mounting. Operating temperature range from -55°C up to 175°C. Low incremental surge resistance with very fast response time.

Compliance with standards including ISO 16750-2, ISO 7637-2:2011, JESD 22-B102, RoHS, UL 94, and J-STD-002. Automotive grade AEC-Q101 qualified for reliable performance in automotive applications. ESD protection enabled for safeguarding sensitive components against electrostatic discharge.
