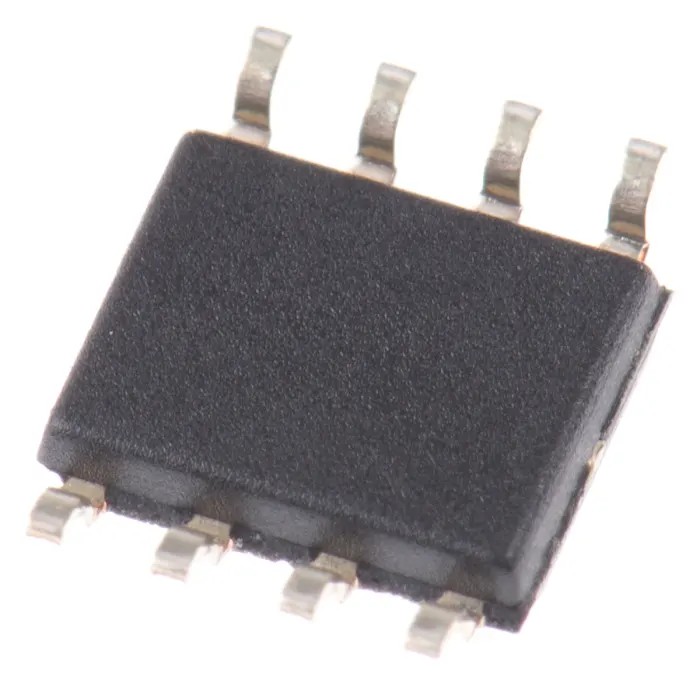

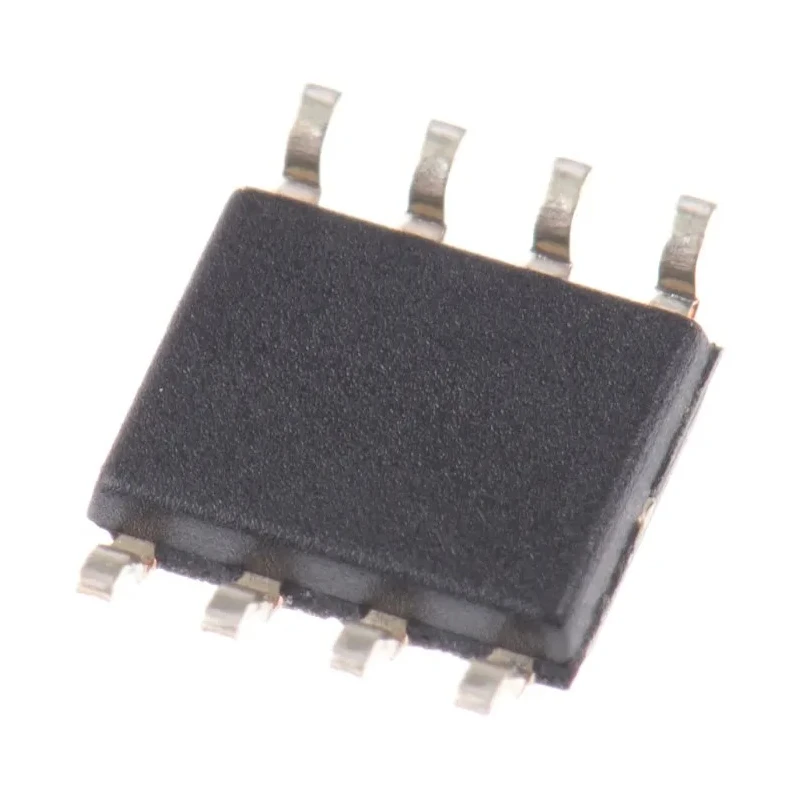

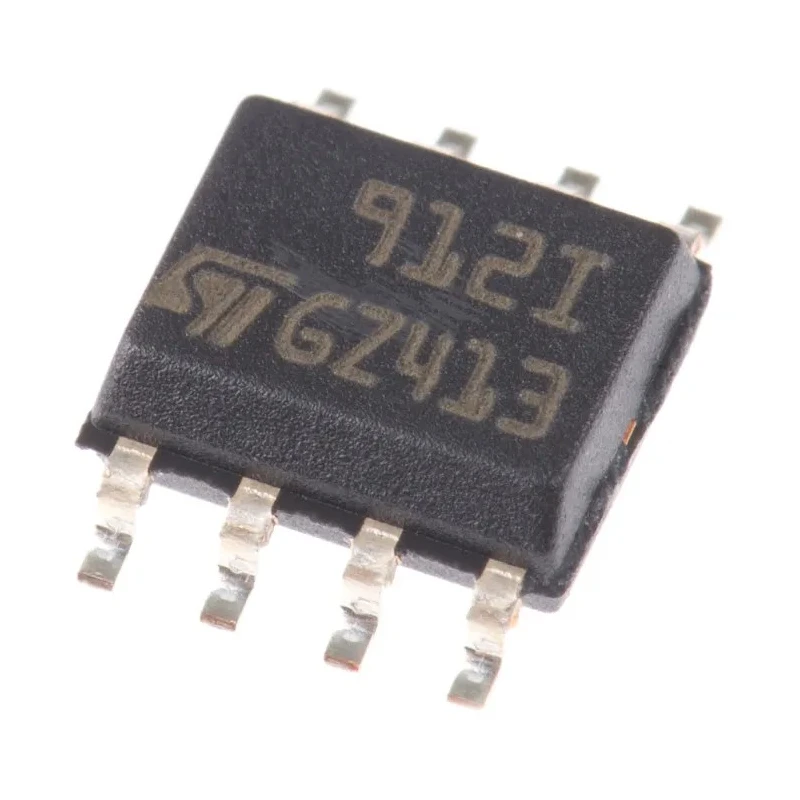

STMicroelectronics Operational Amplifier, 1 MHz Gain Bandwidth, 8-Pin SOIC, 3V-16V Supply TS912ID
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.25mm |
| Length | 4.9mm |
| Model | TS912ID |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | TS912 |
| Output Current | 40mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 300 pA |
| Vos - Input Offset Voltage | 12 mV |
| Slew Rate | 0.8V/μs |
| Low input offset voltage | 5 mV max. (A grade) |
| Input Offset Current | 200 pA |
| Low input bias current | 1 pA typical |
Key Features
- Dual-channel operational amplifier optimized for low power consumption.
- Operating voltage range from 3 volts to 16 volts.
- Low input bias current and offset voltage for high precision.
- Rail-to-rail input and output voltage capabilities.
- Compliant with RoHS standards and automotive AEC-Q100 certification.
- Suitable for automotive and industrial applications with extended temperature range.
- Compact SOIC package with 4.9 mm length and 3.9 mm width dimensions.
- Output current capability of up to 40 mA ensuring drive capability.
Product Description
The STMicroelectronics TS912ID is a high-performance operational amplifier designed for a wide range of industrial and automotive applications. It features a 1 MHz gain bandwidth product and is housed in an 8-pin SOIC surface mount package, offering compactness and ease of integration into modern electronic designs.
With a dual channel configuration, this operational amplifier supports single or dual supply voltage ranging from 2.7 V to 16 V, providing flexibility in various circuit environments. It exhibits low input bias current of typically 1 pA and low offset voltage, maximizing accuracy for precision analog applications.
Its rail-to-rail input and output voltage ranges allow operation near the supply rails, enhancing signal swing for low voltage designs. The device also meets automotive AEC-Q100 standards, making it suitable for rigorous use in automotive systems requiring high reliability and performance over a broad temperature range from -40°C to 125°C.
Mechanical dimensions like a 4.9 mm length, 3.9 mm width, and 1.25 mm height make the SOIC package ideal for dense PCB layouts. The amplifier supports a maximum output current of 40 mA, enabling driving of various loads effectively.
Dual operational amplifier channels in one package. Low power consumption with CMOS inputs. High precision with low offset voltage and bias current. Wide supply voltage range and rail-to-rail input/output features. Robust automotive qualification for demanding applications.
Compact SOIC package for surface mount technology. Fast and stable operation with 0.8 V/µs slew rate. Complies with RoHS environmental standards. High input impedance and low noise characteristics.
This Operational Amplifier is suitable for a variety of industrial electronics, automotive sensor interfaces, signal conditioning circuits, and general-purpose amplification tasks. Design engineers will benefit from the combination of precision, power efficiency, compact packaging, and automotive-grade durability.
Explore the extensive range of semiconductor solutions available on EnvMart to find complementary products and expand your design capabilities.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TS912ID operational amplifier has a gain bandwidth product of 1 MHz.
This operational amplifier operates within a supply voltage range of 3V to 16V.
The dimensions of the TS912ID are 4.9 mm in length, 3.9 mm in width, and 1.25 mm in height.
It can provide a maximum output current of up to 40 mA.
This operational amplifier can operate in a temperature range from -40°C to 125°C.
The TS912ID is housed in an 8-pin SOIC surface mount package.
It complies with the automotive AEC-Q100 standard.
The input bias current is typically 1 pA.
The slew rate of the TS912ID is 0.8 V/μs.
Yes, it is compliant with RoHS standards.
The input offset voltage is typically 12 mV.
This operational amplifier features a dual-channel configuration.
