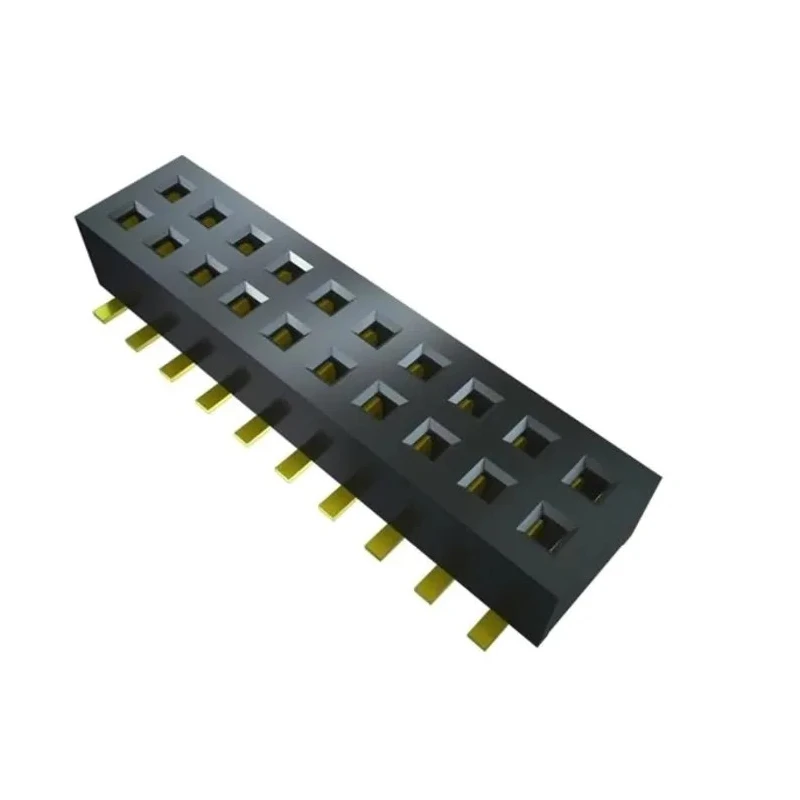

Samtec CLP Series Horizontal Surface PCB Socket, 18-Contact, 2 Row, 1.27 mm Pitch, Through Hole CLP-109-02-L-D-P-TR

The Samtec CLP-109-02-L-D-P-TR is a high-performance horizontal surface PCB socket designed for electronic applications requiring reliable, low-profile board-to-board interconnections. Featuring 18 contacts arranged in 2 rows with a 1.27 mm pitch, this socket utilizes a dual wipe contact mechanism to ensure stable electrical connections over repeated mate cycles.

Its housing is constructed from liquid crystal polymer, providing excellent mechanical strength and thermal resistance suitable for industrial, consumer electronics, and telecommunications equipment. The phosphor bronze contacts are plated with a thin, light selective gold layer to optimize conductivity and prevent corrosion while the tail is finished with matte tin for robust solder joints.

This component supports a continuous current of 3.4A and an operating voltage up to 395V, making it suitable for a wide range of PCB connector applications such as embedded systems, signal processing modules, and interface adapters. The horizontal orientation of the socket is optimized for surface mounting with through-hole termination, facilitating easy assembly and reliable mechanical fixation.

Designed to function effectively within a broad temperature range from -55°C to 125°C, the CLP series socket ensures consistent performance in demanding environments. Additional features include alignment pins to aid during PCB assembly and compatibility with tape and reel packaging systems to support automated pick-and-place manufacturing.

Dual wipe contact design enhances connection reliability. Liquid crystal polymer housing offers durability and heat resistance. Gold-plated phosphor bronze contacts assure excellent conductivity. Rated for 3.4A current and 395V voltage for versatile applications.

Surface mount with through-hole termination suitable for PCB integration. Operating temperature range from -55°C to 125°C for industrial use. Alignment pins for precise placement and mechanical stability. Compatible with tape and reel packaging for automated assembly.

This product is ideal for industrial electronics, communication devices, and any applications requiring compact, reliable board-to-board electrical connections. Samtec’s CLP series is recognized for quality and performance in demanding manufacturing environments. Explore more high-quality PCB Sockets and connectors in the same category at EnvMart to suit your project needs.
