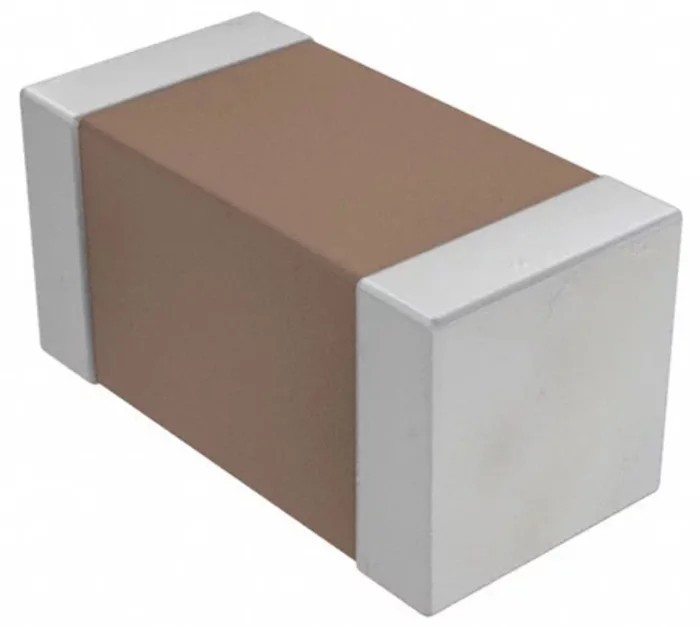

TDK 22 pF Multilayer Ceramic Capacitor, 50V dc, ±5 % Tolerance, C0G Dielectric, Surface Mount CGA1A2C0G1H220J030BA

Free Delivery in India | Lowest Global Shipping Charges

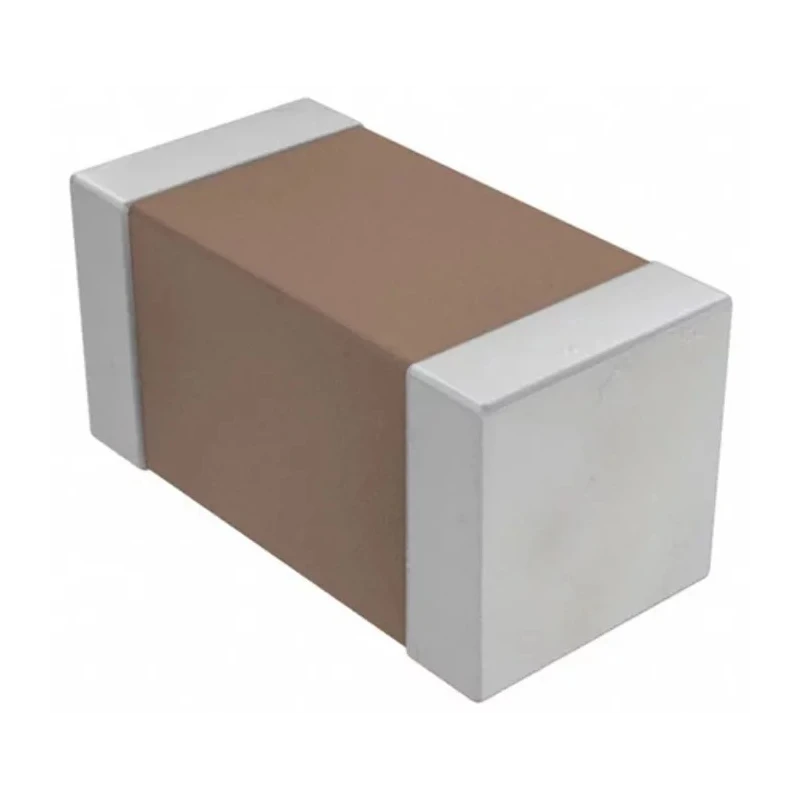

TDK 22 pF Multilayer Ceramic Capacitor, 50V dc, ±5 % Tolerance, C0G Dielectric, Surface Mount CGA1A2C0G1H220J030BA



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	50V dc
Brand	TDK
Height	0.3mm
Length	0.6mm
Model	CGA1A2C0G1H220J030BA
Packaging	Tape & Reel
Width	0.3mm
Mount Type	Surface
Series	CGA
Termination Type	Solder
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	22pF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	C0G
Automotive Standard	AEC-Q200
Suppression Class	Class I

Key Features

Capacitance of 22 pF with ±5 % tolerance for accurate filtering and timing circuits.
Features C0G dielectric material providing excellent stability over temperature and voltage.
Surface mount type in 0603 package suitable for automated assembly processes.
Rated for operating temperatures from -55°C to 125°C, meeting automotive AEC-Q200 standards.
Low equivalent series resistance ensures low self-heating and high ripple current capability.
Compact dimensions of 0.6mm length, 0.3mm width, and 0.3mm height for space-saving designs.
Termination type is solder compatible for robust PCB connections.
Ideal for automotive battery line smoothing, sensor modules, engine control units, and infotainment systems.

Product Description

TDK CGA1A2C0G1H220J030BA is a high-reliability multilayer ceramic capacitor (MLCC) designed for surface mount technology applications. It features a capacitance of 22 pF with a ±5 % tolerance and a voltage rating of 50V dc. The capacitor utilizes the C0G dielectric which is known for its temperature compensation characteristics and excellent stability, making it ideal for precision electronic circuits.

Constructed within a compact 0603 package (0.6mm x 0.3mm x 0.3mm), this capacitor supports automated mounting and solder termination, offering robust mechanical strength and excellent heat resistance. It complies with the automotive AEC-Q200 standard, which underscores its suitability for automotive applications where durability is critical.

The device is rated for operation from -55°C to 125°C and provides low equivalent series resistance (ESR) for low self-heating and high ripple current tolerance. Its low equivalent series inductance (ESL) and superior frequency characteristics make it suitable for high-frequency filtering, decoupling, and tuning circuits.

Applications of this MLCC include automotive battery line smoothing, sensor modules, engine control units, anti-lock brake systems, and automotive infotainment systems. It is also recommended for use in smart meters, solar inverters, AC-DC battery chargers, transportation electronics, and agricultural equipment.

This product is RoHS compliant and manufactured in Japan, ensuring adherence to stringent quality standards and environmental regulations. The CGA Series from TDK is well-regarded for its matured manufacturing process and guaranteed performance, making it a preferred choice for demanding electronic component applications.

Capacitance of 22 pF with ±5 % tolerance for accurate filtering and timing circuits. C0G dielectric material ensures excellent thermal stability and low losses. 0603 surface mount package for compact and efficient PCB layouts.

Compliance with automotive AEC-Q200 standard for enhanced reliability. Operating temperature range from -55°C to 125°C for harsh environments. Low ESR and ESL values ensure performance at high frequencies. Manufactured in Japan with high-quality control standards.

Explore our extensive range of Multilayer Ceramic Capacitors at EnvMart for reliable components designed for industrial, automotive, and electronics manufacturing applications.
