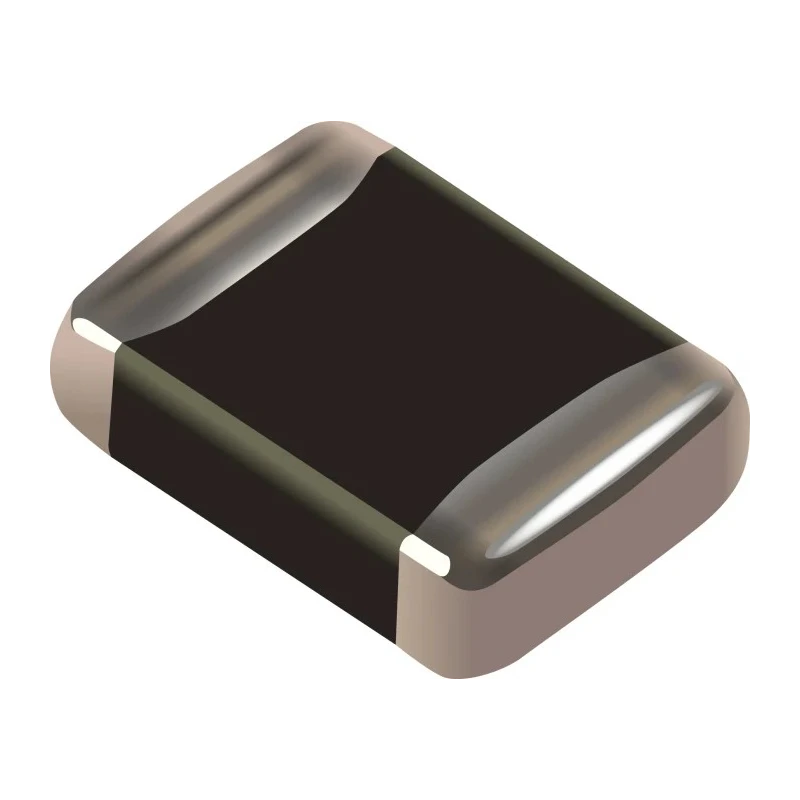

Bourns AV Series Varistor 780 pF Capacitance 1 A Clamping 54 V 22 V 1206 AV20K1206201NIR1
Specifications
| Country of Origin | Slovenia |
|---|---|
| Brand | Bourns |
| Material | Metal |
| THICKNESS | 1.2mm |
| Length | 3.2mm |
| Model | AV20K1206201NIR1 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | AV |
| Energy Rating | 0.3J |
| Maximum Operating Temperature | 125°C |
| Capacitance | 780pF |
| Minimum Operating Temperature | -55°C |
| Maximum dc Voltage | 26V dc |
| Standards/Approvals | RoHS |
| Package/Case | 1206 |
| Pin Count | 2 |
| Maximum AC Voltage | 20V ac |
| Clamping Voltage VC | 54V |
| Clamping Current | 1A |
| Maximum Surge Current | 2kA |
| Varistor Voltage | 22 V |
Key Features
- Offers a clamping voltage of 54 V for efficient transient voltage suppression.
- Has a varistor voltage rating of 22 V for stable voltage control.
- Supports a clamping current of 1 A for surge current handling.
- Packaged in a 1206 surface mount case with metal material for robustness.
- Capable of operating between -55°C and 125°C for versatile industrial applications.
- Compliant with RoHS standards ensuring environmental safety.
- Maximum AC voltage rating of 20 V AC and DC voltage of 26 V DC.
- Energy rating of 0.3 J for transient energy absorption.
Product Description
Bourns AV20K1206201NIR1 varistor is an advanced AV Series surge protection device designed to safeguard electronic components from transient voltage spikes. Featuring a capacitance of 780 pF, it offers precise voltage absorption and clamping at 54 V, efficiently protecting circuits with a varistor voltage of 22 V. The surface mount 1206 package with metal construction ensures durability and easy PCB integration.
This varistor supports a clamping current of 1 A and can handle maximum surge currents up to 2 kA, making it suitable for demanding industrial and commercial electronic applications including power supplies, consumer electronics, and telecommunications. It operates reliably within a temperature range from -55°C to 125°C, ensuring performance stability in harsh environments.
The device conforms to RoHS standards, highlighting its compliance with environmental regulations. With its compact size of 3.2 mm length and 1.2 mm thickness, it occupies minimal PCB space and offers flexible circuit board design options.
Clamping voltage of 54 V provides effective transient suppression. Varistor voltage rating of 22 V ensures precise voltage clamp. Surface mount 1206 case allows for compact electronics design. High maximum surge current rating of 2 kA enhances reliability.
Wide operating temperature range of -55°C to 125°C supports diverse applications. Energy rating of 0.3 J accommodates transient energy absorption. Metal material construction improves flammability rating and durability. RoHS compliant for environmental and regulatory adherence.
This Varistor is ideal for industrial, commercial, consumer electronics, and telecommunications applications where transient voltage protection is critical. Efficiently designed for space-saving and robust performance, Bourns AV20K1206201NIR1 offers reliable protection in modern electronic systems.
Explore more high-quality electronic components and surge protection devices on EnvMart for your next project and industrial solution.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping voltage of this varistor is 54 V, providing effective transient voltage suppression.
It can handle a maximum surge current of 2 kA, making it suitable for demanding applications.
This varistor has a capacitance of 780 pF, allowing for precise voltage absorption.
It operates reliably within a temperature range of -55°C to 125°C, supporting diverse applications.
The varistor voltage rating is 22 V, ensuring stable voltage control during operation.
This varistor has a length of 3.2 mm and a thickness of 1.2 mm, making it compact for PCB design.
The maximum DC voltage rating is 26 V, which is important for ensuring safe operation in circuits.
It is packaged in a tape and reel format, which is convenient for automated assembly processes.
Yes, it is compliant with RoHS standards, ensuring adherence to environmental regulations.
The varistor is made from metal, which contributes to its durability and performance.
The energy rating is 0.3 J, which accommodates transient energy absorption during operation.
It supports surface mounting, specifically in a 1206 package, which is suitable for compact electronics design.
