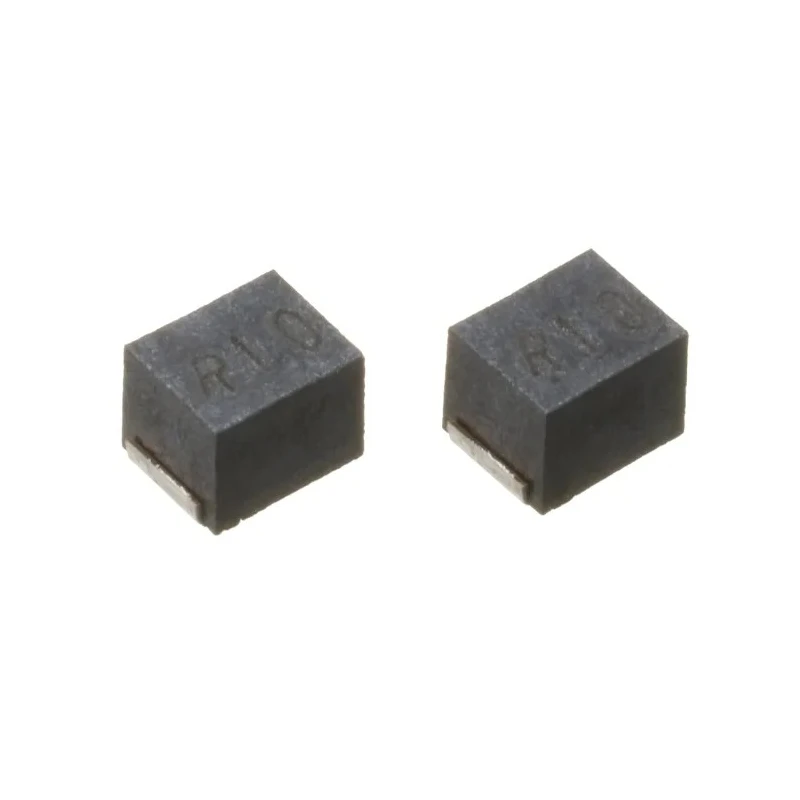

TDK Wirewound Surface Mount Inductor 100 μH ±10% 120 mA Idc Ferrite Core 3225 Package NLCV32T-101K-EF
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 2.2mm |
| Length | 3.2mm |
| Model | NLCV32T-101K-EF |
| Depth | 2.5mm |
| Packaging | Tape & Reel |
| Series | NLCV-EF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 100μH |
| Standards/Approvals | RoHS |
| Package/Case | 3225 |
| Maximum DC Current | 120mA |
| Pin Count | 2 |
| Maximum DC Resistance | 3.7Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 10MHz |
| Minimum Quality Factor | 15 |
| Inductor Construction | Wirewound |
Key Features
- Constructed with wirewound technology providing reliable inductance performance.
- Features a ferrite core for efficient magnetic characteristics and stability.
- Compact 3225 surface mount package measuring 3.2 mm length, 2.5 mm depth, and 2.2 mm height.
- Inductance tolerance of ±10% ensures precision suitable for sensitive electronic circuits.
- Maximum DC resistance is 3.7 Ω, supporting efficient current flow.
- RoHS compliant, meeting environmental and safety standards.
- Suitable for operating temperatures from -40°C up to 105°C for broad application use.
- Designed for applications including audio-visual equipment, digital cameras, and automotive onboard equipment.
Product Description
TDK NLCV32T-101K-EF is a wirewound surface mount inductor featuring a ferrite core designed to deliver 100 μH inductance with ±10% tolerance. This surface mount inductor conforms to the compact 3225 package size with precise dimensions of 3.2 mm length, 2.5 mm depth, and 2.2 mm height, ideal for high-density PCB layouts.
The device supports a maximum DC current rating of 120 mA and a maximum DC resistance of 3.7 Ω, ensuring stable performance in low-power electronic circuits. Its molded construction with heat-resistant thermoplastic resin exterior protects the inductor, making it suitable for harsh operating environments ranging from -40°C to 105°C. The termination style is solder, which facilitates reliable assembly and excellent electrical contact.
This inductor exhibits a minimum quality factor (Q) of 15 and a maximum self-resonant frequency of 10 MHz, making it suitable for noise filtering, power line conditioning, and signal processing in industrial, automotive, and consumer electronics applications.
It complies with RoHS standards, contributing to environmentally responsible manufacturing and use. Wirewound construction offers reliable inductance characteristics. Ferrite core material supports efficient magnetic flux and stability.
Small footprint 3225 package supports compact electronic assemblies. High quality factor ensures low energy loss in circuits. Wide operating temperature range suitable for diverse applications. Tape and reel packaging compatible with automated SMT assembly lines.
RoHS compliant, fulfilling global environmental regulations. Inductor is molded for mechanical robustness and protection. Ideal for use in audio-visual equipment, automotive electronics, and digital cameras.
Explore our wide range of Surface Mount Inductors and related electronic components at EnvMart for trusted quality and performance in your industrial, commercial, and consumer electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 100 μH with a tolerance of ±10%.
The dimensions of this inductor are 3.2 mm in length, 2.5 mm in depth, and 2.2 mm in height.
It supports a maximum DC current rating of 120 mA.
The maximum DC resistance is 3.7 Ω, ensuring efficient current flow.
This inductor operates within a temperature range of -40°C to 105°C.
The termination style is solder, which facilitates reliable assembly and electrical contact.
The maximum self-resonant frequency is 10 MHz, making it suitable for various applications.
This model exhibits a minimum quality factor (Q) of 15.
It is packaged in tape and reel format, compatible with automated SMT assembly lines.
The core material is ferrite, which supports efficient magnetic characteristics and stability.
Yes, it complies with RoHS standards, contributing to environmentally responsible manufacturing.
It is designed for applications including audio-visual equipment, digital cameras, and automotive onboard equipment.
