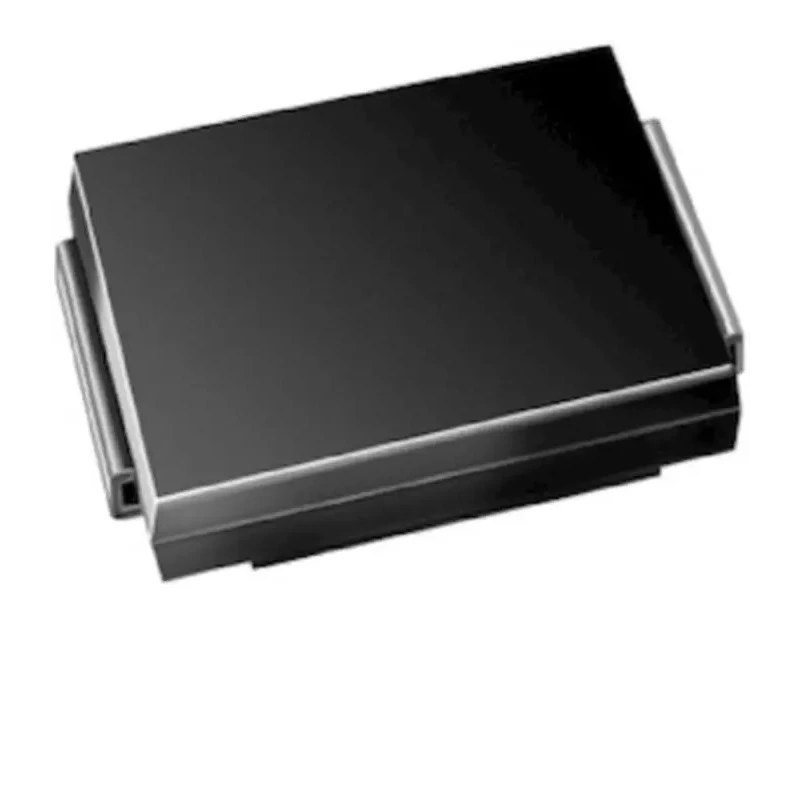

Vishay 1-Element Bi-Directional, Uni-Directional TVS Diode, Peak Pulse Power 1.5 kW, Surface Mount DO-214 SMCJ58CAHE3_A/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | SMCJ58CAHE3_A/H |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 93.6V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional, Uni-Directional |
| Minimum Breakdown Voltage Vbr | 64.4V |
| Maximum Reverse Stand-off Voltage Vwm | 58V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 14.6A |
| Maximum Reverse Leakage Current | 1μA |
| Repetitive rate (duty-cycle) | 0.01 % |
Key Features
- Single diode configuration providing effective transient voltage suppression.
- Bi-directional and uni-directional operation for versatile circuit protection.
- Minimum breakdown voltage of 64.4 V ensuring reliable clamping.
- Maximum operating temperature up to 150°C supporting harsh environments.
- Low leakage current of 1 μA minimizing power loss during operation.
- Meets automotive standard AEC-Q101 for high reliability.
- High peak pulse current capability at 14.6 A for robust protection.
- Suitable for protection of ICs, MOSFETs, and sensitive electronics.
Product Description
Vishay SMCJ58CAHE3_A/H is a single-element transient voltage suppression (TVS) diode designed for bi-directional and uni-directional circuit protection with a peak pulse power dissipation of 1.5 kW. This diode is housed in a surface mount DO-214 package, offering compact dimensions ideal for space-constrained applications.
Its minimum breakdown voltage of 64.4 V and clamping voltage of 93.6 V provide excellent protection against voltage transients caused by inductive load switching, lightning, and electrostatic discharge. The device supports a maximum operating temperature of 150°C and a minimum operating temperature of -55°C, making it suitable for industrial, automotive, and telecommunications applications where wide temperature ranges are common.
The diode exhibits a low maximum reverse leakage current of 1 μA, ensuring minimal power loss during normal operation. It has an impressive maximum peak pulse current of 14.6 A and features electrostatic discharge (ESD) protection compliant with automotive requirements (AEC-Q101 certification).
Typical uses include safeguarding sensitive electronics such as integrated circuits, MOSFETs, and sensor signal lines from transient voltage spikes in consumer electronics, industrial equipment, and telecommunications hardware. Its快速反应time and low incremental surge resistance make it a highly effective solution for transient voltage suppression.
Single diode configuration providing effective transient voltage suppression. Bi-directional and uni-directional operation for versatile circuit protection. Clamping voltage of 93.6 V ensures rapid voltage spike mitigation.
Compact surface mount DO-214 package with dimensions 7.11 x 6.22 x 2.42 mm. Wide operating temperature range from -55°C to 150°C. Compliant with automotive standard AEC-Q101 for enhanced reliability. Peak pulse power of 1.5 kW to safeguard electronics under severe transient conditions.
Low leakage current of 1 μA preserves circuit efficiency. Applications include consumer electronics, industrial control, telecommunications, and automotive systems protection. Explore the comprehensive range of Vishay TVS Diodes on EnvMart for robust transient voltage protection solutions tailored to diverse industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this diode is 1.5 kW, providing robust protection against transient voltage spikes.
The minimum breakdown voltage of this model is 64.4 V, ensuring reliable clamping during voltage transients.
The clamping voltage for this diode is 93.6 V, which helps mitigate rapid voltage spikes effectively.
This diode supports a maximum operating temperature of 150°C, making it suitable for harsh environments.
The maximum peak pulse current capability of this diode is 14.6 A, providing strong protection during transient events.
It is housed in a surface mount DO-214 package, which is compact and ideal for space-constrained applications.
The dimensions of this diode are 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height.
The maximum reverse leakage current is 1 μA, which helps minimize power loss during operation.
This diode complies with the automotive standard AEC-Q101, ensuring high reliability for automotive applications.
This diode operates within a temperature range from -55°C to 150°C, suitable for various industrial applications.
This model features a single diode configuration, providing effective transient voltage suppression.
It offers bi-directional and uni-directional operation for versatile circuit protection against voltage transients.
