| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.08mm |
| Length | 3.9mm |
| Model | RS1FM-M3/H |
| Width | 1.9mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SMF |
| Sub Type | General Purpose Diode |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Diode Configuration | Single |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.25V |
| Peak Reverse Recovery Time trr | 500ns |
| Maximum Forward Current If | 1A |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 1000V |

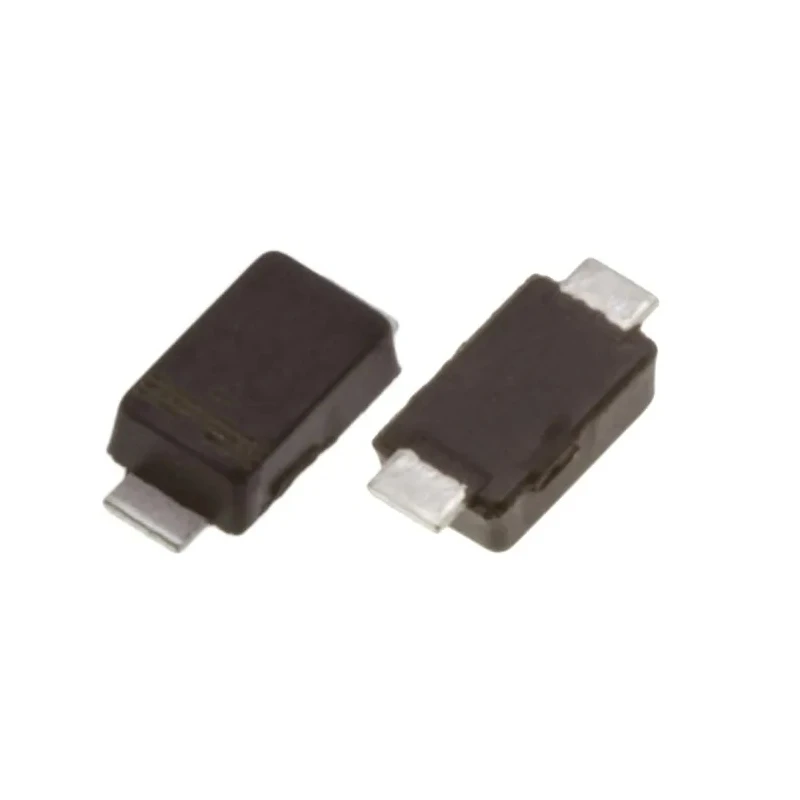

Vishay RS1FM-M3/H is a high-quality switching diode designed for general purpose rectification and fast switching applications. It features a single diode configuration with a 2-pin surface mount SMF package, ideal for compact electronic assemblies.
This diode supports a maximum forward current of 1 A and can withstand peak repetitive voltages up to 1000 V, making it suitable for use in power supplies, inverters, converters, and as freewheeling diodes in consumer and telecommunication devices.
The device exhibits a low forward voltage drop of 1.25 V and a fast reverse recovery time of 500 ns to enhance switching efficiency. The diode maintains operational integrity in harsh environments with an operating temperature range from -55°C to 150°C and a peak non-repetitive surge current rating of 30 A.
Its compact dimensions (3.9 mm length, 1.9 mm width, 1.08 mm height) and surface mount design facilitate automated PCB assembly with excellent solderability standards. The matte tin plated leads comply with J-STD-002 and JESD standards, ensuring reliable electrical connections and longevity.
This diode is glass passivated with a pellet chip junction, providing durability and stability during operation. The product meets MSL level 1 per J-STD-020, ensuring moisture sensitivity protection for soldering processes.
Commonly used in various industrial sectors such as electronics manufacturing, power electronics, communications equipment, and general industrial electronics where fast switching diodes are required.
Single diode configuration suitable for switching operations. Maximum forward current rating of 1 Ampere. Surface mount package type SMF with 2 pins. Peak reverse repetitive voltage of 1000 Volts. Maximum forward voltage drop of 1.25 Volts.
Operates reliably between -55°C and 150°C temperature range. Peak non-repetitive forward surge current of 30 Amperes. Fast recovery time of 500 nanoseconds. Compact dimensions: 3.9 mm length, 1.9 mm width, 1.08 mm height.
Matte tin plated leads with solderability conforming to J-STD-002 and JESD standards. Explore more components within our Semiconductor Switching Diode category to find compatible parts for your application needs.
