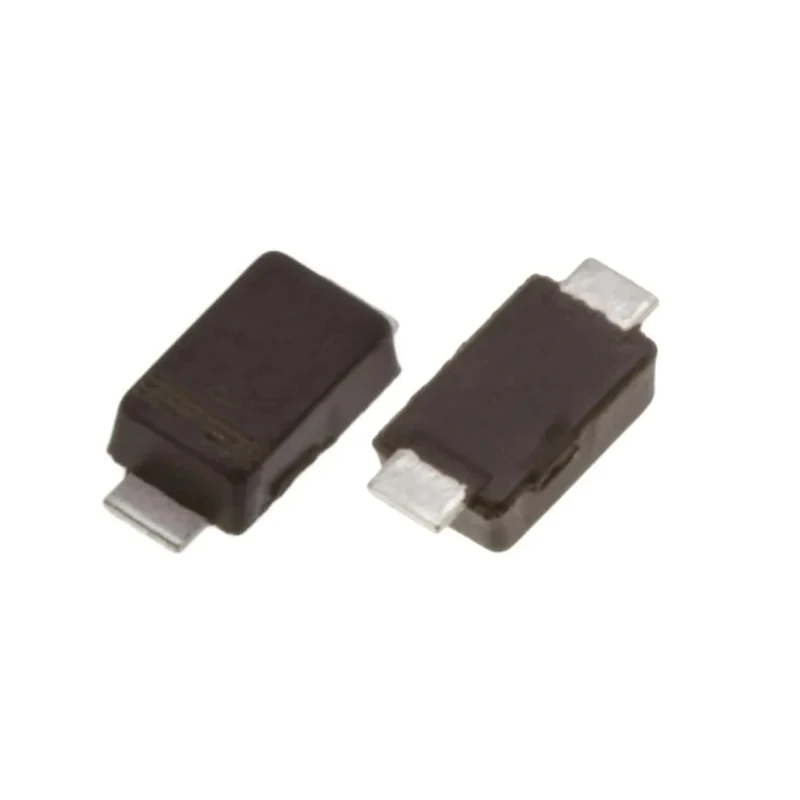

Vishay Switching Diode Single, 1 A, 2-Pin 600 V Surface Mount Fast Rectifier SMF RS1FLJ-M3/H

Vishay RS1FLJ-M3/H is a high-quality switching diode designed for general purpose rectification in power supplies, inverters, converters, and freewheeling diode applications. Rated at 1 ampere maximum forward current and 600 volts peak reverse repetitive voltage, it ensures reliable operation under demanding electrical environments.

This 2-pin surface mount device (SMF package) is optimized for automated assembly with matte tin plated leads that conform to soldering standards J-STD-002 and JESD. Its glass passivated pellet chip junction provides enhanced durability and stable performance over a wide operating temperature range from -55°C to 150°C.

The diode features a fast switching speed with a peak reverse recovery time of 500 nanoseconds, making it ideal for telecom, consumer electronics, and industrial power management circuits. It meets moisture sensitivity level 1 to guarantee quality in manufacturing processes.

The compact package size with length 3.9 mm, width 1.9 mm, and height 1.08 mm allows efficient PCB space management without compromising functionality. Matte tin plating also facilitates solderability for wave and reflow solder processes up to a maximum peak of 260 °C.

Single 1 A switching diode for general purpose use. 600 V peak reverse repetitive voltage rating. Surface mount fast rectifier in SMF package. Peak reverse recovery time of 500 ns for fast switching. Solderable per J-STD-002 and JESD standards.

Wide temperature operation from -55°C to 150°C. Moisture sensitivity level 1 compliant. Compact dimensions suitable for automated PCB assembly.

This diode suits diverse industrial, telecommunications, consumer electronics, and power conversion applications requiring dependable fast switching rectification. Explore comprehensive semiconductor components including Vishay Switching Diodes at EnvMart.
