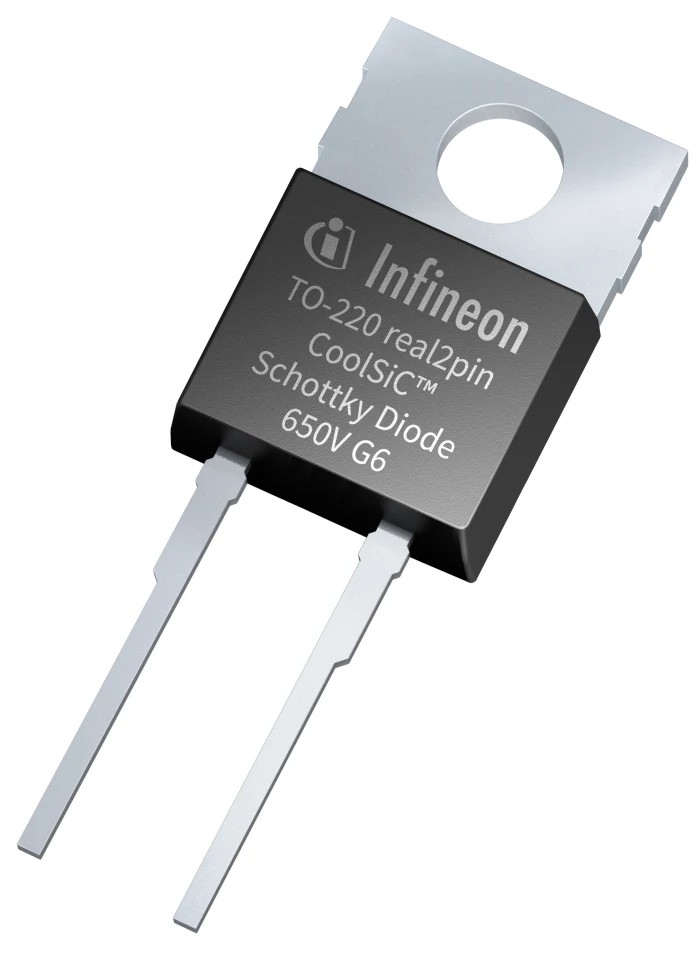

Infineon 650 V 16 A Schottky Diode Single 2-Pin Through Hole TO-220 IDH16G65C6XKSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 29.95mm |
| Length | 10.2mm |
| Model | IDH16G65C6XKSA1 |
| Width | 4.5mm |
| Mount Type | Through Hole |
| Series | 6th Generation CoolSiCTM |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | JEDEC (J-STD20 and JESD22) |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 16A |
| Peak Reverse Repetitive Voltage Vrrm | 650V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 123μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 82A |
| Maximum Forward Voltage Vf | 1.25V |
Key Features
- The diode features a single 2-pin configuration optimized for high efficiency.
- Operates across a wide temperature range from -55°C to 175°C.
- Incorporates 6th Generation CoolSiC technology ensuring low forward voltage and high surge current capability.
- Peak reverse current is as low as 123 microamperes, minimizing leakage losses.
- Complies with JEDEC J-STD20 and JESD22 standards.
- High dv/dt ruggedness suited for telecom, UPS, motor drives, and solar inverter applications.
- Compact dimensions of 10.2 mm length, 4.5 mm width, and 29.95 mm height.
Product Description
Infineon IDH16G65C6XKSA1 is a new generation 6th CoolSiC Schottky Diode designed to provide best-in-class performance with a maximum continuous forward current of 16 amperes and a peak reverse repetitive voltage of 650 volts. Housed in a TO-220 through hole package with a durable 2-pin single diode configuration, it offers excellent thermal and electrical characteristics suitable for demanding industrial and electronic applications.
This diode operates efficiently across a broad temperature spectrum from -55°C minimum to 175°C maximum, with a peak non-repetitive forward surge current rated at 82 amperes. The low forward voltage drop of 1.25 V and a peak reverse current of merely 123 microamperes contribute to enhanced energy efficiency and reduced thermal losses.
The IDH16G65C6XKSA1 complies with JEDEC standards (J-STD20 and JESD22), ensuring quality and reliability in semiconductor performance. This component is ideal for use in telecommunications switch mode power supplies, high-end server power supplies, uninterruptible power supplies (UPS), motor drives, solar inverter systems, PC power supplies, and lighting technology.
The 6th Generation CoolSiC technology enables temperature independent switching and high dv/dt ruggedness. Optimized thermal behavior reduces the need for complex heat sinking. Designed for high surge current handling, this diode ensures robust performance under transient loads.
Compact size provides easier board layout and assembly in high-density electronic designs. Through hole mount type supports conventional PCB assembly techniques. Non-automotive rated, making it suitable for general industrial and commercial applications.
Low leakage current enhances efficiency at high voltage operation.
This Infineon Schottky Diode answers the needs of engineers designing electronic circuits requiring ultra-fast switching and low power dissipation. It ensures longevity and operational stability in critical power conversion and management tasks.
Explore the Infineon semiconductor range for more advanced electronic components and reliable power control devices on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 16 amperes.
The peak reverse repetitive voltage for this diode is 650 volts.
It operates efficiently across a temperature range from -55°C to 175°C.
The peak non-repetitive forward surge current is rated at 82 amperes.
The maximum forward voltage drop for this model is 1.25 volts.
The dimensions of the TO-220 package are 10.2 mm in length, 4.5 mm in width, and 29.95 mm in height.
The peak reverse current is as low as 123 microamperes.
This diode uses a through hole mounting type, suitable for conventional PCB assembly techniques.
It complies with JEDEC standards J-STD20 and JESD22, ensuring quality and reliability.
This model is suitable for telecommunications, UPS, motor drives, solar inverters, and high-end server power supplies.
It incorporates 6th Generation CoolSiC technology, which ensures low forward voltage and high surge current capability.
This diode has a pin count of 2, configured as a single diode.
