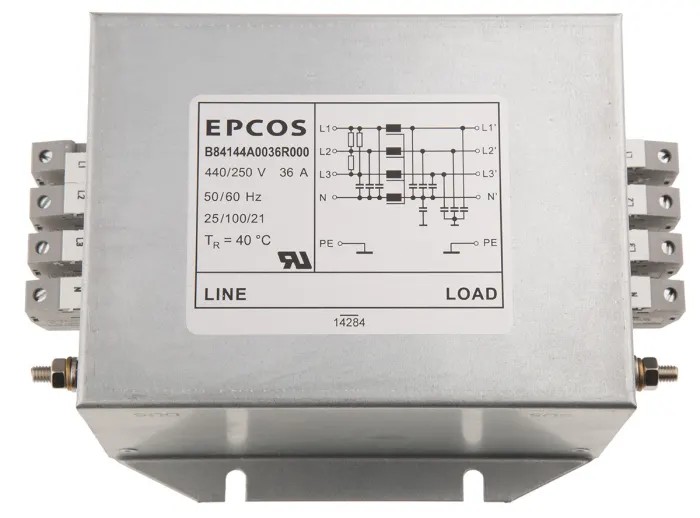

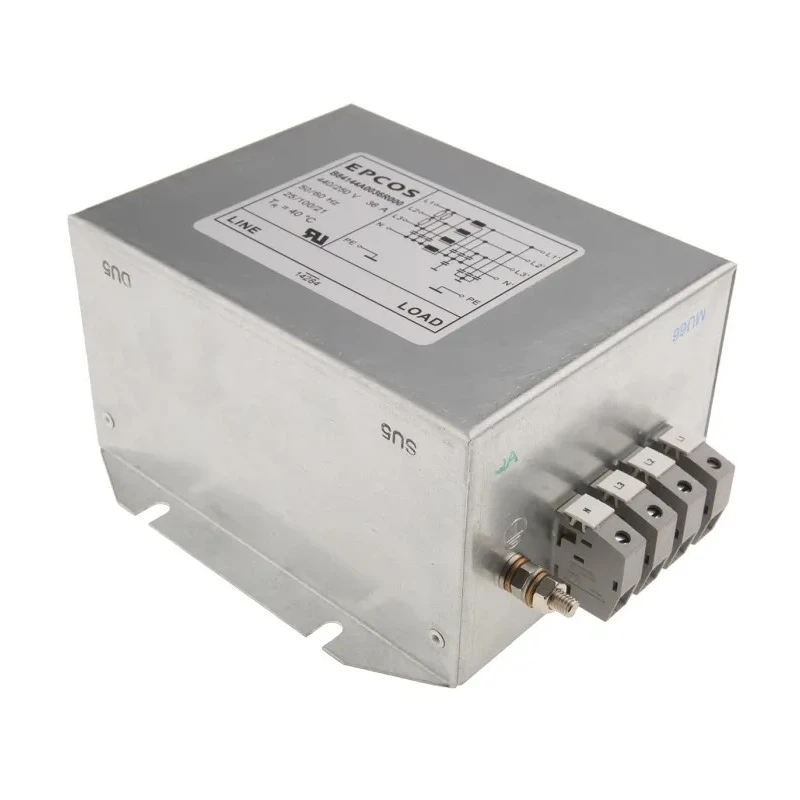

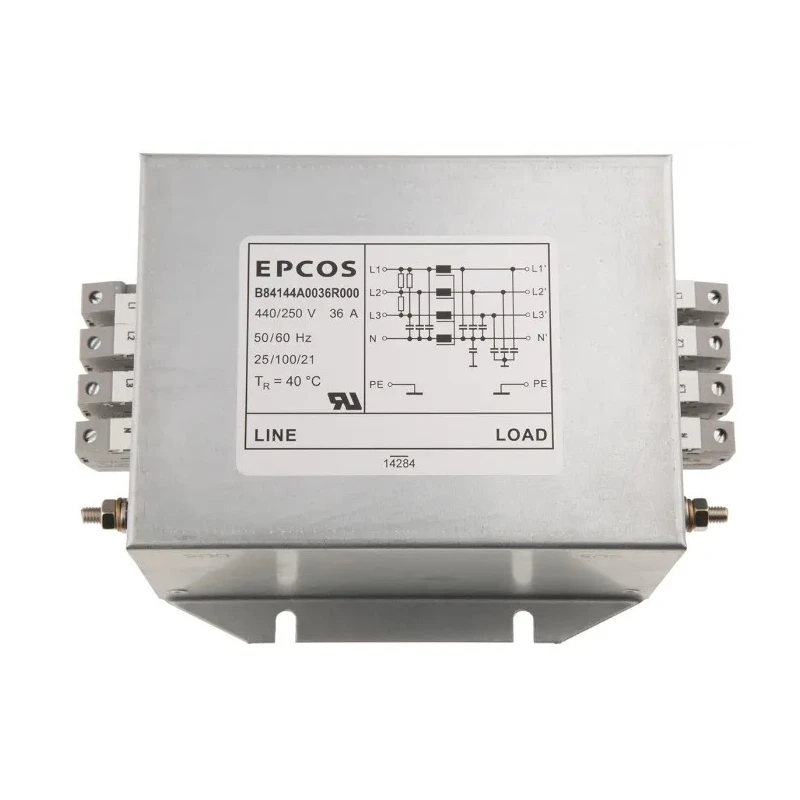

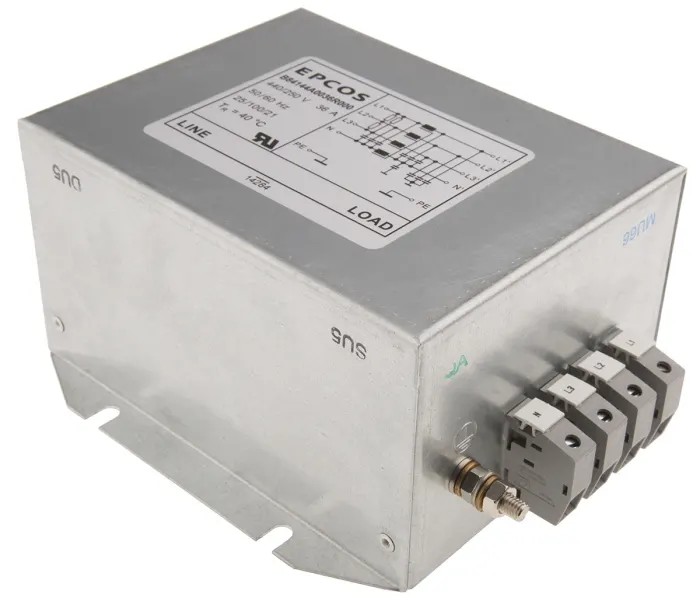

TDK Flange EMC Filter 3 Phase, 36 A, 440V AC, 50 Hz 60 Hz, Tab Termination B84144A0036R000

Free Delivery in India | Lowest Global Shipping Charges

TDK Flange EMC Filter 3 Phase, 36 A, 440V AC, 50 Hz 60 Hz, Tab Termination B84144A0036R000



Category EMC Filter Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	91mm
Length	156mm
Model	B84144A0036R000
Depth	216mm
Mount Type	Flange
Operating Frequency	50, 60Hz
Series	B84144A*R000
Maximum Operating Temperature	100°C
Number Of Stages	1
Resistance	3.5mΩ
Minimum Operating Temperature	-25°C
Maximum Current	36A
Number of Phases	3
Leakage Current	4.1mA
Maximum Voltage	440V ac
Standards/Approvals	UL1283
Termination Style	Tab
TDK, B84131 35 A 440V ac 50Hz, 60 Hz, Flange EMC Filter, Screw 3 PhaseBrand	TDK

Key Features

The filter features a flange mount type and tab termination style for easy installation.
It is optimized for reduced leakage current and high insertion loss, ensuring superior electromagnetic compatibility.
Constructed with a metal case with threaded bushes on end faces for RF-tight installation and space-saving design.
Suitable for converters, power electronics, UPS systems, wind farms, and industrial machinery such as textile and packaging machines.
Operating temperature range is from -25°C to 100°C, facilitating reliable performance under varying environmental conditions.
The filter complies with UL1283 and CSA 22.2 No.8 standards, ensuring safety and quality assurance.

Product Description

TDK B84144A0036R000 Flange EMC Filter is a robust power line filter designed for three-phase electrical systems. Rated for a maximum current of 36 A and a maximum voltage of 440V AC, it operates seamlessly at 50 Hz and 60 Hz frequencies.

This filter is constructed with a metal enclosure featuring threaded bushes at the end faces, facilitating RF-tight installation and saving installation space. The flange mounting and tab termination style offer convenient and secure installation options for various industrial setups.

Its high insertion loss and optimized low leakage current (4.1 mA) provide effective suppression of electromagnetic interference and noise, essential for sensitive power electronics and machinery.

Designed to withstand operating temperatures ranging from -25°C to 100°C, this EMC filter ensures consistent performance in diverse environmental conditions. Its resistance value of 3.5 milliohms supports efficient current flow with minimal loss.

Typical applications include converters, industrial power electronics, wind farms, uninterruptible power supplies (UPS), and equipment in textile and packaging industries. Product dimensions are 156 mm in length, 216 mm depth, and 91 mm height, allowing for compact integration into power electronics systems.

Certified to meet UL1283 and CSA 22.2 No.8 standards, this filter guarantees compliance with industry safety and performance requirements. The product is manufactured in China under the TDK B84144-A series.

The filter features a flange mount type and tab termination style for easy installation. It is optimized for reduced leakage current and high insertion loss, ensuring superior electromagnetic compatibility. Constructed with a metal case with threaded bushes on end faces for RF-tight installation and space-saving design.

Suitable for converters, power electronics, UPS systems, wind farms, and industrial machinery such as textile and packaging machines. Operating temperature range is from -25°C to 100°C, facilitating reliable performance under varying environmental conditions.

Dimensions measure 156 mm length, 216 mm depth, and 91 mm height for compact integration into equipment. The filter complies with UL1283 and CSA 22.2 No.8 standards, ensuring safety and quality assurance. Explore more in EMC Filter category for reliable power line filtering solutions at EnvMart.
